NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL
Continued from previous page.
Building mode: Set DIP 4 on the sound module to ON (see page 24).
- Up to 23 monitors and apartments with a Vesta2 monitor per installation.
(Mixed installations with telephones up to 23 elements).
- Up to 18 monitors and apartments with a Vesta7 monitor per installation.
(Mixed installations with telephones up to 18 elements).
- Up to 32 telephones and apartments with T562/Nhea telephones per installation.
(Audio door entry system installation audio only).
Building mode 'telephones only' (audio panel): Up to 128 telephones/apartments.
Set DIP 4 on the sound module to ON (see page 24).
Building mode 'router': Set DIP 4 on the sound module to ON (see page 24).
- Up to 23 monitors and apartments with a Vesta2 monitor per riser (RD-GB2/A module(s) required).
(Mixed installations with telephones up to 23 elements).
- Up to 18 monitors and apartments with a Vesta7 monitor per riser (RD-GB2/A module(s) required).
(Mixed installations with telephones up to 18 elements).
- Up to 32 telephones and apartments with T562/Nhea telephones per riser (RD-GB2/A module(s) required).
(Audio door entry system installation audio only).
Building mode 'gateway': Set DIP 4 on the sound module to ON (see page 24).
- Up to 23 monitors and apartments with a Vesta2 monitor per interior panel (RD-GB2/A module(s) required).
(Mixed installations with telephones up to 23 elements).
- Up to 18 monitors and apartments with a Vesta7 monitor per interior panel (RD-GB2/A module(s) required).
(Mixed installations with telephones up to 18 elements).
- Up to 32 telephones and apartments with T562/Nhea telephones per interior panel (RD-GB2/A module(s) required).
(Audio door entry system installation audio only).
( )
1 House mode. See the manual enclosed with the corresponding GB2 house kit.
( )
Building mode 'router'/'gateway'. See the manual enclosed with the RD-GB2/A module.
2
( )
Coded panel. See the manual enclosed with the N3301 GB2/N3401 GB2 module.
3
( )
Sound module configured with
*

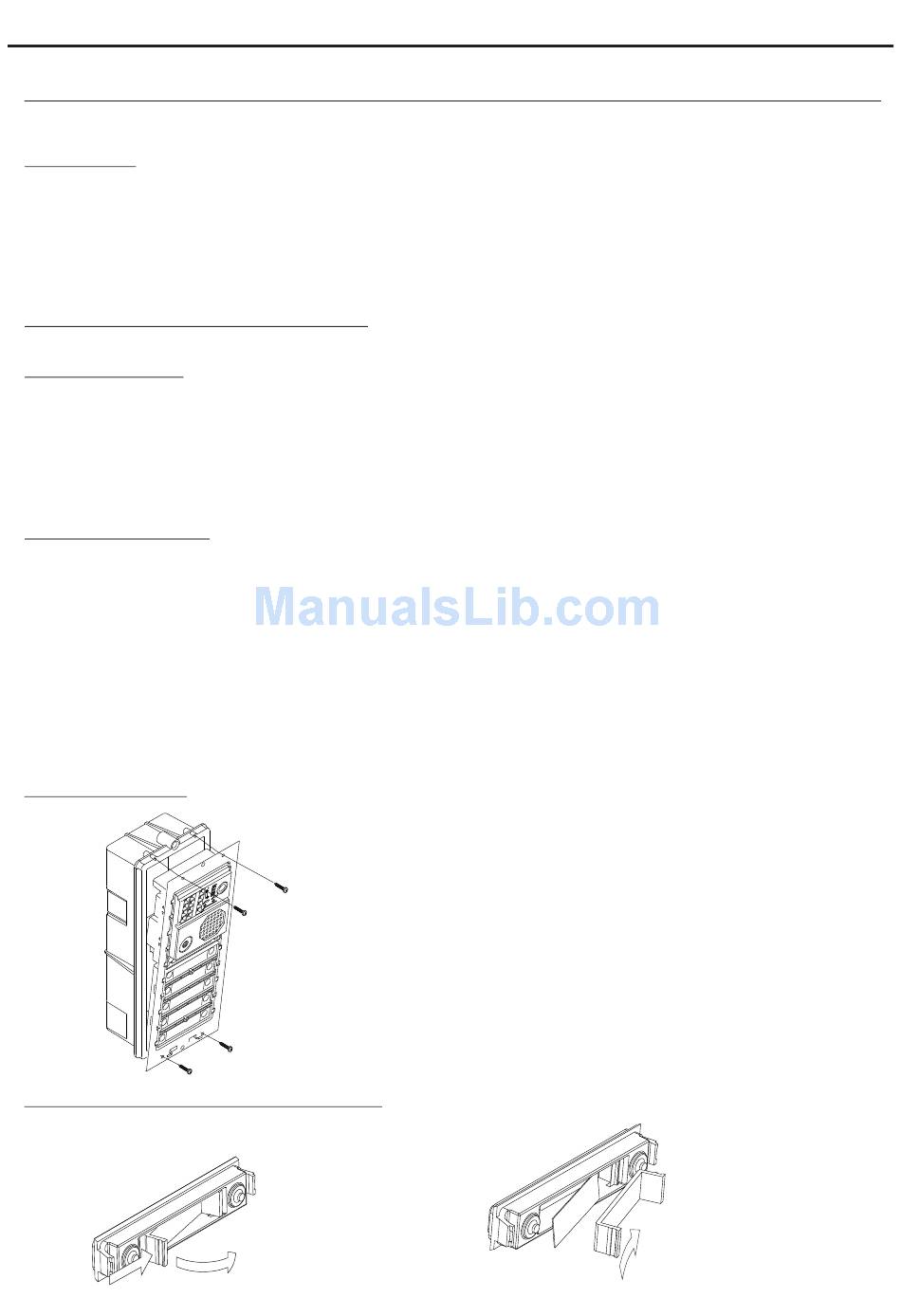

Closing the frame:
Inserting the button identification labels:
: house mode and operating mode 1.
default setting
Once the wiring and configuration work is done, fix
the frame to the embedding box using the screws
supplied.
Important: Before closing the door panel(s) make a
test call to any apartment to ensure that everything
works correctly.
Open the label
holder window.
Place the label
and close.
27
