NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

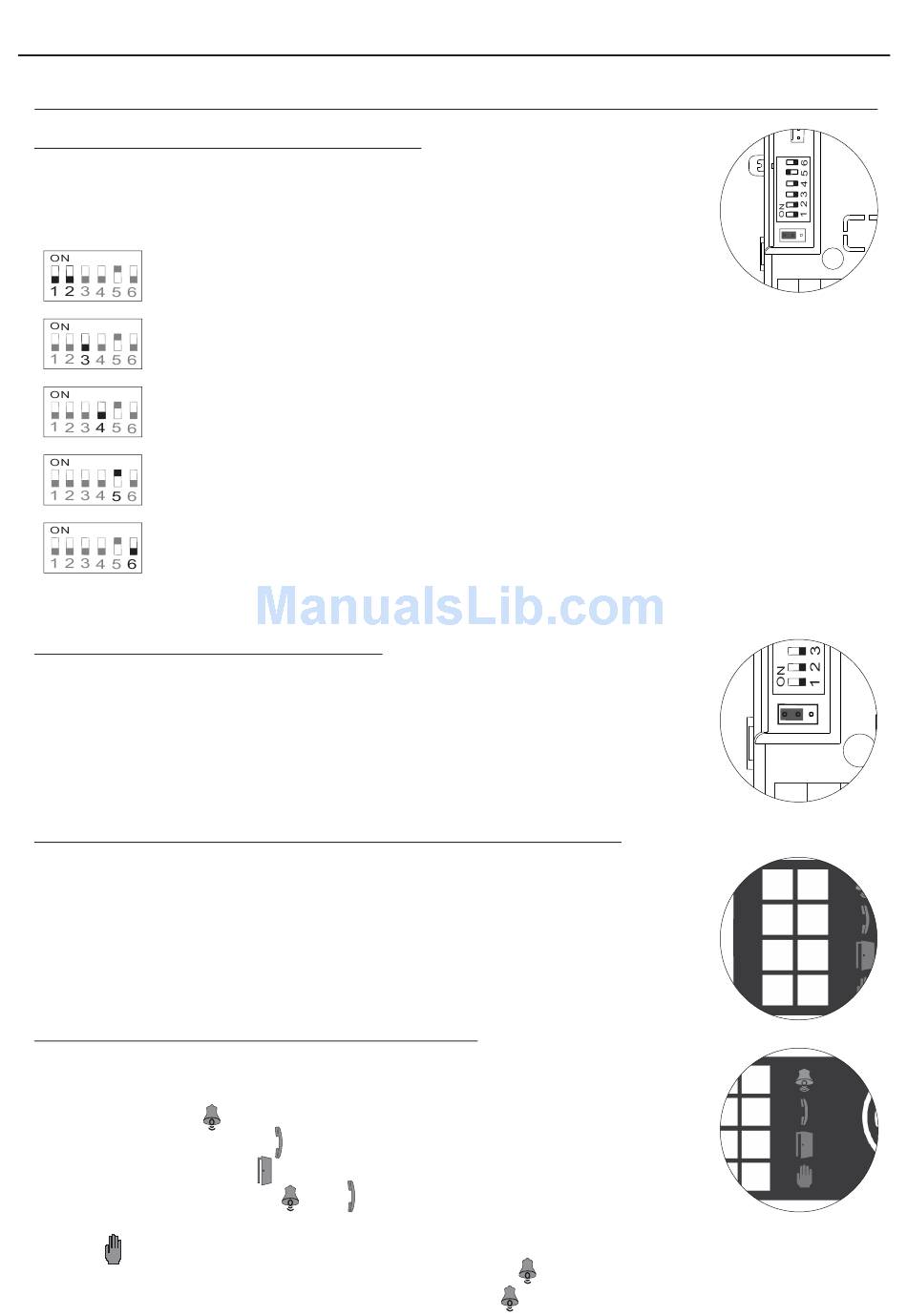

Description of the sound module DIP switch:
The DIP switch is located on the left side of the back of the module.
Door panel address:
( )
*
DIP switches: 1 and 2 OFF (address 1), 1 ON and 2 OFF (address 2), 1 OFF
and 2 ON (address 3), 1 and 2 ON (address 4).
( )
*
Leave in the OFF position for door panels with double button and set to ON for
door panels with single button.
( )
*
Leave in the OFF position for use with door panels in houses and set to ON for
use in apartment buildings.
( )
*
Leave in the ON position to set the door opening time to 5 seconds. Set to OFF
to set the door opening time to 1 second.
( )
Set to ON to configure: (see page 25-26)
*
Vocal synthesis language, Relay 1 and Relay 2 of the lock release will be NO or
NC, adjustment of vocal synthesis volume and the operating mode of the sound
module. Leave in the OFF position once configuration is complete.
( )
*
Factory setting.
Description of the configuration jumper:
Important: Do not change the factory default position of the configuration jumper.
( )
*
Factory setting.
Description of the door panel lighting LEDs for low light conditions:
The door panel lighting LEDs will turn on during a call if the door panel lighting at
that moment is low. This enables the user to view the person who has called
from the apartment monitor.

Description of the visual signals on the door panel:

Visual signals on the door panel for people with impaired hearing:
- While calling: LED '
- During communication: LED ' ' will illuminate during the communication process.
- During door release: LED '
- End of communication: LEDs '
- Calling at one door panel while another door panel is communicating (if there is more than one door panel):
LED ' ' will illuminate for 3 seconds.
- While calling and the monitor is in "Do not disturb" mode: LED '
- While calling (apartment with no monitor or telephone): LED '
' will illuminate during in call and in communication times.
' will illuminate during door release.
' and ' ' will turn off.
' will illuminate for 4 seconds.
' will illuminate for 4 seconds.
