NEXA MODULAR GB2 AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

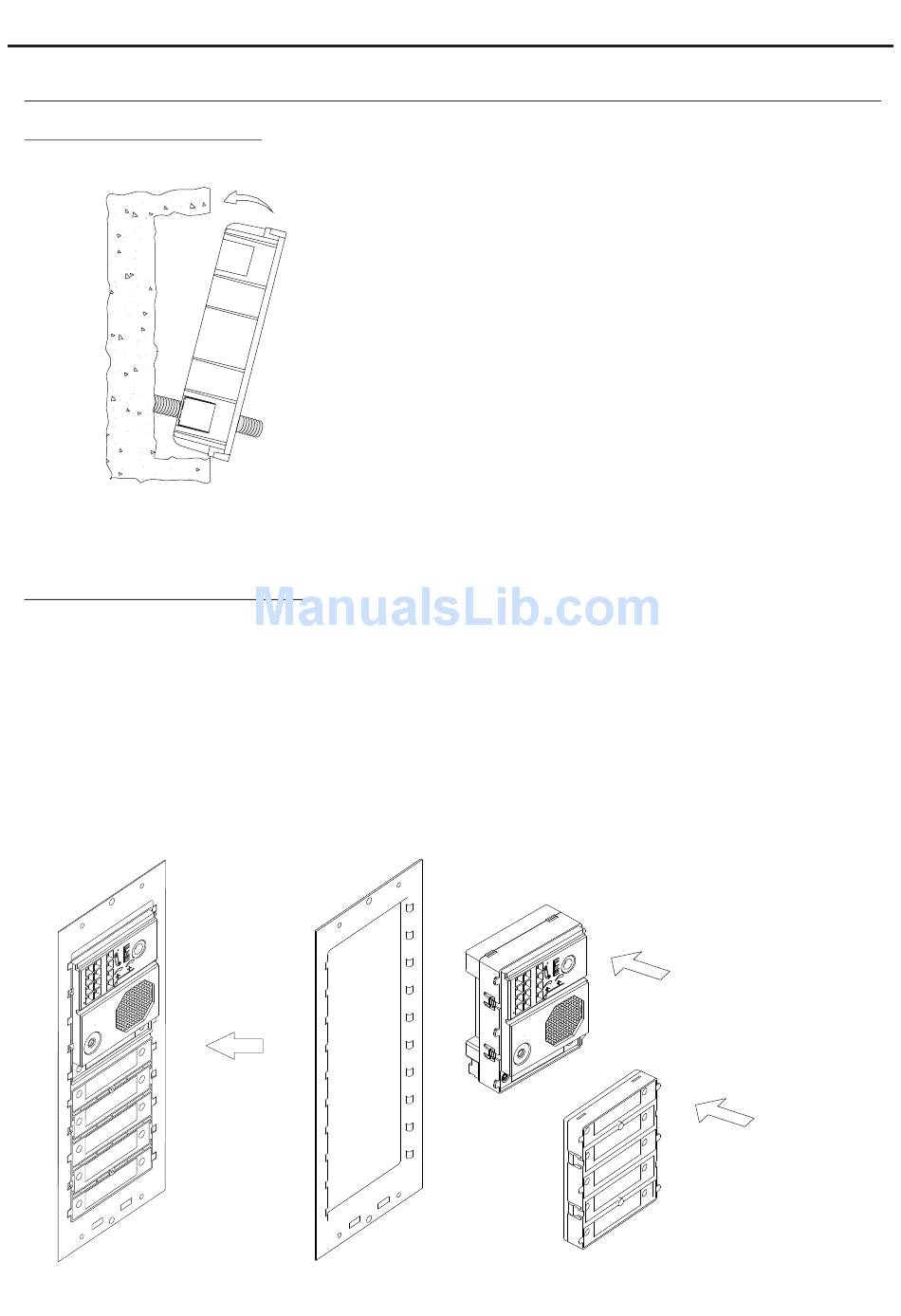

Fitting the embedding box:

Mounting the electronic modules:

Insert the sound module into the top of the frame module.
Line up the clips on the sound module with the respective housings on the frame module and then
press gently until correctly positioned.
If there is a button module, repeat the above process, positioning it below the sound module, as shown
in the drawing.
Frame
Pass the cable through the hole made in the
embedding box. Embed the box and ensure
that it is level and flush. Once the embedding
box is positioned, remove the protective stickers
from the door panel's fixing holes.
Frame
8
EL632/GB2A
EL642/GB2A
sound modules
EL610D
button module
