MOUNTING

Physical Mounting

• Horizontal mounting (as shown in Figure 4) is strongly recommended, to achieve maximum heat dissipation and meet the operating tem-
perature upper limit. Any other mounting orientation reduces this upper limit.
• Mounting on a 35mm wide DIN rail is recommended. The controller's unit base has a molded DIN rail slot and locking clip, as do option
modules. DIN rail mounting ensures alignment of the connectors between all devices.
• Up to four option modules are supported. See Figure 4 for mounting dimensions.
2.17" (55)
4.33" (110)
14

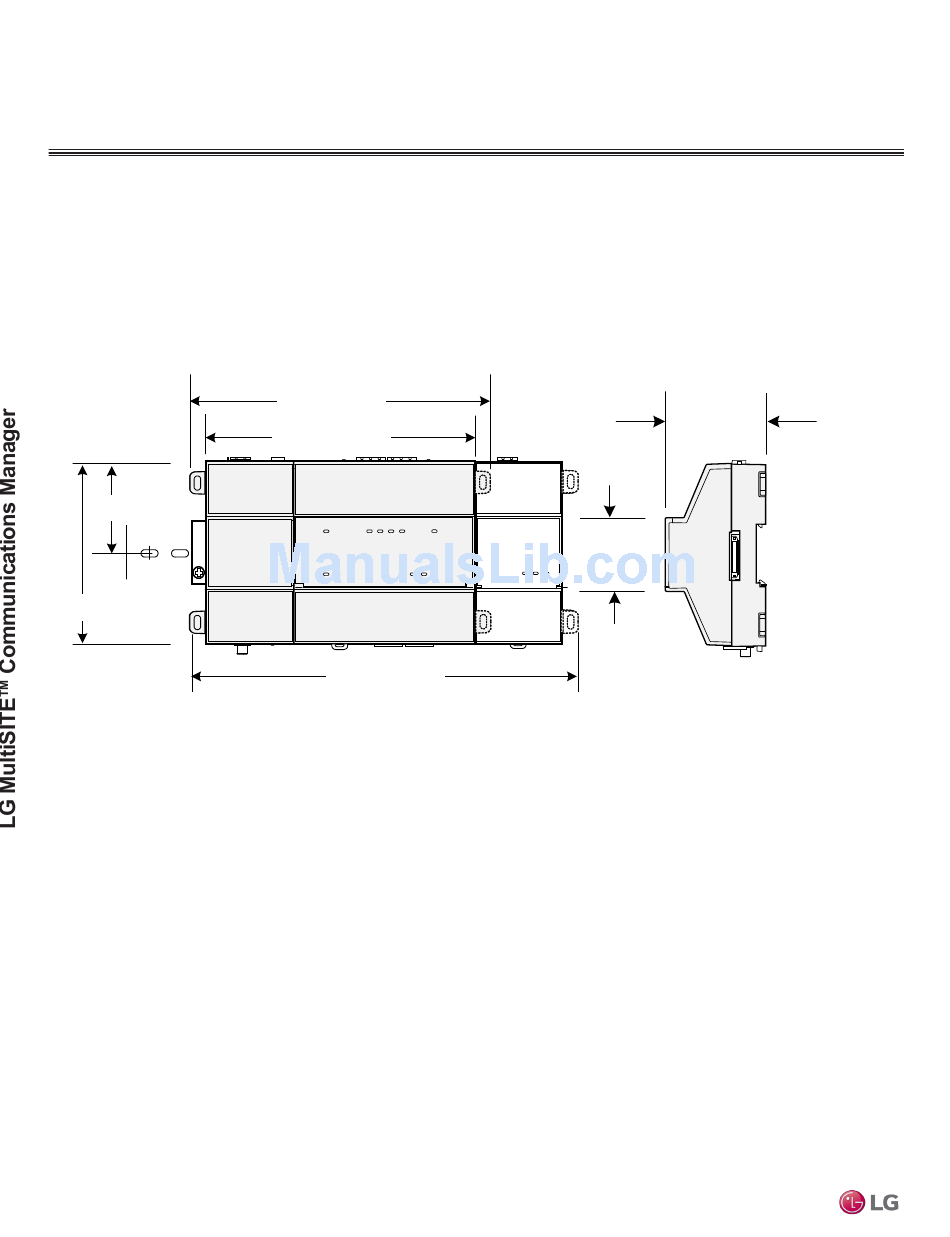

Figure 4: Horizontal mounting.
7.05" (179)
6.38" (162)
9.53" (242)
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
LON
2.13" (54)
2.26"
(57.5)
