Mounting on DIN Rail

Prerequisites
Following are the prerequisites for mounting on DIN rail:
• The 35mm DIN rail must be securely mounted, with at least two screws near the rail ends.
• The microSD card must be installed in the controller. See "Inserting or Removing the MicroSD Card".

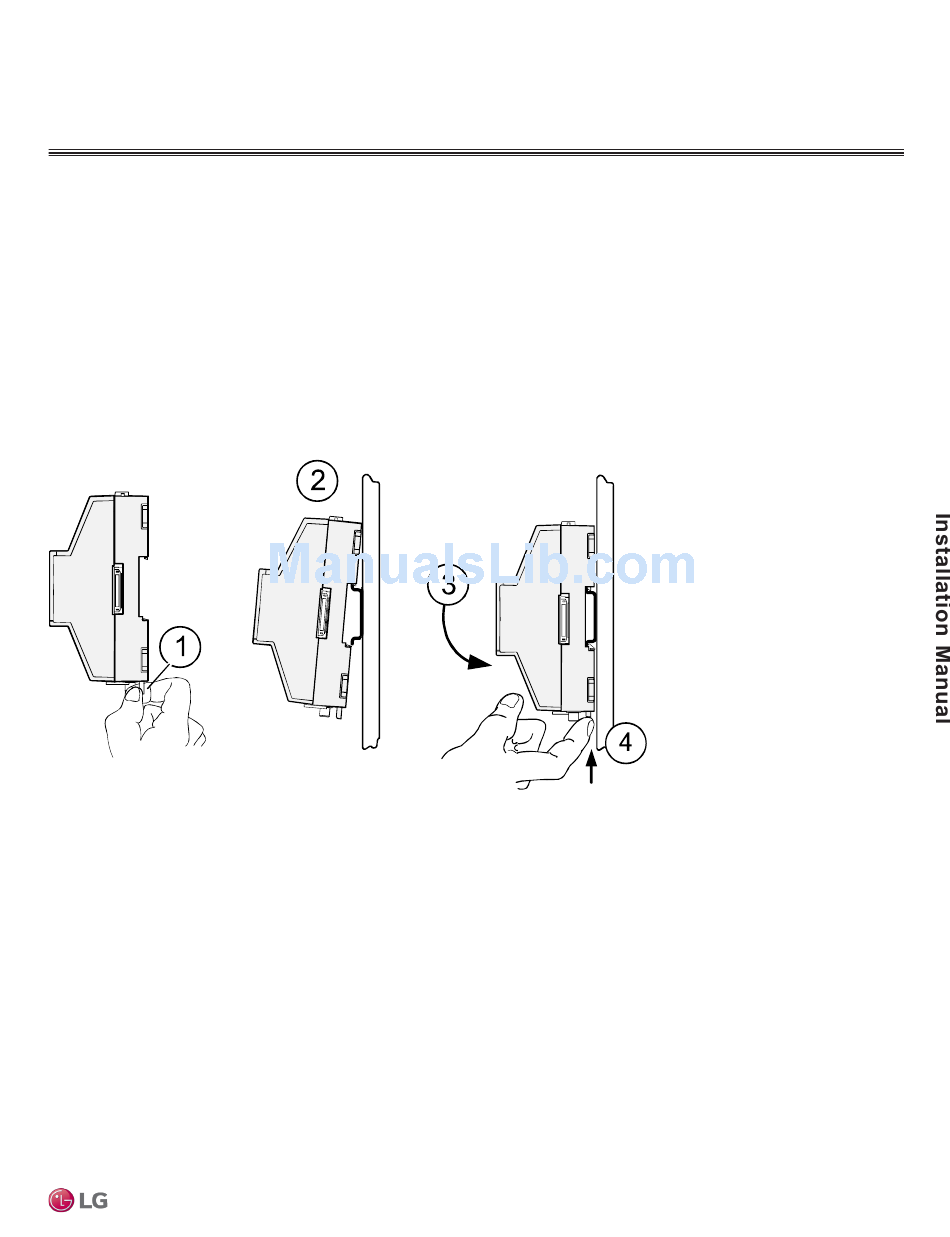

1. Pull the controller's locking clip down.
2. Tilt the controller to hook over the DIN rail.
3. Push down and in on the unit, fastening to the rail.
4. Push the locking clip up to secure.
Figure 5: Mounting on DIN rail.
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
