2. Installation
2. Installation
2.1. Panel Mounting
Optional panel mounting brackets are available for the unit. To install the top mounting bracket,
remove the two Phillips pan-head bracket mounting screws from the top of the unit. Position the
mounting bracket at the top of the unit, aligning the holes in the bracket with the threaded holes in
the unit. Secure the top bracket to the unit with the two Phillips pan-head bracket mounting screws
removed earlier. Repeat this procedure for the bottom mounting bracket.
Mount the unit to the panel with #6 mounting screws (not provided) of sufficient length to support
the unit on the panel material. Use wall anchors (not supplied) where required.
Mounting"
provides dimensions and details for panel mounting.

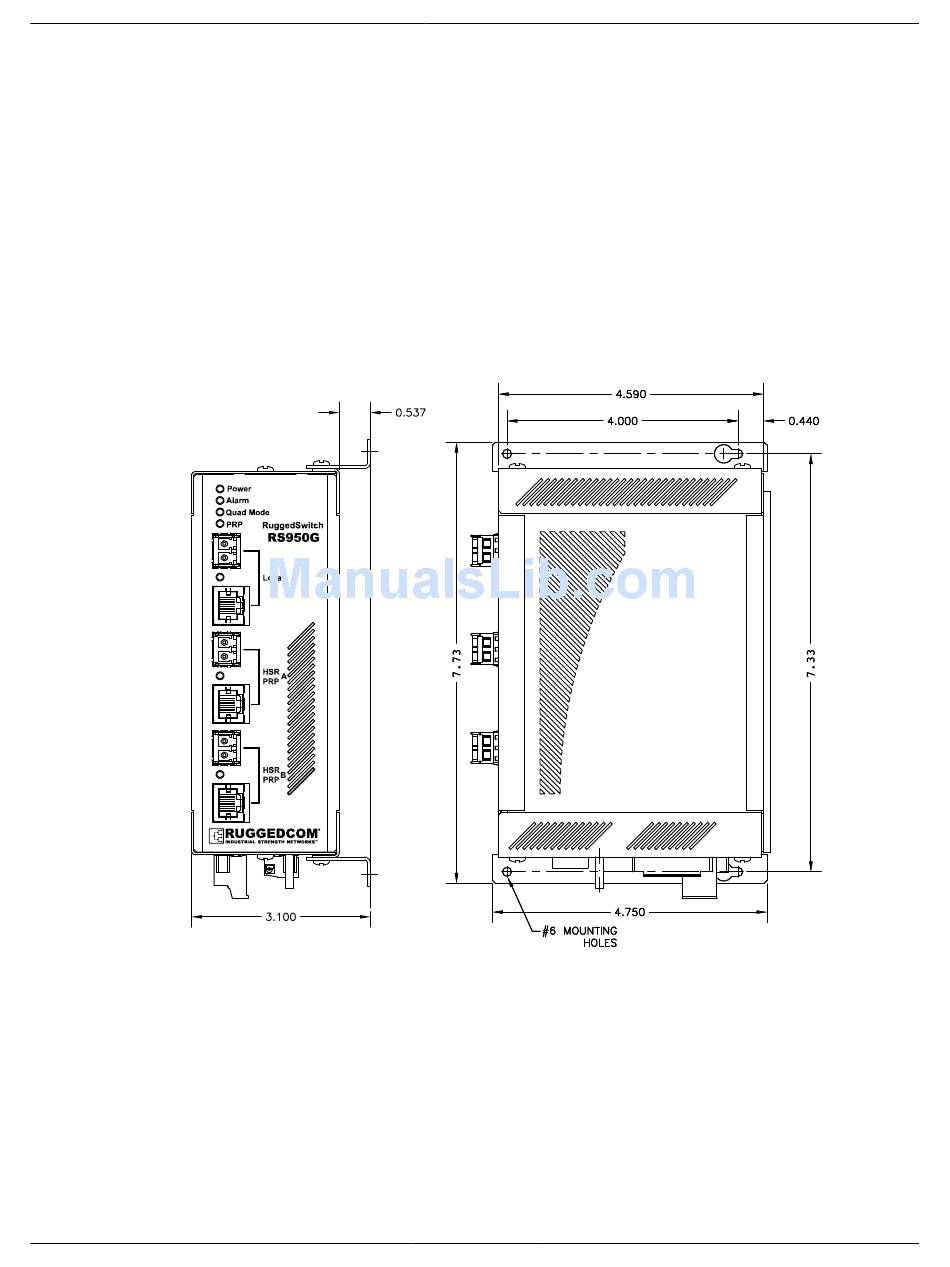

Figure 2.1. Panel Mounting
RuggedCom® RuggedSwitch™
14
RS950G Installation Guide Rev 100
Figure 2.1, "Panel
