2 Installation
2.1 Rack Mounting
19" Rack Mounting
Step 1: Attach 19"
Mounting
mounting brackets
Brackets
using # 6 - 32 screws.
Step 2: Mount to
19" Rack using # 10 - 32
screws.

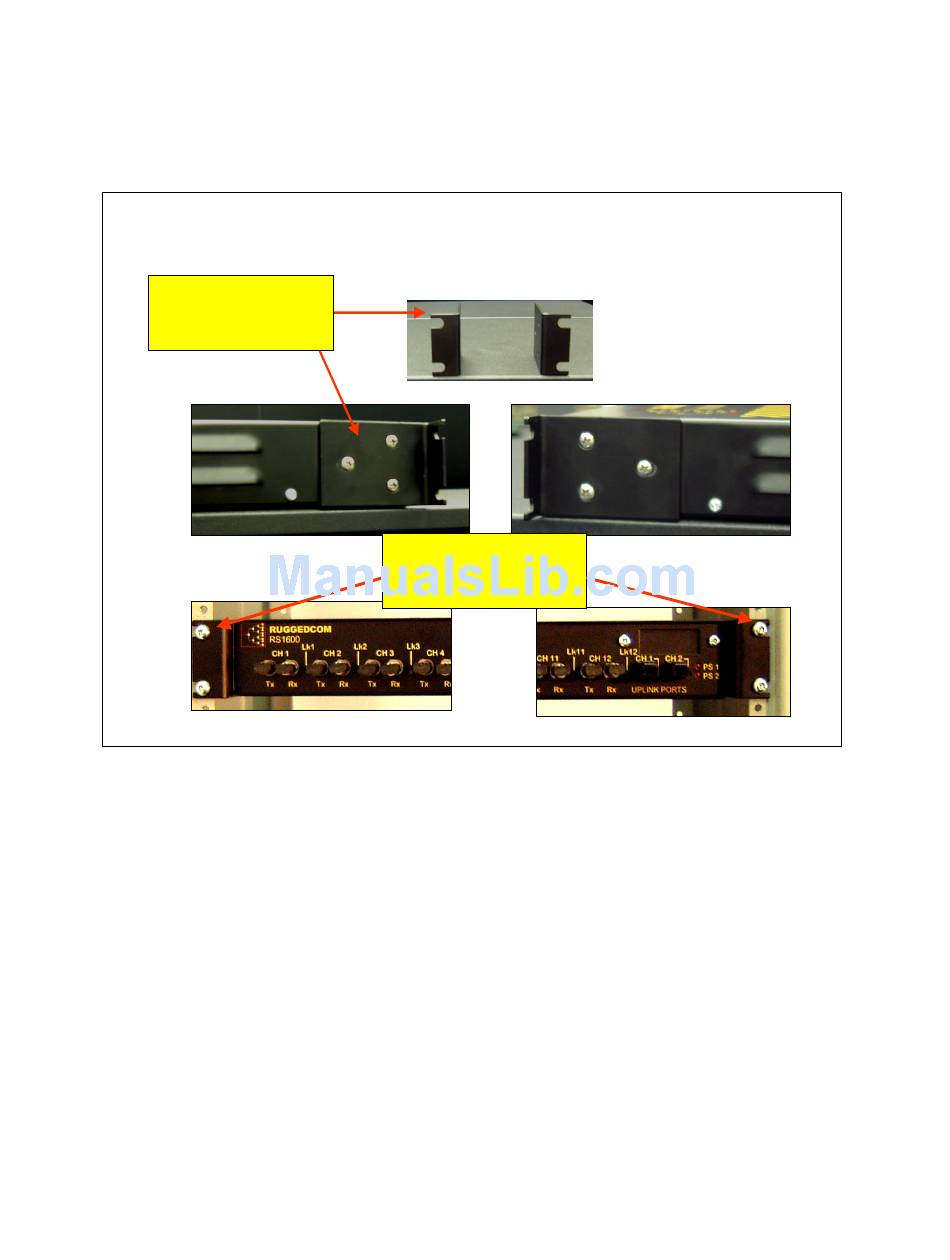

Fig. 2.1.1 RS1600 Family 19" Rack Mounting
NOTE: Since heat within RS1600 products is channeled to the enclosure, it is recommended that
1 rack unit of space (1.75") be kept unpopulated and free of equipment above each RS1600 series
product to allow for a small amount of convectional airflow. Although forced airflow is not
necessary, any increase in airflow will result in a reduction of ambient temperature that will improve
long-term reliability of all equipment mounted within the rack space.
10
©
2008 RuggedCom Inc. All rights reserved
Rev104
