1. Product Overview

1.1.2.2. HSR Inter-Ring Communication

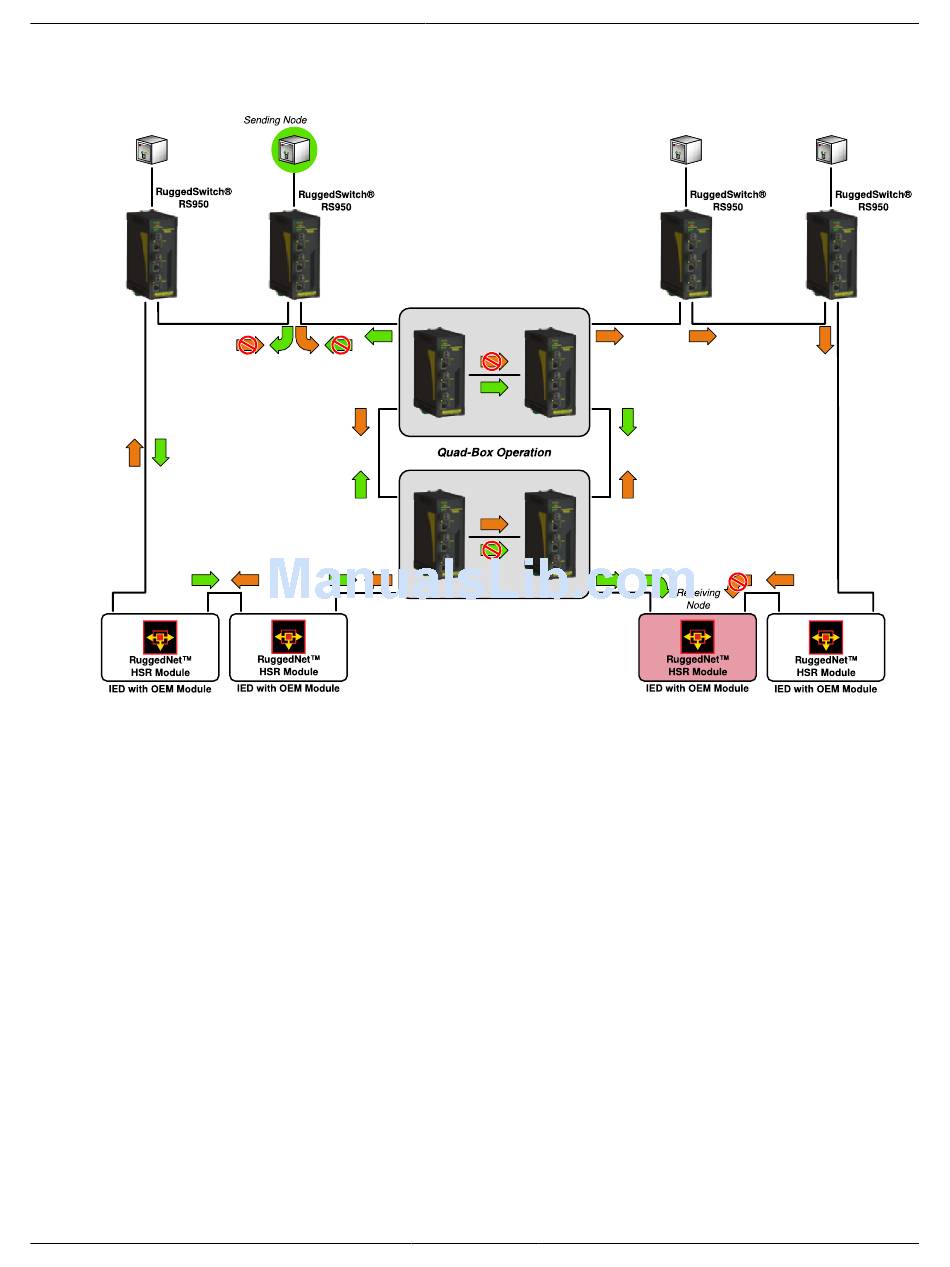

Figure 1.2. Typical HSR Inter-Ring Application

Unlike other Ethernet ring protocols, HSR is not limited to single ring architecture. In "Quadbox"

mode, multiple inter-ring communications can be set up to increase the scale of the network and

maintain complete redundancy. This example shows the use of both RS950G devices and the

RuggedNet™ OEM module.

RuggedCom® RuggedSwitch™

RS950G Installation Guide Rev 100
