Page 1: Installation Guide
RuggedSwitch™ M2200 MIL-STD 9-Port Modular Managed Gigabit Ethernet Switch Installation Guide www.RuggedCom.com RuggedCom Inc. I 30 Whitmore Road, Woodbridge, Ontario, Canada L4L 7Z4 Tel: 905-856-5288 I Fax: 905-856-1995 I Toll Free: 1-888-264-0006... - Page 2 This product contains no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could void the user’s authority to operate the equipment.
-
Page 3: Table Of Contents
Networking Standards Supported ..............24 Twisted-Pair Port Specifications............... 24 Fiber Optical Specifications................25 5.5.1 Gigabit Ethernet (1000Mbps) Modules ............ 25 Type Test Specifications................... 26 Operating Environment..................27 Mechanical Specifications ................28 Agency Approvals ........................29 Warranty..........................29 © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 4: Table Of Figures
Table 1: LED Display – Device status LED behavior definition ............9 Table 2: LED Display Description....................10 Table 3: M2200 Power terminal block connection description............13 Table 4: RS232 over RJ45 console cable pin-out ................19 Table 5: Cabling categories and 1000BaseTx compliance defined..........22 © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 5: Product Overview

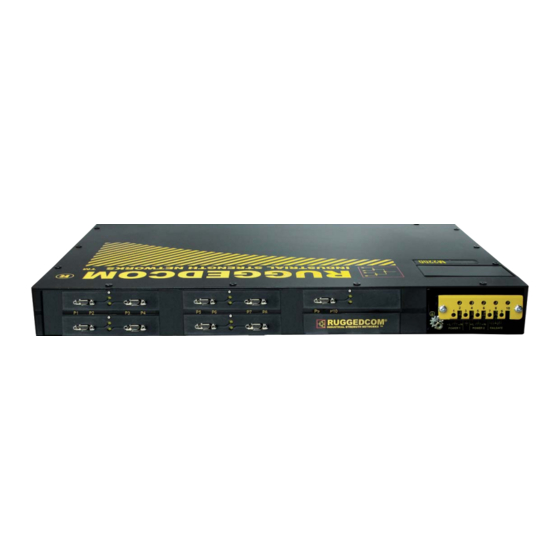

3 Product Overview 3.1 Functional Overview & Feature Highlights The RuggedSwitch M2200 is a MIL-STD hardened, fully managed, modular Gigabit Ethernet switch specifically designed to operate reliably in harsh environments. The M2200’s superior ruggedized hardware design coupled with the embedded Rugged Operating System (ROS™) - Page 6 • Port configuration, status, statistics, mirroring, security • Loss of link management on fiber ports • Web-based, Telnet, CLI management interfaces • SNMP v2 and RMON • Rich set of diagnostics with logging and alarms © 2008 RuggedCom Inc. All rights reserved Rev105...
-
Page 7: Ethernet Panel Description
LED will be solid for ports with link, and will blink for activity. The diagram in Figure 1 highlights the port and the associated link/activity LED. Figure 1: Ethernet panel LED description © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 8: Fiber Optical Transceiver Orientation And Connection
If modules are populated on the bottom row of the device, the transceiver orientation will be reversed (i.e. RX and TX will be reversed). Figure 2: 1000BaseX LC connector © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 9: Display Panel Description
Power supply failure No power supply installed Alarm exist – login to web management interface to Alarm determine alarm code No alarms exist Table 1: LED Display – Device status LED behavior definition © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 10: Table 2: Led Display Description
Green (Blinking) Activity No link Green (Solid) Full-Duplex operation Duplex Orange (Solid) Half-Duplex operation No link Green (Blinking) 1000Mb/s Green (Solid) 100Mb/s Speed Orange (Solid) 10Mb/s No link Table 2: LED Display Description © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 11: Installation
The M2000 series products can be ordered with Panel mount chassis. This option involves the use of the panel adapters to be mounted on each side of the chassis enclosure. See Figure 4 for a Panel mount diagram. Figure 4: M2200 Panel Mounting Diagram © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 12: Power Supply Wiring And Grounding
Block has Philips screws with a compression plate allowing either bare wire connections or crimped terminal lugs. RuggedCom recommend the use of #6 size ring lugs to ensure secure, reliable connections under severe shock or vibration. The terminal block has a safety cover which must be removed via two Phillips screws before connecting any wires. -
Page 13: Table 3: M2200 Power Terminal Block Connection Description
AC. Relay NO Contact Normally open, failsafe relay contact. Relay Common Failsafe relay common contact. Relay NC Contact Normally closed, failsafe relay contact. Table 3: M2200 Power terminal block connection description © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 14: Ac Power Supply Wiring Examples
2. Equipment must be installed according to the applicable country wiring codes. 3. When equipped with two HI voltage power supplies, independent AC sources can be used to power the product for greater redundancy. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 15: Dc Power Supply Wiring Examples
2. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies. 3. For dual DC power supplies, Separate circuit breakers must be installed and separately identified. 4. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 16: Dual Power Supplies - Dc And Ac Inputs
3. A circuit breaker is not required for 48 or 24VDC rated power supplies. 4. Separate circuit breakers must be installed and separately identified. 5. Equipment must be installed according to the applicable country wiring codes. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 17: Dielectric Strength (Hipot) Testing
HIPOT testing. Figure 9 shows the proper HIPOT test connections and should be followed to avoid damage to the device. Figure 9: Dielectric Strength (HIPOT) Testing © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 18: Failsafe Alarm Relay Wiring And Specifications
The proper relay connections are shown in Figure 10. One common application for this output is to signal an alarm if a power failure or removal of control power occurs. Figure 10: Failsafe Alarm Relay Wiring © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 19: Console Port Wiring
Figure 11: Console port location on display board Figure 12: M2200 Console cable For user reference, the console cable pin-out is show in Table 5. RuggedCom RS232 over RJ45 pin-out specification Signal Name (PC is DTE) DB9- Female RJ45 Male DCD –... -
Page 20: Twisted-Pair Data Ports
1. For 10/100Base-TX ports: pin2 and pin7 are internally connected, pin4 and pin8 are internally connected on PCB board. 2. For 10/100/1000Base-TX ports: pin3 and pin8 are internally connected on PCB board. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 21: Protection On Twisted-Pair Data Ports
4.6.2 Protection on Twisted-Pair Data Ports RuggedCom does not recommend the use of CAT-5 cabling of any length for critical real-time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance. -
Page 22: Gigabit Ethernet 1000Base-Tx Cabling Recommendations
Power and data cables should intersect at 90° angles when necessary to reduce inductive coupling. • Shielded/screened cabling can optionally be used. The cable shield should be grounded at one single point to avoid the generation of ground loops. © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 23: Technical Specifications
4. For continued protection against risk of fire, replace only with same type and rating of fuse. 5.2 Failsafe Relay Specifications Parameter Value (Resistive Load) Max Switching Voltage 240VAC, 125VDC Rated Switching Current 2A @ 240VAC 0.15A @ 125VDC, 2A @ 30VDC Max Switching Capacity 150W, 500VA © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 24: Networking Standards Supported
Parameter Specification Notes Speed 10/100 Mbps Auto-negotiating Duplex FDX / HDX Auto-negotiating Cable-Type > Category 5 Shielded/Unshielded Wiring Standard TIA/EIA T568A/B Auto-Crossover, Auto-polarity Max Distance 100m Connector RJ45 Isolation 1.5kV RMS 1-minute © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 25: Fiber Optical Specifications
Gigabit Ethernet (1000Mbps). 5.5.1 Gigabit Ethernet (1000Mbps) Modules For maximum flexibility RuggedCom Inc. offers a number of different transceiver choices for Gigabit fiber optical communications. The following table details fiber optic specifications based on the 2-port modules or pluggable transceivers selected at time of ordering. -
Page 26: Type Test Specifications
Temperature (Dry Cold) -40°C Test Ad: 16 hrs @ -40°C IEC 60068-2-2 Temperature (Dry Heat) 85°C Test Bd: 16 hrs @ 85°C IEC 60068-2-30 Humidity non-condensing Test Db: 6 cycles, 55°C, 95% Humidity © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 27: Operating Environment
Ambient Temperature as Ambient Operating measured from a 30cm -40 to 85°C Temperature radius surrounding the center of the enclosure. Ambient Relative Humidity 5% to 95% Non-condensing Ambient Storage -40 to 85°C Temperature © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 28: Mechanical Specifications
(Length x Width x Height) with mounting brackets installed (482.6) x (368.3) x (51.3) mm Weight 11.2 lb (5 Kg) with mounting brackets installed Enclosure 18awg galvanized steel Figure 14: Mechanical Dimensions © 2008 RuggedCom Inc. All rights reserved Rev105... -
Page 29: Agency Approvals
IEC/EN EN60825-1:1994 + A11:1996 + A2:2001 Passed 7 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com/ or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
