UM2248
9

Hardware layout and configuration

The STM32L4R9I-EVAL board is designed around STM32L4R9AII6 target microcontroller in
UFBGA 169-pin package.
components.
Figure 3,
STM32L4R9I-EVAL board top view with round DSI display, top view with TFT LCD, and
bottom view.
Figure 1
Figure 2 shows the location of main components on the evaluation board.
Figure 4, and Figure 5

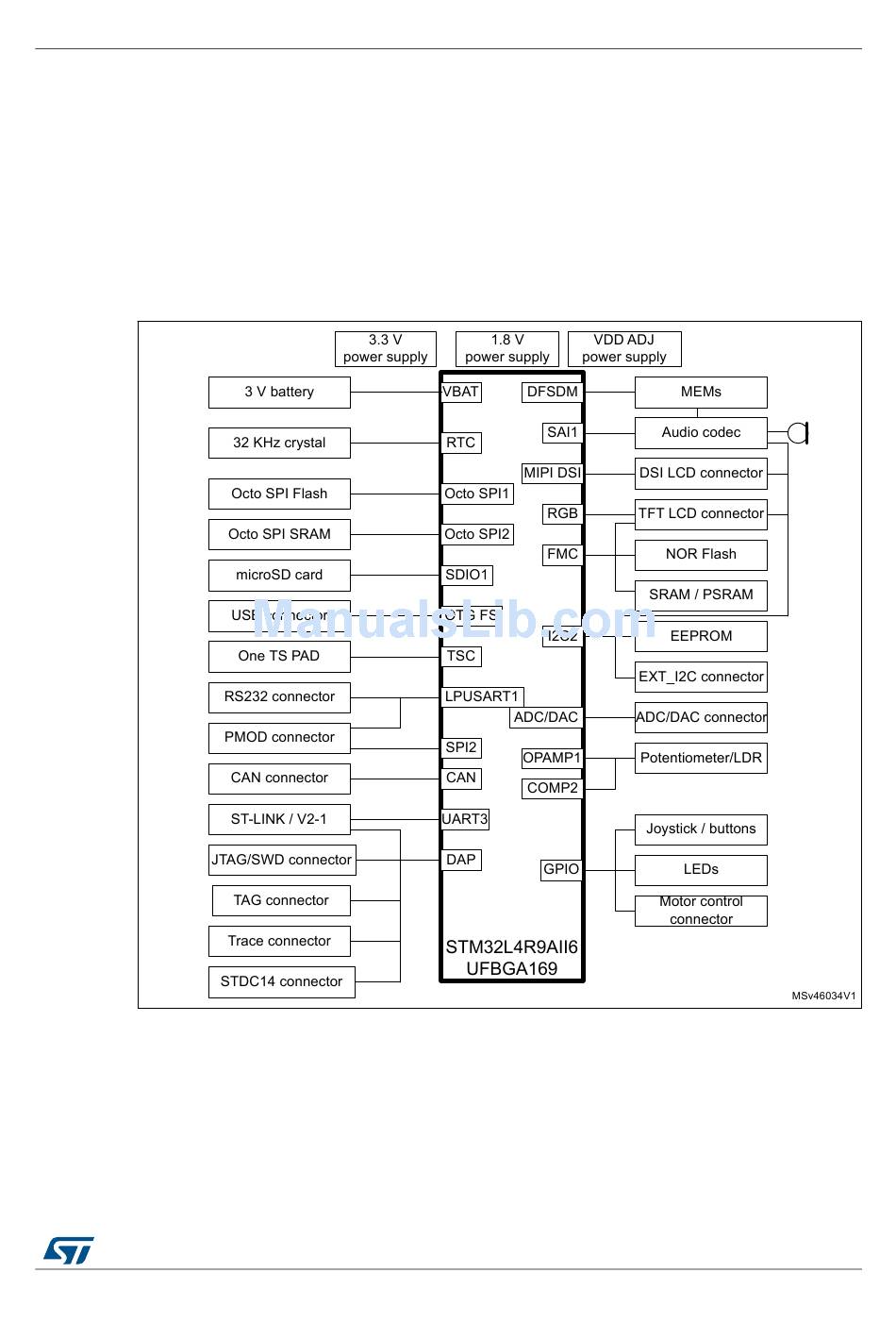

Figure 1. STM32L4R9I-EVAL hardware block diagram

DocID030791 Rev 2
illustrates STM32L4R9AII6 connections with peripheral
are the three images showing the
Hardware layout and configuration
11/87
86
