E-100BTX-FX-05
The Media Converters with the "HT" extension in the part number can be put into
service in an extended termperature environment from -25°C to 65°C (-13°F to
149°F).
Standard Temperature Models:
Part Number Port One - Copper
100Base-TX
E-100BTX-FX-05(HT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SCHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SMHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LHHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XLHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LWHT) RJ-45
100 m (328 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the physical
characteristics of the network installation.)
Optional Accessories (sold separately)
Part Number Description
E-MCR-03 12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBL Optional Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-
Input; Output: 12.6VDC, 1.0 A
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-
Input; Output: 12.6VDC, 1.0 A
2 Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm singlemode
20 km (12.4 miles)*
SC, 1310 nm singlemode
40 km (24.9 miles)*
SC, 1310 nm singlemode
60 km (37.3 miles)*
SC, 1550 nm singlemode
80 km (49.7 miles)*

INSTALLATION

CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the 4-position switch and jumper. Failure to observe
this caution could result in damage to, and failure of, the Media Converter.

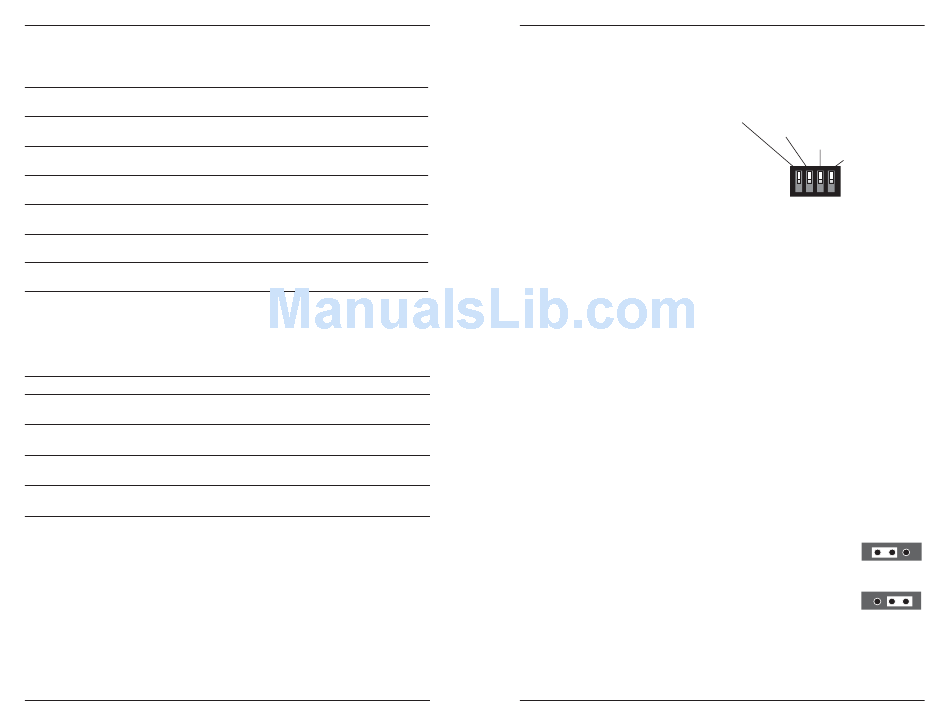

4-Position Switch
The 4-position switch is located on
the side of the Media Converter.
Use a small flatblade screwdriver or
a similar device to set the recessed
switches. Refer to the drawing to
the right for the locations of the four
individual switches.
1. Auto-Negotiation
UP Enables Autonegotiation for the copper connection (see page 5).
DOWN Disables Autonegotiation for the copper connection.
2. Pause Control Frame
UP Enables Pause Control (see page 6).
DOWN Disables Pause Control.
3. Link Pass-Through
UP Enables Link Pass-Through (see page 6).
DOWN Disables Link Pass-Through.
4. Far-End Fault
UP Enables Far-End Fault (see page 6).
DOWN Disables Far-End Fault.
AutoCross™ Jumper
The AutoCross™ feature allows either straight-through (MDI) or crossover
(MDI-X) cables to be used when connecting to devices such as hubs,
transceivers, or network interface cards (NICs). AutoCross™ determines the
characteristics of the cable connection and automatically configures the unit
to link up, regardless of the cable configuration.
The jumper is located on the circuit board inside the Media Converter
housing. To set the jumper:
1. Using a small screwdriver, remove the four (4)
screws that secure the cover and carefully remove
the cover from the Media Converter.
2. Locate the J3 jumper on the circuit board and using
small needle-nosed pliers or similar device, move the
jumper to the desired position. (Refer to the drawing
to the right.)
3. Carefully replace the cover on the Media Converter
and replace the four (4) screws that secure the cover
to the Media Converter.
techsupport@transition.com -- Select the "Transition Now" Link for a Live Web Chat
Auto-Negotiation (UP=Enabled)
Pause (UP=ON)
Link Pass-Through (UP=ON)
Far End Fault (UP=ON)
1 2 3 4
J 3
Enable AutoCross
J 3
Disable AutoCross
