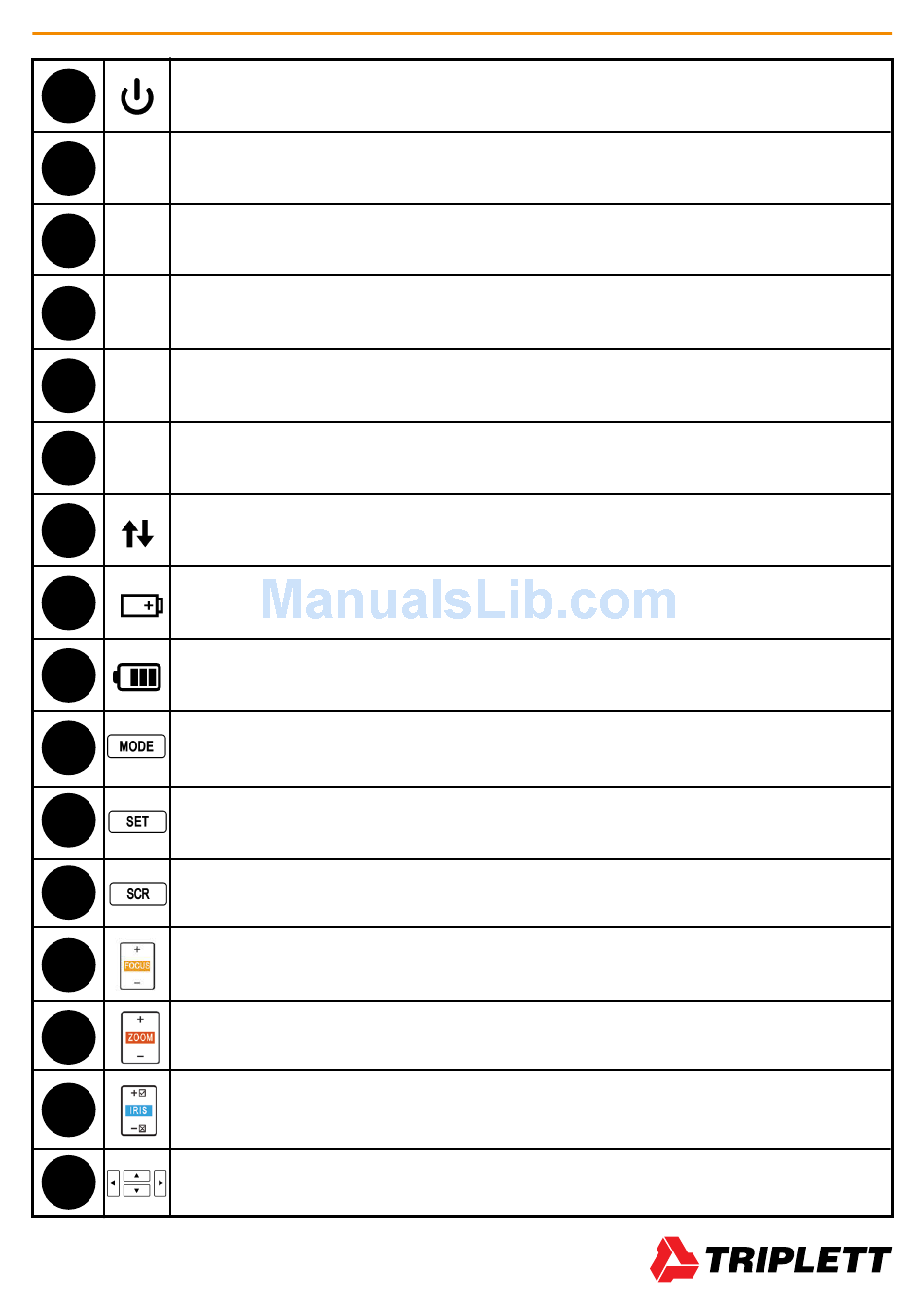

1
Power Indicator — Lights up when powered on.
2
Title Bar — Displays current function mode and system time.
3
Display Area — Displays various user interface menus.
On-Screen Instructions — Displays what your options are in the current screen
4
and how to apply them.
5
Bumpers — Rubber protectors to improve handling and protect the tester.
6
QWERTY Keyboard — Flip open this area to access the QWERTY keyboard.
7
Data Transmission Indicator — Red light flashes when data is being transferred.
8
Charge indicator — Red when charging, off when fully charged.
9
Battery Level Icon — Indicates battery Level.
10 Mode Button/Function Select Key — Click to bring up Function Select menu.
Click multiple times or use Up/Down and Right Arrow Keys to select function.
11
Setting Button — Brings up Settings Menu for various functions.
12
Screen Button — Switches full screen video display on/off.
Focus Control Key — Controls PTZ focus and other functions depending on the
13
individual screen. Use of this button will be indicated by
Zoom Control Key — Controls PTZ and other functions depending on the
14
individual screen. Use of this button will be indicated by
Iris Control Key — Controls PTZ Iris and other functions depending on the
15
individual screen. When altering settings, use
16
Arrow Keys — Use these to navigate menus, alter settings, and pan/tilt cameras.
CamView IP Pro, Pro-C, and Pro+ User Manual
Focus+ Focus-
/
Zoom+ Zoom-
/
Iris+
to confirm and
5
Iris-
to cancel.
