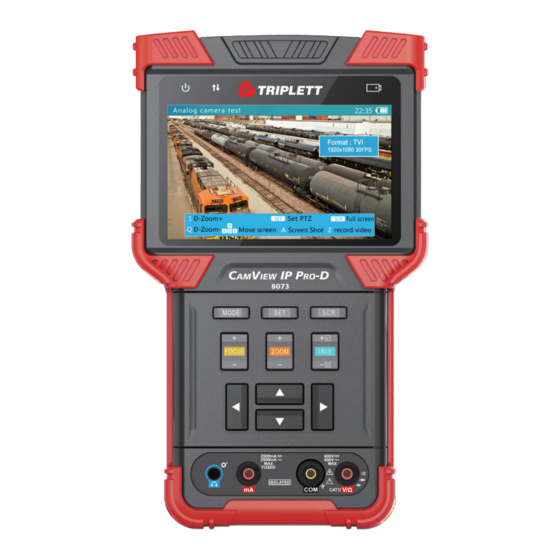

Triplett CamView IP Pro Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
C
V
iP P
Tm
am
iew
ro
S
T
erieS
eSTerS
8071 & 8073 USER MANUAL
Rev. 1/2018
P/N UM-8071/3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CamView IP Pro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triplett CamView IP Pro Series

Summary of Contents for Triplett CamView IP Pro Series

  • Page 1 iP P erieS eSTerS 8071 & 8073 USER MANUAL Rev. 1/2018 P/N UM-8071/3...
  • Page 2 • Do not use the product in an environment containing flammable gases • Do not attempt to disassemble the product. There are no user serviceable parts inside and product damage can occur. Contact Triplett customer service if the unit does not function properly.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction............01 1.1 General Use .
  • Page 4 4.3.5 Testing Remote Analog Monitors and Optical Transmitters/Receivers ..24 4.4 RJ45 Ethernet Cable TDR Test........25 4.4.1 Overview .

  • Page 5: Introduction

    CamView IP Pro Series Combined User Manual 1. INTRODUCTION 1.1 General Use The CamView IP Pro, Pro-C, Pro+, and Pro-D are designed to facilitate the installation and mainte- nance of surveillance video equipment. They can be used with Standard Definition analog NTSC/ PAL camera systems and High Definition ONVIF conformant IP (Ethernet) camera systems.
  • Page 6 CamView IP Pro Series Combined User Manual You can adjust the camera’s settings, and record still images or video from the selected camera. You can also check the audio signal from the camera if it is equipped with a microphone. If the camera is directly connected, the Tester will provide POE voltage to power the camera.

  • Page 7: Accessories

    CamView IP Pro Series Combined User Manual 1.2.7 Network Test The Tester may be used to perform several Ethernet network test functions, including: Network Sniff: Monitors and displays Ethernet MAC IDs and IP addresses broadcast on the network Subnet List:...

  • Page 8: Device Diagram And Functions

    CamView IP Pro Series Combined User Manual 2. DEVICE DIAGRAMS AND FUNCTIONS 2.1 Front of Tester Ports www.Triplett.com...
  • Page 9 CamView IP Pro Series Combined User Manual Power Indicator — Lights up when powered on. Title Bar — Displays current function mode and system time. Display Area — Displays various user interface menus. On-Screen Instructions — Displays what your options are in the current screen and how to apply them.

  • Page 10: Keyboard Features

    CamView IP Pro Series Combined User Manual 2.2 Front of Tester (Keyboard) 17 18 19 2.3 Back of Tester 2.4 Top of Tester www.Triplett.com...
  • Page 11 CamView IP Pro Series Combined User Manual TAB Key — Press to switch between input fields on the screen (e.g., username to pwd) CAPS Key — Select to turn Caps Lock on/off SYMBOL Key — Select to switch between letters and symbols on the keyboard ENTER Key —...

  • Page 12: Right Side Of Tester

    CamView IP Pro Series Combined User Manual 2.5 Right Side of Tester 2.6 Left Side of Tester www.Triplett.com...
  • Page 13 CamView IP Pro Series Combined User Manual Power Button • Press and hold for 2 seconds to turn the tester on / off • Press twice quickly to turn the Flashlight on / off (Flashlight feature may be used while the tester is on) Audio Input Jack —...

  • Page 14: Basic Operation

    CamView IP Pro Series Combined User Manual 3. BASIC OPERATION 3.1 Installing the Battery The CamView IP series of testers use a rechargeable lithium-ion polymer battery. To ensure safety when transporting, always disconnect the battery from the tester. The device may leave the factory with one of the following two battery placements: •...

  • Page 15: Lanyard

    CamView IP Pro Series Combined User Manual • The battery can also be charged using a POE switch or other POE power sources that meet the 802.3af / 802.3at standard. However, we strongly recommend using the original POE injector provided with your Tester. DO NOT USE A NON-STANDARD POE POWER SUPPLY TO CHARGE THE BATTERY—THIS CAN DAMAGE THE TESTER.

  • Page 16: How To Use Your Camview Pro, Pro-C, And Pro

    CamView IP Pro Series Combined User Manual 4. HOW TO USE YOUR CAMVIEW IP PRO, PRO-C, OR PRO+ 4.1 Main Menu When the CamView IP Pro-C/Pro+/Pro-D first boots up, you will see the following Main Screen. (NOTE—CamView IP Pro Testers will show fewer options.) You can navigate this screen using the Up or Down Arrow Keys.
  • Page 17 CamView IP Pro Series Combined User Manual OPTION 2 For non-POE IP cameras, the camera can either be powered using its own 12V power adapter or using the Tester’s 12V/2A power output. When using the Tester’s 12V/2A output, please use the 12V power cable supplied to connect the Tester’s 12V Output Port to the camera’s 12V power...

  • Page 18: Using The Interface - Step-By-Step Instructions

    CamView IP Pro Series Combined User Manual 4.2.3 Using the Interface Once you have connected the IP Camera to the Tester using one of the options listed in the previous section, follow these steps to perform IP Camera testing: STEP 1: Power Up the Tester Press the Power Button on the side of your Tester to turn it on if it is not already powered on.
  • Page 19 CamView IP Pro Series Combined User Manual IP address to include “.../onvif/device_service” at the end of the original 10.1.1.100 address. The final result will look like this: http://10.1.1.100/onvif/device_service. Iris+ Press to accept the settings and return to the Discover screen.

  • Page 20: Diagram And Details Of Ovif Interface Screen

    CamView IP Pro Series Combined User Manual 43 44 Network Port 1 Status Information — Also referred to as the Blue Bar, all of the information for the camera connected to Port 1 (blue RJ45 port on the side of the Tester) will show in this row.
  • Page 21 CamView IP Pro Series Combined User Manual Link Speed of Corresponding Port — The Link Speed displays above the bar icon. shows for each Port. The link speed can also be observed via the icon itself. • If the bar icon is gray, there is no network connection. It will also say “Link Down”...
  • Page 22 CamView IP Pro Series Combined User Manual CAMERA SETTINGS: While you are in the Discover screen, you can press the SET Key to enter the Camera’s Settings Screen. The left side of the display shows the Setting’s Class, and the right side shows the details of the camera’s setting within that class.
  • Page 23 CamView IP Pro Series Combined User Manual You may also export a report about this camera by selecting the SCR Key. You can retrieve the report, along with any screenshots or recordings, by plugging the mini USB cable into the tester and then attaching it to your computer. Your computer will view the Tester as an external drive.

  • Page 24: Testing Analog Cameras

    CamView IP Pro Series Combined User Manual 4.3 Testing Analog Cameras 4.3.1 Overview You can test standard Analog (NTSC/PAL) cameras with the Pro model, NTSC/PAL & HD-CVI with the Pro-C model, or you can test NTSC/PAL, AHD & HD-TVI cameras if you have the Pro+ model.
  • Page 25 CamView IP Pro Series Combined User Manual 4.3.3 Using the Analog Camera Test Interface Once you have connected the Analog Camera to the Tester and set up the camera’s power supply, follow these steps to perform Analog Camera testing: STEP 1: Power Up the Tester Press the Power Button on the side of your CamView IP Pro, Pro-C, or Pro+ Tester to turn it on if it is not already powered on.

  • Page 26: Using The Interface - Step-By-Step Instructions

    CamView IP Pro Series Combined User Manual To access and change the Tester’s settings to match the camera’s settings, press SET and then use the Arrow Keys to navigate the screen. (See image above.) When adjusting the parameters, press Iris- to restore previous values if you don’t want to save the setting.

  • Page 27: Analog Video Generator

    CamView IP Pro Series Combined User Manual 4.3.4 Analog Video Generator On the Main Menu, highlight “Analog Video Generator” (press the MODE button to enter the Main Menu if you are not already on it; press the Up or Down Arrow Keys to highlight it). Once the “Analog Video Generator”...

  • Page 28: Testing Remote Analog Monitors And Optical Transmitters/Receivers

    CamView IP Pro Series Combined User Manual 4.3.5 Testing Remote Analog Monitors and Optical Transmitters/Receivers You can transmit generated video to the remote monitor or DVR using the BNC Out jack (see image below). This will allow you to test the cable and monitor by comparing the image quality on the Tester to the image quality on the monitor.

  • Page 29: Rj45 Ethernet Cable Tdr Test

    CamView IP Pro Series Combined User Manual 4.4 Ethernet Cable TDR Test 4.4.1 Overview This feature is only available on the Pro-C, Pro+, and Pro-D models. It is primarily used to test the approximate cable length of an RJ45 cable by using a Time Domain Reflectometry (TDR) analysis method.
  • Page 30 CamView IP Pro Series Combined User Manual 50 51 52 53 Network Port 1 Icon Tape Measure — Flashes just under the Network Port icon when a cable is being tested. Network Port 2 icon Cable Pairs — Both by number and color pattern.

  • Page 31: Testing For Breaks In Ethernet Cable Using Tdr

    CamView IP Pro Series Combined User Manual STEP 3: Access the TDR Test Screen On the Main Menu, highlight “RJ45 Cable TDR Test” (press the MODE button to enter the Main Menu if you are not already on it; press the Up or Down Arrow Keys to highlight it). Once the “RJ45 Cable TDR Test”...
  • Page 32 CamView IP Pro Series Combined User Manual cable. The second example below shows the results from a cable with an open on the green pairs and the length to that open from each end of the cable. NOTE — Do not use the Repeat Test feature when performing this test as the test results will be compromised.

  • Page 33: Network Analysis Tools

    CamView IP Pro Series Combined User Manual 4.5 Network Analysis Tools 4.5.1 Overview Network analysis is a combination of several network tools, including Ethernet Sniff, Subnet List, and Ping test. 4.5.2 Network Tools Test Screen and Operation On the Main Menu, highlight “Network Tools” (press the MODE button to enter the Main Menu if you are not already on it;...
  • Page 34 CamView IP Pro Series Combined User Manual Tester’s Current Network Settings • IP/Mask - Tester’s IP Address and Subnet Mask. Select SET to change. • GW/DNS - Tester’s Gateway and DNS. Select SET to change. • Destination - Ping destination. When the bar is yellow, use the Flip Keyboard to change the information in this field.
  • Page 35 CamView IP Pro Series Combined User Manual LIST SUBNET: To use the List Subnet function, IP and Mask should be set up, and the Subnet Mask should be 24bits wide (subnet size of 256 devices, or 8 bits). Refer to the instructions on page 29 if you need to update the IP, Subnet Mask, or Gateway.

  • Page 36: Recording, Reviewing, And Accessing Snapshots And Videos

    CamView IP Pro Series Combined User Manual Ping 10.1.1.1 Average: 3ms **************** 10ms 30ms 0.1s 0.3s Lost 4.6 Recording, Reviewing, and Accessing Snapshots and Videos 4.6.1 Overview The Tester can take snapshots of or record input from video, then save the files to internal storage as either .jpg or .avi files.

  • Page 37: Device Settings And Updating The Firmware

    CamView IP Pro Series Combined User Manual 4.7 Device Settings and Updating the Firmware 4.7.1 Overview There are many other features in the Tester that you can adjust or view, including the screen’s language, Auto Shutoff delay, Serial Number, and so forth. There may also be times when you need to update the firmware or export files to a computer.

  • Page 38: Upgrading Firmware And Identifying Current Firmware Version

    CamView IP Pro Series Combined User Manual 4.7.3 Upgrading Firmware and Identifying Current Firmware Version IP and Analog camera standards are constantly evolving, therefore it is important that you keep your Tester up-to-date with the most recent firmware. Follow these steps to update the firmware: STEP 1: Power Up the Tester Press the Power Button on the side of your Tester to turn it on if it is not already powered on.
  • Page 39 CamView IP Pro Series Combined User Manual STEP 5: Run the Firmware Upgrade If you have internet access, the Tester will automatically check for new firmware updates when you initially land on the Check Upgrade screen. If, however, you see an error that states “Network Failed”...

  • Page 40: Exporting Reports

    CamView IP Pro Series Combined User Manual 4.7.4 Exporting Reports Any screen shots, video, or ONVIF IP camera reports you have saved on your Tester can be exported to your computer. STEP 1: Power Up the Tester Press the Power Button on the side of your Tester to turn it on if it is not already powered on.

  • Page 41: Audio Test

    CamView IP Pro Series Combined User Manual 4.8 Audio Tests The Tester is equipped with an audio test function. It can be used to test microphones or other audio devices. Use the supplied 3.5mm audio cable to connect audio device. The black clip is for the ground, the red clip is for the signal connection.

  • Page 42: Digital Multimeter

    CamView IP Pro Series Combined User Manual 4.10 Digital Multimeter The CamView IP Pro-D has a built-in Digital Multimeter (DMM). It can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Forward Voltage, and Circuit Continuity. STEP 1: Power Up the Tester Press the Power Button on the side of your Tester to turn it on if it is not already powered on.
  • Page 43 CamView IP Pro Series Combined User Manual Information and Measurement Display Area — Results and type of testing are shown here, including Vpp, type of measurement, etc. Shows up to 20,000 Test Type Selector — Press the ¡ ¢ keys to select DC Voltage (V), AC Voltage (V...
  • Page 44 CamView IP Pro Series Combined User Manual WARNING The Maximum Voltage rating on the test probes is 400V (AC) or 600V (DC). Do not exceed this rating. There is risk of personal injury or equipment damage if it is exceeded. To avoid risk of electrical shock, be sure to use proper safety protocols and avoid direct contact of energized circuits.
  • Page 45 CamView IP Pro Series Combined User Manual WARNING When replacing the fuse, first power off the Tester and unplug the DMM Leads. Use protective eyewear and be careful not to put pressure on the glass part of the fuse; only apply pressure to the metal portion of the fuse. Do not use sharp or jagged objects to pry the fuse out.

  • Page 47: Appendix 1: Sample Onvif Report

    CamView IP Pro Series Combined User Manual APPENDIX 1: SAMPLE FIRST PAGE OF ONVIF REPORT NOTE — Data and format are dependent on the specific IP camera. www.Triplett.com...

  • Page 48: Appendix 2: Technical Specifications

    CamView IP Pro Series Combined User Manual APPENDIX 2: TECHNICAL SPECIFICATIONS PORTS Network Ports (2) 10M/100M/1G RJ45 ports (Blue is POE Out; Green is POE In) I/O Ports (2) BNC ports (Video IN and Video OUT), (1) RS485, (1) Audio In, (1) USB, (1) Reset Button...
  • Page 49 CamView IP Pro Series Combined User Manual SYSTEM Screen 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjust- able Operation Method Power key, 12 control keys, QWERTY flip-open keyboard with 45 keys Auto Power Off Disable / 5~60 minutes...

  • Page 50: Appendix 3: Dmm Technical Specifications (Pro-D Model Only)

    CamView IP Pro Series Combined User Manual APPENDIX 3: DMM TECHNICAL SPECIFICATIONS Reading Minimum Item Range Range Resolution Accuracy 2V, 20V, 200V, 600V ±19999 0.1mV ±0.1%+8* ACV True RMS 20V, 200V, 600V ±1999 ±1.2%+3 DC Current 20mA, 200mA, 2000mA ±19999 ±0.1%+8*...
  • Page 51 Item Parameters Description Factory calibration temperature 25 ±5°C Temperature Stability <100ppm/ °C Except for large current measurement User Self-calibration Range ±1% Data Rate 5 readings per second DC Voltage, DC Current, Resistance Measurement, Diode testing, Continuity 2 readings per second AC Voltage &...

  • Page 52: Warranty And Technical Support

    Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
  • Page 54 Triplett Test Equipment and Tools has been desiging specialized test equipment for over 100 years. Triplett was acquired by Jewell Instruments in 2007. Jewell Instruments is a world leader in the manufacturing and distribution of advanced sensors, controls, panel meters, and avionics. Jewell provides custom solutions for the aerospace, medical, industrial, marine, telecommunications, and railroad industries.
