4.3.4 Analog Video Generator

On the Main Menu, highlight "Analog Video Generator" (press the MODE button to enter the Main
Menu if you are not already on it; press the Up or Down Arrow Keys to highlight it). Once the
"Analog Video Generator" option is highlighted, press the Right Arrow Key to select the test.
Live video will show in the right side of the screen if you have the Analog Camera hooked up to the
BNC In jack on the Tester. On the left side of the screen, you will see Pattern and Format options.

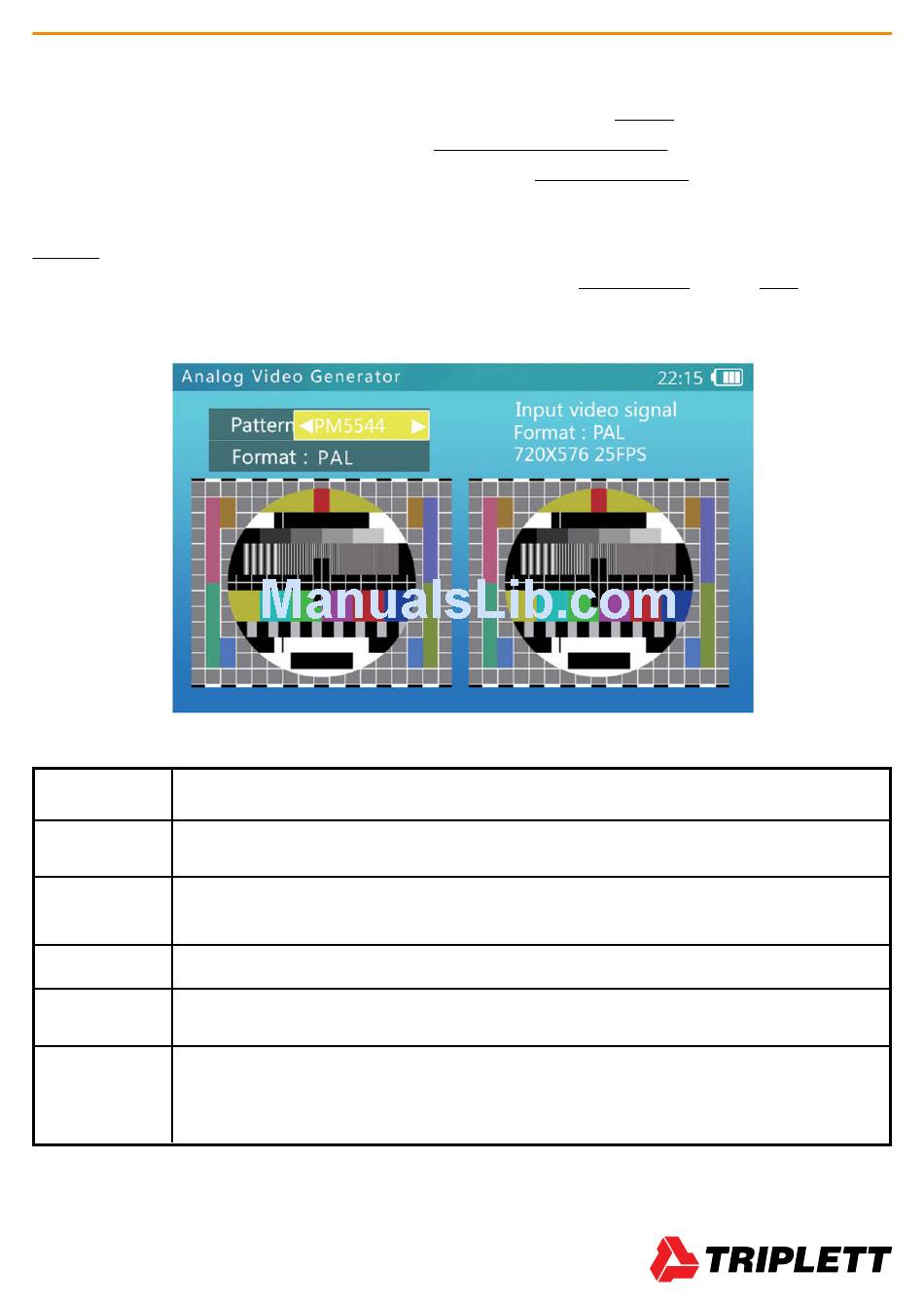

(See image below.) You can adjust these options using your Arrow Keys. Press SET when you
are done updating your options to save the changes.
Test Pattern
Supports PM544 and EBU color bars and EIA1956 black and white test screen.
Format PAL/NTSC.
Output Image Left side.
Input Image
Right side.
Input Format Format, resolution, and framerate of input video signal.
Input Level
Input of the video's level as displayed in dB. 0dB is the standard value
(1vpp@75 ohms)
