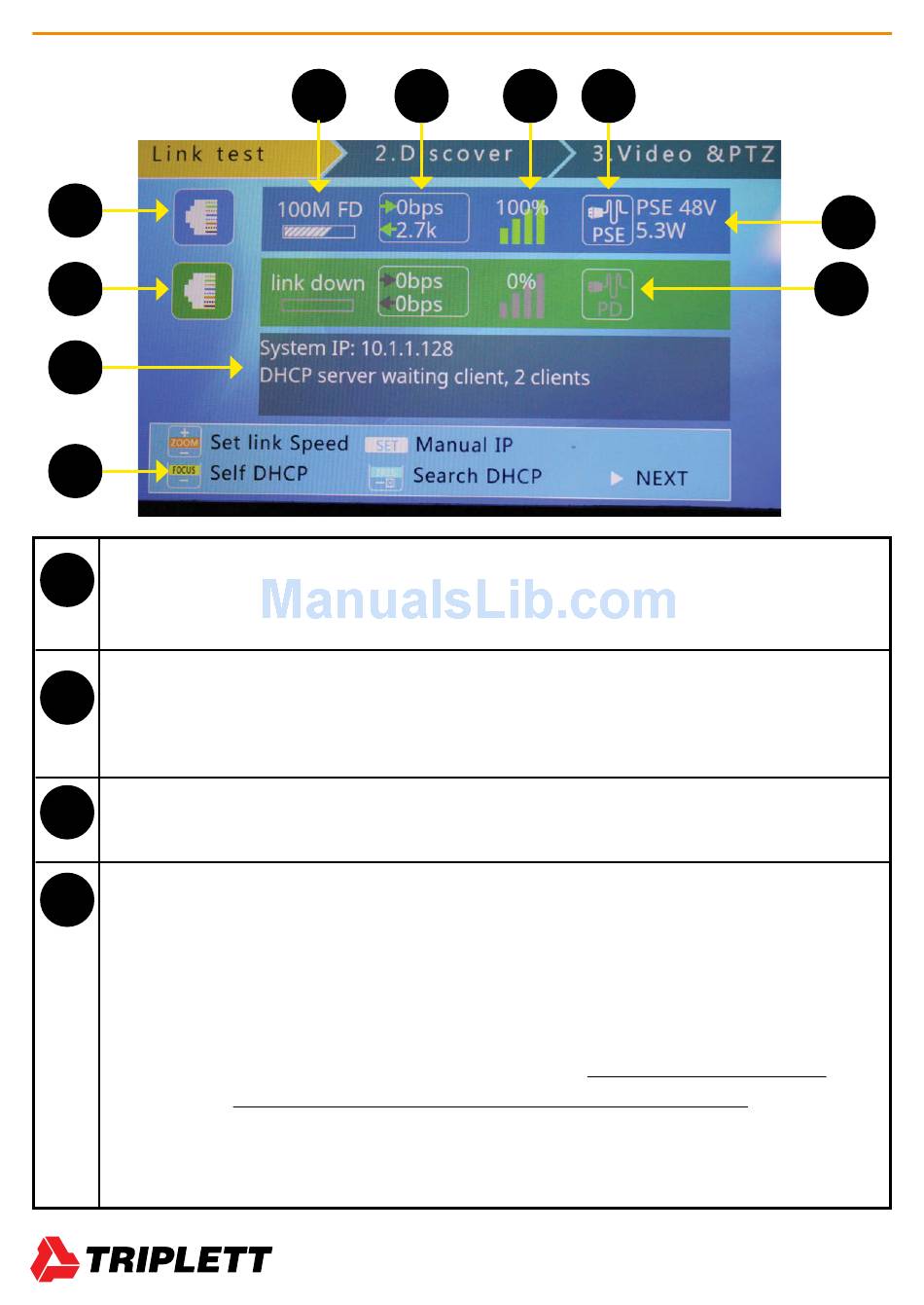

37 Network Port 1 Status Information — Also referred to as the Blue Bar, all of the
information for the camera connected to Port 1 (blue RJ45 port on the side of the Tester)
will show in this row.
38 Network Port 2 Status Information — Also referred to as the Green Bar, all of the
information from the network connected to Port 2 (green RJ45 port on the side of the
Tester) will show in this row.
39 IP Test Information — Also referrred to as the Gray Bar, this area shows the IP informa-
tion and status of the Tester and clients.
Available Operations for Link Testing — Follow the on-screen instructions to access or
40
modify specific settings, such as:
CamView IP Pro, Pro-C, and Pro+ User Manual
41
• Set Link Speed — Press
• Self DHCP — Press
network is set up yet and you are connecting directly to a camera. The
Tester will set the local IP to static, start the DHCP server, and wait for a
remote DHCP request from the camera. DO NOT USE if connecting
through an existing network as this will cause an IP conflict.
• Manual IP — Press SET button to enter Manual IP screen
• Search DHCP — Press
existing network. The server's assigned address will show in the gray bar.
42 43 44
Zoom+/-
to modify link speed
Focus-
to enable Self-generating DHCP. Use if no
Iris- to have the tester request DHCP from an
