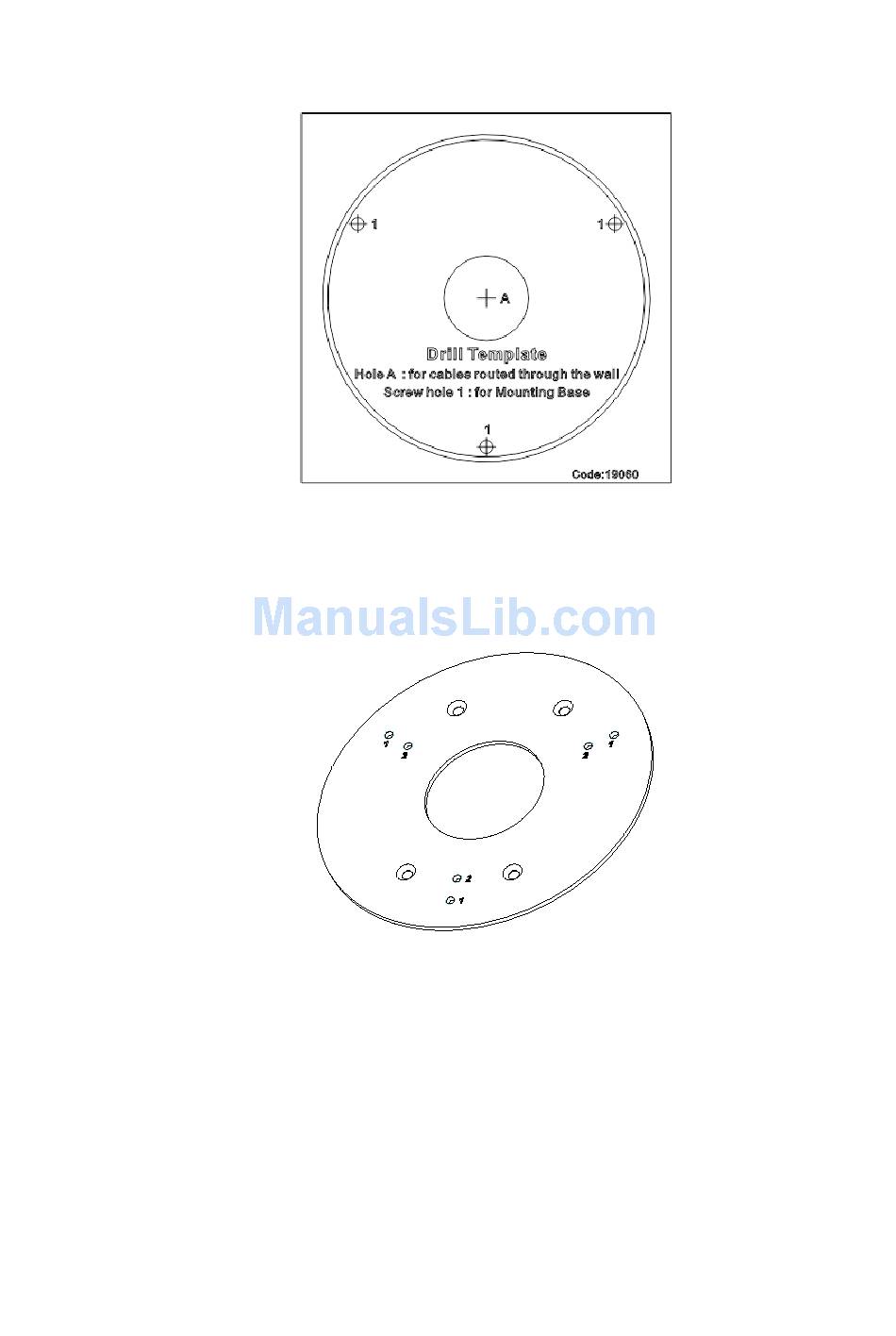

referencing the letter "A" on the drill template. Skip this
step if you want to route the cables on the surface.
Use the supplied adapter plate if installing the turret
camera to a wall mount or other accessory. Fix the
adapter plate to the accessory with three PM4X8 screws,
referencing number "2".
2.
Rotate the trim ring counterclockwise to remove it from
the camera.
Installation Guide
49
