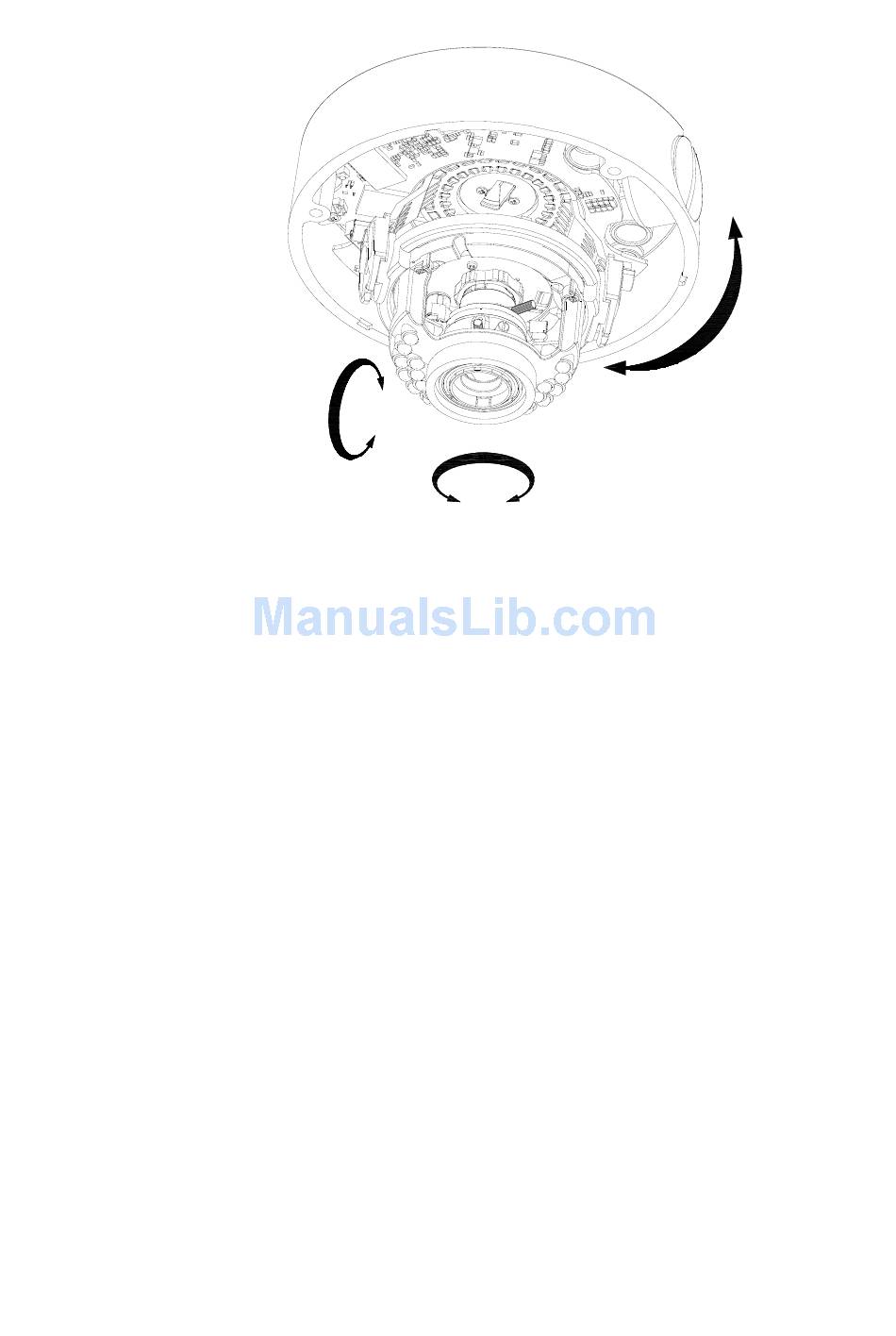

Tilting
Mounting the IP fixed lens dome camera
To mount the IP fixed lens dome camera on a surface:
1.
Use the supplied template to mark out the mounting area.
Drill mounting holes in the surface using the holes
labeled number "1" on the drill template.
To route the cable harness through the mounting surface,
cut a cable access hole in the mounting surface,
referencing the letter "A" on the drill template. Skip this
step if you want to route the cables on the surface.
Installation Guide
Rotation
Rotation
