Summary of Contents for Interlogix TVB-2401
-

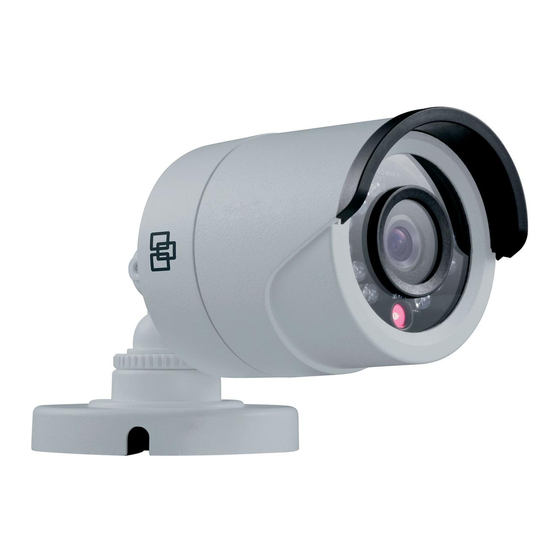

Page 1: Bullet Camera Installation
TruVision High Definition TVI Bullet Camera Installation Guide TVB-2401, TVB-4401 TVB-2403, TVB-4403 P/N 1072936-EN • REV A • ISS 12MAR15... -
Page 3: Table Of Contents
Camera description 3 Installation 5 Programming 7 Setup menu 9 Specifications 10 Legal and regulatory information 11 Product overview This is the Installation Guide for TruVision High Definition TVI Bullet Camera TVB-2401/TVB-4401 and TVB-2403/TVB-4403. This guide describes a standard installation. Installation Guide... -
Page 4: Package Contents
Package contents: Camera with power 3 screws and 3 and video output anchors for wall or cables ceiling installation Template Installation Guide • WEEE and Battery Disposal Installation Guide... -
Page 5: Camera Description
Camera description TVB-2401/TVB-4401 TVI video output Sun shield cable (grey) Lens Power cable IR LED Mounting base output Installation Guide... - Page 6 TVB-2403/TVB-4403 WDR/CVBS switch Mounting base cable Sun shield Power cable Lens TVI video output IR LED cable (grey) CVBS video output cable (black) Note: Please check the camera output settings before setting up a system. The TVI video output can be only connected to a DVR with TVI signal input.
-
Page 7: Installation
For TVB-2403/TVB-4403, you can connect the white and black line ends of the WDR switch cable to enable the Wide Dynamic Range (WDR) function. The WDR function is disabled by default. If WDR is enabled, the CVBS output will be blocked out, and only TVI output is available. - Page 8 Using a 75-ohm coaxial video cable, connect the camera TVI video output and a TVI DVR, and connect a 12 VDC power supply to the camera power cable. Adjust the camera position and angle as required. 360° 90° 360° Installation Guide...
-
Page 9: Programming
Programming Programming on TVI output: Programming on TVI output is available for TVB- 2403/TVB-4403 only. Once the camera hardware has been installed, you can configure the camera settings on the TVI DVR. Select PTZ protocol as TruVision Coax and click menu button to call up the camera menu. - Page 10 Programming on CVBS output: Programming on CVBS output is available for TVB- 2403/TVB-4403 only. Programming on CVBS output, you need to connect a monitor and a TVS-C200 controller (purchase separately) as following system figure. CVBS The TVS-C200 has one male BNC output and a female output.
-
Page 11: Setup Menu
Setup menu Installation Guide... -
Page 12: Specifications
Current TVB-2401/TVB-4401: Max.300mA TVB-2403/TVB-4403: Max. 330mA Power TVB-2401/TVB-4401: consumption Max. 3.5 W TVB-2403/TVB-4403: Max.4 W Weight TVB-2401/TVB-4401: 0.64 lb. (291 g) TVB-2403/TVB-4403: 0.68 lb. (309 g) 2.76 x 5.89 in. (70 x 149.5 mm) Dimensions (Ø × L) Installation Guide... -
Page 13: Legal And Regulatory Information
Legal and regulatory information Copyright: © 2015 United Technologies Corporation, Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. -
Page 14: Contact Information
For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact information: For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu Installation Guide...
