IP fixed lens dome camera

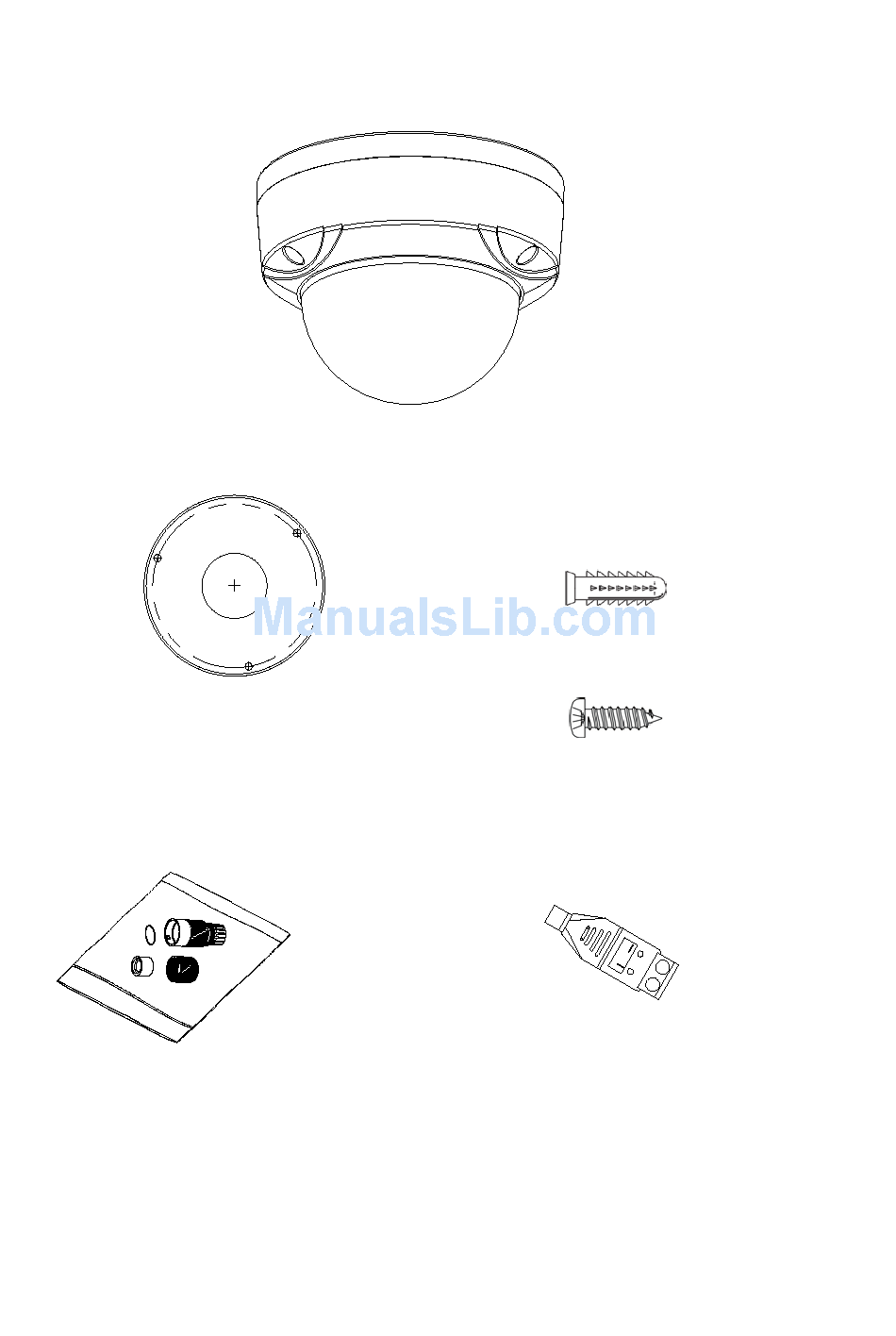

Camera:
Template:
1
Drill Template
Hole A: for cables routed through the ceiling
screw hole 1: for Mounting Base
Water joint: Provides water
resistance to network cable
connector.
10
1
A
1
Screws:
Drywall anchor
7.5 × 24.5 mm (3 pcs)
Screw
M4 × 25 mm (3 pcs)
12 VDC connector:
Two terminal connector
with positive and
negative indicators.
Installation Guide
