- Page 1 TruVision HD-TVI 5MPX Camera Installation and Configuration Manual P/N 1073359-EN • REV B • ISS 22AUG17...
-
Page 3: Table Of Contents
Contents Introduction 5 Product overview 5 HD-TVI fixed lens bullet camera: 5 HD-TVI VF motorized lens bullet camera: 5 HD-TVI fixed lens turret camera: 5 HD-TVI VF motorized lens turret camera: 6 HD-TVI VF motorized lens dome camera: 6 Installation 7 Installation environment 7 Package contents 10 HD-TVI fixed lens bullet camera 10... - Page 4 Surface mount 28 Surface mount when using the optional back box 30 Mounting the HD-TVI VF motorized lens bullet camera 34 Surface mount when not using the supplied back box 34 Surface mount when using the back box 37 Mounting the HD-TVI fixed lens turret camera 40 Surface mount 40 Surface mount when using the optional back box 45...
- Page 5 Programming 61 Call up the camera OSD menu 62 Menu trees 64 TVB-2409/4409 and TVT-2403/4403 cameras 65 TVB-2410/4410, TVT-2404/4404, and TVD- 2406/4406 cameras 66 Configuration 67 Output Mode 67 Focus 69 Language 69 Main Menu 70 Exposure 70 White Balance 74 Day/Night 75 Video Settings 77 Reset 79...
- Page 6 Specifications 80 Legal and regulatory information 83 Installation and Configuration Manual...
-
Page 7: Introduction
HD-TVI VF motorized lens bullet camera: TVB-2410 (5MPX Bullet, 2.8 to 12 mm lens, PAL) TVB-4410 (5MPX Bullet, 2.8 to 12 mm lens, NTSC) HD-TVI fixed lens turret camera: TVT-2403 (5MPX Turret, 2.8 mm lens, PAL) TVT-4403 (5MPX Turret, 2.8 mm lens,... -
Page 8: Hd-Tvi Vf Motorized Lens Turret Camera
HD-TVI VF motorized lens turret camera: TVT-2404 (5MPX Turret, 2.8 to 12 mm lens, PAL) TVT-4404 (5MPX Turret, 2.8 to 12 mm lens, NTSC) HD-TVI VF motorized lens dome camera: TVD-2406 (5MPX Dome, 2.8 to 12 mm lens, PAL) ... -
Page 9: Installation
Installation This section provides information on how to install the cameras. Installation environment Please keep in mind that there are restrictions/rules when using the HD-TVI 5MPX cameras with TruVision TVI recorders: The TVI 5MPX cameras only work with the higher resolution TVI recorders (TVR 15HD or TVR 45HD, or higher), firmware version 1.1 (or higher) - Page 10 Guidelines: TVR 15HD four-channel recorder, v1.1: Supports a maximum of one TVI 5MPX camera on BNC port 1 TVR 15HD/TVR 45HD eight-channel recorder, v1.1: Supports up to two TVI 5MPX cameras on BNC ports 1 and 2 TVR 15HD/TVR 45HD 16-channel recorder, v1.1: Supports up to four TVI 5MPX cameras on BNC ports 1, 2, 3 and 4 When installing your product, consider these...
- Page 11 • Temperature: Do not operate the camera beyond the specified temperature, humidity or power source ratings. The operating temperature of the camera is between -40 to +60°C (-40 to +140°F). Humidity is below 90% (non-condensing). • Moisture: Do not expose the camera to rain or moisture, or try to operate it in wet areas.
-
Page 12: Package Contents
Package contents Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit; contact the supplier immediately. If the unit is returned, it must be shipped back in its original packaging. - Page 13 Mounting template Installation guide • 12 VDC connector: • Torx wrench Two terminal connector with positive and negative indicators • CD • Equipment disposal sheet (WEEE directive) Installation and Configuration Manual...
-
Page 14: Hd-Tvi Vf Motorized Lens Bullet Camera
HD-TVI VF motorized lens bullet camera Camera with power 4 screws (4 × and video output 25 mm) and 4 (7.5 cable harness × 24.5 mm) (cables not shown) anchors • Torx wrench • Back box Installation and Configuration Manual... -
Page 15: Mounting Template
• Video test cable • 4 screws (M4.8 × 18). Used with the back box Mounting template • Plastic G3/4 cable adapter Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base (mm) Installation guide • CD Installation and Configuration Manual... -
Page 16: Hd-Tvi Fixed Lens Turret Camera
• Equipment disposal sheet (WEEE directive) HD-TVI fixed lens turret camera • 3 screws (4 × 25 mm) Camera with power and 3 anchors (7.5 × and video output cable harness 24.5 mm) (cables not shown) Installation and Configuration Manual... - Page 17 • 12 VDC connector: Mounting template Two terminal connector with positive and negative indicators • Adapter plate 4 screws (PM6-32 × 10). Used to attach the turret camera to a 2 gang electrical box 4 screws (KM4 × 8). ...
- Page 18 • CD Installation guide • Equipment disposal sheet (WEEE directive) Installation and Configuration Manual...
-
Page 19: Hd-Tvi Vf Motorized Lens Turret Camera
HD-TVI VF motorized lens turret camera 3 screws (4 × Camera with power and video output 25 mm) and 3 anchors (7.5 × cable harness 24.5 mm) 4 screws (KM4 x 8). 4 screws (PM6- Used to attach turret 32 ×... - Page 20 • 12 VDC connector: 3 screws (PM4 x Two-terminal 8). Used to connector with attach the turret positive and negative camera to the indicators adapter) Template Installation guide • CD Adapter plate Installation and Configuration Manual...
-
Page 21: Hd-Tvi Vf Motorized Lens Dome Camera
• Equipment disposal sheet (WEEE directive) HD-TVI VF motorized lens dome camera 3 screws (4 × Camera with power and video output 25 mm) and 3 anchors (7.5 × cable harness 24.5 mm) Installation and Configuration Manual... - Page 22 Template • Video test cable • CD Installation guide • 3 screws (PM4 × 16). • Plastic G3/4 cable Used to install the adapter camera body on to the dome back box (mm) Installation and Configuration Manual...
- Page 23 • Torx wrench • Spare rubber insert • Equipment disposal sheet (WEEE directive) Installation and Configuration Manual...
-
Page 24: Camera Description

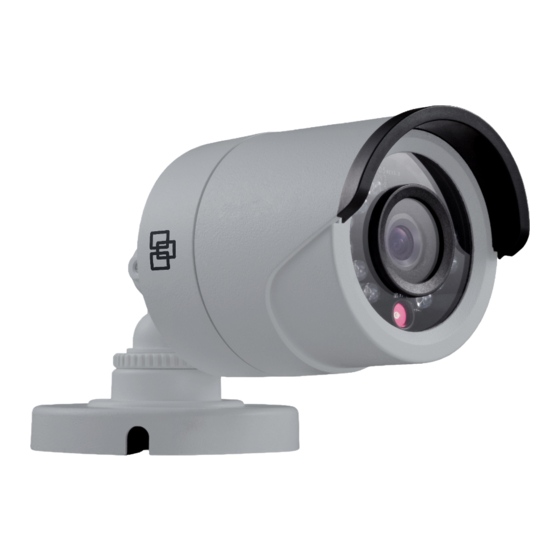

Camera description Figure 1: HD-TVI fixed lens bullet camera TVI output Camera body 12 VDC power Lens Mounting base IR LEDs Installation and Configuration Manual... - Page 25 Figure 2: HD-TVI VF motorized lens bullet camera Lens Sunshield TVI output Mounting base 12 VDC/24 VAC Access to OSD power menu button and TVI output Camera body Installation and Configuration Manual...
- Page 26 TVI output OSD menu button Note: When making adjustments to the motorized lens bullet camera, it is important to tighten the access cover (7) for the area that contains the video test cable connector and OSD menu button. The access cover should be rotated until it is tight up against the camera body.
- Page 27 Figure 3: HD-TVI fixed lens turret camera Trim ring Lens assembly Housing 12 VDC power Base TVI output Installation and Configuration Manual...
- Page 28 Figure 4: HD-TVI VF motorized lens turret camera Lens assembly OSD (5-direction) button Housing 12 VDC power Trim ring TVI output Base Installation and Configuration Manual...
- Page 29 Figure 5: HD-TVI VF motorized lens dome camera Bubble 12 VDC/24 VAC power Video test cable Lens assembly OSD (5-direction) button Base TVI output Installation and Configuration Manual...
-
Page 30: Mounting The Hd-Tvi Fixed Lens Bullet Camera
Mounting the HD-TVI fixed lens bullet camera Surface mount Place the provided template level against the mounting surface and mark the position of the mounting holes. Following all local safety regulations, drill and prepare the mounting and cable access (if required) holes. Route the cables through the cable access slot. - Page 31 Connect the corresponding cables. Adjust the camera to get the best viewing angle. See the figure below. Pan position range: 0-360° P (pan) adjustment T (tilt) adjustment R (rotation) adjustment Rotation position Tilt position range: 0- range: 360° 180° Installation and Configuration Manual...
-
Page 32: Surface Mount When Using The Optional Back Box
a) Loosen the P adjustment disk to adjust the pan direction [0-360°]. Tighten the disk after completing the adjustment. b) Loosen the T screw to adjust the tilt direction [0-180°]. Tighten the screw after completing the adjustment. c) Loosen the R screw and rotate the camera [0-360°] to adjust the lens to the desired surveillance angle. - Page 33 Route the cables through the cable access hole of the back box. Mount the camera to the back box cover using the screws provided. Place the mounting template level against the mounting surface and mark the position of the mounting holes. Use the ‘UP’...
- Page 34 Following all local safety regulations, drill and prepare the mounting holes. Install the back box to the mounting surface using the hardware provided. Installation and Configuration Manual...
- Page 35 Connect the corresponding cables, and install the back box cover and camera to the back box. Refer to step 6 of “Surface mount” on page 28 to adjust the camera viewing angle. Installation and Configuration Manual...
-
Page 36: Mounting The Hd-Tvi Vf Motorized Lens Bullet Camera
Mounting the HD-TVI VF motorized lens bullet camera Surface mount when not using the supplied back box Use the supplied template to mark out the mounting area. Following all local safety regulations, drill and prepare the mounting and cable access (if required) holes. Route the cables through the cable access hole. - Page 37 Secure the camera to the mounting surface with the provided hardware. Connect the corresponding cables. Adjust the camera to get the best viewing angle. See the figure below. Installation and Configuration Manual...
- Page 38 P (pan) adjustment T (tilt) adjustment R (rotation) adjustment a) Loosen the P screw to adjust the pan direction [0-360°]. Tighten the screw after completing the adjustment. b) Loosen the T screw to adjust the tilt direction [0-180°]. Tighten the screw after completing the adjustment.
-
Page 39: Surface Mount When Using The Back Box
Surface mount when using the back Remove the cover from the back box and align the screw holes of the bullet camera with the holes in the back box cover. Route the cables through the cable access hole of the back box. Install the camera to the back box cover using the screws provided. - Page 40 Place the provided template level against the mounting surface and mark the position of the mounting holes. Following all local safety regulations, drill and prepare the mounting holes. Install the back box to the mounting surface using the hardware provided. Installation and Configuration Manual...
- Page 41 Connect the corresponding cables and install the camera to the back box. Refer to step 6 of “Surface mount when not using the supplied back box” on page Installation and Configuration Manual...
-
Page 42: Mounting The Hd-Tvi Fixed Lens Turret Camera
34 to adjust the camera to the desired viewing angle. Mounting the HD-TVI fixed lens turret camera Surface mount Disassemble the turret camera by rotating the trim ring, as shown below. Place the provided template level against the mounting surface and mark the position of the mounting holes. - Page 43 Following all local safety regulations, drill and prepare the mounting and cable holes. Route the cables through the cable access hole (if required). Secure the mounting base to the mounting surface with the hardware provided. Installation and Configuration Manual...
- Page 44 Route the cables. Connect the power cord and TVI cables. Reassemble the turret camera by rotating the trim ring back in place. If installing the turret camera to a wall mount or other accessory, an adapter plate is provided. Install the adapter plate Installation and Configuration Manual...
- Page 45 to the accessory with three PM4 x 8 screws, referencing number "2". Adjust the camera to get the best viewing angle. See figure below. Installation and Configuration Manual...
- Page 46 Pan position range: 0-360° Tilt position range: Rotation position 0-75° range: 0-360° a) Hold the camera body and rotate the enclosure to adjust the pan angle [0- 360°]. b) Move the camera body up and down to adjust the tilt angle [0-75°]. c) Rotate the camera body to adjust the azimuth angle [0-360°].
-
Page 47: Surface Mount When Using The Optional Back Box
Surface mount when using the optional back box Disassemble the turret camera by rotating the trim ring, as shown below. Remove the cover from the back box. Place the provided template level against the mounting surface and mark the position of the mounting holes. Following all local safety regulations, drill and prepare the mounting holes. - Page 48 Route the cables through the cable access hole of the back box. Mount the camera to the cover of the back box. Mount the back box to the mounting surface. Installation and Configuration Manual...
- Page 49 Connect the corresponding cables and install the back box cover, with the camera, to the back box. Rotate the trim ring back on to the camera, as shown below. Installation and Configuration Manual...
-
Page 50: Mounting The Hd-Tvi Vf Motorized Lens Turret Camera
Refer to page 43 to adjust the camera to the desired viewing angle. Mounting the HD-TVI VF motorized lens turret camera Surface mount Place the provided template level against the mounting surface and mark the position of the mounting holes. Following all local safety regulations, drill and prepare the mounting holes. - Page 51 Disassemble the turret camera by rotating the trim ring counterclockwise, as shown below. Route the cables through the cable access hole (if required). Secure the mounting base to the surface using the screws provided. Installation and Configuration Manual...
- Page 52 There is an adapter plate provided if installing the turret camera to a wall mount or other accessory. Install the adapter plate to the accessory with three PM4 x 8 screws, referencing number "2". Installation and Configuration Manual...
- Page 53 Reassemble the turret camera by rotating the trim ring back on the camera, as shown below. Helpful hints when mounting the turret camera: a) Mount the turret base to a surface. b) When mounting on a wall, aim the lens towards the floor and the UP marking on the camera assembly towards the ceiling.
- Page 54 d) Place the turret housing over the camera assembly. e) Place the metal ring over the camera turret housing. Hold the turret housing and camera assembly in place with your right hand. g) Using your left hand, rotate the metal ring clockwise to tighten it.
-
Page 55: Surface Mount When Using The Optional Back Box
c) Rotate the camera body to adjust the azimuth angle [0-360°]. Pan position range: Tilt position range: 0-360° 0-75° Rotation position range: 0-360° Surface mount when using the optional back box Remove the cover from the back box. Place the provided template level against the mounting surface and mark the position of the mounting holes. - Page 56 Following all local safety regulations, drill and prepare the mounting holes. Disassemble the turret camera by rotating the trim ring counterclockwise, as shown below. Installation and Configuration Manual...
- Page 57 Route the cables through the cable access hole of the back box. Mount the camera to the back box. Install the back box to the mounting surface using the hardware provided. Installation and Configuration Manual...
- Page 58 Connect the corresponding cables and install the back box cover and camera to the back box. Rotate the trim ring back on to the camera body, as shown by the arrow. Installation and Configuration Manual...
-
Page 59: Mounting The Hd-Tvi Vf Motorized Lens Dome Camera
Adjust the camera according to step 8 of “Surface mount” on page 48 to get the best viewing angle. Mounting the HD-TVI VF motorized lens dome camera Surface mount Place the provided template level against the mounting surface and mark the position of the mounting holes. - Page 60 Loosen the three screws at the edge of the bubble assembly using the supplied Torx wrench. Remove the bubble. Secure the back box to the ceiling with the supplied screws. Installation and Configuration Manual...
- Page 61 Note: Please remove the rubber knockout for cable routing outside of the camera, when required. Using a 75-ohm coaxial video cable, connect the camera TVI video output and a TVI DVR, and connect a 12 VDC or 24 VAC power supply to the power cable, as indicated by the camera.
- Page 62 b) Rotate the panning table to adjust the pan direction [0 to 355°]. c) Move the lens assembly up or down to adjust the tilt position [0 to 90°]. d) Rotate the camera lens holder [0 to 355°] to adjust the lens to the surveillance angle.
-
Page 63: Programming
Programming Once the camera hardware has been installed, configure the camera using the built-in OSD button (if supported) and the TVI DVR menu. The TVS-C200 controller (Service Tool) does not support the 5MPX cameras. You can also configure the camera settings via a TVI DVR. -
Page 64: Call Up The Camera Osd Menu
A maximum number of TVI 5MPX cameras can be supported per TVI recorder The TVI 5MPX cameras are only supported on specific ports of the TruVision TVI recorders Guidelines: TVR 15HD four-channel recorder, v1.1: Supports a maximum of one TVI 5MPX camera on BNC port 1 ... - Page 65 TruVision HD-TVI camera to TruVision- Coax. In live view of the desired camera, click the PTZ Control icon on the live view toolbar to access the PTZ control panel. To call up the camera setup menu: Menu From the camera, press the button (if present).
-
Page 66: Menu Trees
adjust the value of a selected item, click the directional buttons left/right. From the camera (if it has a menu button): To select an OSD item, push the Menu button up/down. To adjust the value of a selected item, push the Menu button left/right. -
Page 67: Tvb-2409/4409 And Tvt-2403/4403 Cameras
TVB-2409/4409 and TVT- 2403/4403 cameras Installation and Configuration Manual... -
Page 68: Tvb-2410/4410, Tvt-2404/4404, And Tvd-2406/4406 Cameras
TVB-2410/4410, TVT-2404/4404, and TVD-2406/4406 cameras Installation and Configuration Manual... -
Page 69: Configuration
Configuration This section describes how to set up the menu settings. Output Mode OUTPUT MODE, and Move the cursor to press the Menu button to enter the submenu. Set the RESOLUTION, FRAME RATE, and NTSC/PAL of the camera and confirm. OUTPUT MODE 5 MEGA RESOLUTION... - Page 70 value, the finer the image. FRAME RATE This is the number of video images per second. When the resolution is set to 5 megapixels, set the frame rate to 12.5 fps. When the resolution is set to 1080P, set the frame rate to 25 fps or 30 fps.
-
Page 71: Focus
Select to return to the main menu. Focus Adjust the focus by clicking FOCUS+ or FOCUS-. Adjust the zoom ratio by clicking ZOOM+ or ZOOM-. Click the Zoom+ button to focus in on fewer Focus+ objects and then click to obtain a clear Zoom- image. -
Page 72: Main Menu
Main Menu Use the Main menu to adjust the image-related parameters, including EXPOSURE, WHITE BALANCE, DAY/NIGHT, and VIDEO SETTINGS. SET UP EXPOSURE WHITE BALANCE DAY / NIGHT VIDEO SETTINGS RESET SAVE & EXIT Exposure This describes the brightness-related parameters. Adjust the image brightness using BRIGHTNESS, EXPOSURE MODE, GAIN,... -
Page 73: Exposure Mode
EXPOSURE BRIGHTNESS GLOBAL EXPOSURE MODE HIGH GAIN DWDR ANTI-FLICKER BACK BRIGHTNESS This is the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value, the brighter the image. EXPOSURE MODE Select GLOBAL, BLC, or LV from the menu. - Page 74 BLC: BLC (Backlight Compensation) improves image quality when the background illumination is high. It prevents the object in the center of the image from appearing too dark. Set the LV value between 1 and 8 to increase the backlight compensation level. LV: LV (level of backlight compensation) is only available when BLC mode is selected.
- Page 75 image output signal to optimize the clarity of the image in poor lighting conditions. Set the AGC value between 0 and 15. AGC is disabled when the value is set to 0. DWDR DWDR mode (Digital Wide Dynamic Range) helps the camera provide clear images even under backlight circumstances.
-
Page 76: White Balance
the image from flickering when the video output is not compatible. White Balance White balance is the white rendition function of the camera to adjust the color temperature according to the environment. It can remove the unrealistic color casts in the image. Select and ATW. -
Page 77: Day/Night
When ATW mode (auto-tracking white balance) is enabled, white balance is adjusted automatically according to the color temperature of the scene illumination. Day/Night This function defines whether the camera is in day or night mode. The day (color) option should be used, for example, if the camera is located indoors where light levels are always good. - Page 78 DAY/NIGHT AUTO MODE INFRARED SMART IR BACK INFRARED: Select to turn on/off the IR LED depending on the lighting conditions. SMART IR: Use this to avoid over exposure of an image due to IR LED glare. Adjust the SMART IR value between 0 and 3.
-
Page 79: Video Settings
image is black and white. The IR LED turns on in low lighting conditions. Video Settings VIDEO SETTINGS Move the cursor to press the confirm button to enter the submenu. Adjust the CONTRAST, SHARPNESS, COLOR GAIN, MIRROR values to achieve the desired effect. VIDEO SETTINGS CONTRAST SHARPNESS... - Page 80 higher the value, the stronger the contrast. SHARPNESS This function determines the level of detail of an image. Set the value between 1 and 10. The higher the value, the clearer and sharper the image appears. COLOR GAIN Adjust this function to change the color saturation.
-
Page 81: Reset
into a mirror image. This could be used, for example, when the camera needs to be installed upside down. Select one of the functions: DEFAULT: The mirror function is disabled. H: The image flips 180 degrees horizontally. V: The image flips 180 degrees vertically. HV: The image flips 180 degrees both horizontally and vertically. -
Page 82: Specifications
Specifications Power supply 12 VDC / 24 VAC TVB-2409/TVB-4409: Current 12 VDC: Max. 290 mA TVB-2410/TVB-4410: 12 VDC: Max. 790 mA / 24 VAC: Max.660 mA TVT-2403/TVT-4403: 12 VDC: Max. 250 mA TVT-2404/TVT-4404: 12 VDC: Max. 750 mA TVD-2406/TVD-4406: 12 VDC: Max. 580 mA /... - Page 83 12 VDC: Max. 9 W TVD-2406/TVD-4406: 12 VDC: Max. 7 W / 24 VAC: 7 W Weight (net) TVB-2409/TVB-4409: 370 g / 0.82 lb. TVB-2410/TVB-4410: 900 g / 1.98 lb. TVT-2403/TVT-4403: 350 g / 0.77 lb. TVT-2404/TVT-4404: 750 g / 1.57 lb. TVD-2406/TVD-4406: 1600 g / 3.53 lb.
- Page 84 Dimensions TVB-2409/TVB-4409: 58.2 × 154.5 mm / 2.3 × 6.08 in. TVB-2410/TVB-4410: 94.7 × 265.4 mm / 3.7 × 10.45 in. TVT-2403/TVT-4403: 126.7 × 97.84 mm / 5 × 3.85 in. TVT-2404/TVT-4404: 135.78 × 118.2 mm / 5.35 × 4.65 in.
- Page 85 Legal and regulatory information Copyright: © 2017 United Technologies Corporation. All rights reserved. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
- Page 86 and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
-
Page 87: Contact Information
Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact information: For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu Installation and Configuration Manual...
