Re-attach the dome housing cover to the camera base.

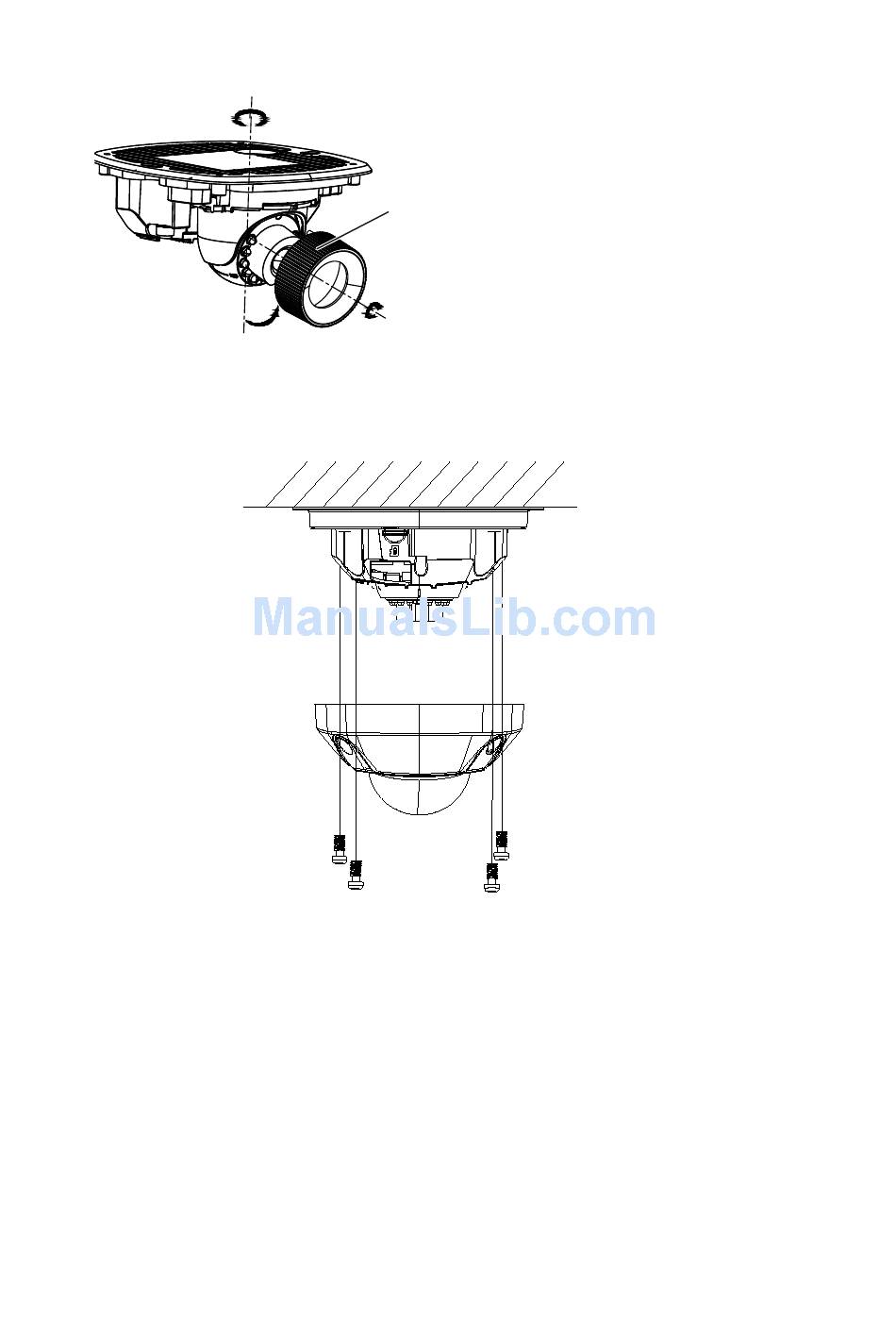

Mounting the IP turret camera
To mount the IP turret camera on a surface:
1.
Use the supplied template (supplied) to mark out the
mounting area. Drill mounting holes in the surface using
the holes labeled number "1" on the drill template.
To route the cable harness through the mounting surface,
cut a cable access hole in the mounting surface,
48
Pan
Tilt
Lens adjustment tool
Rotation
Installation Guide
