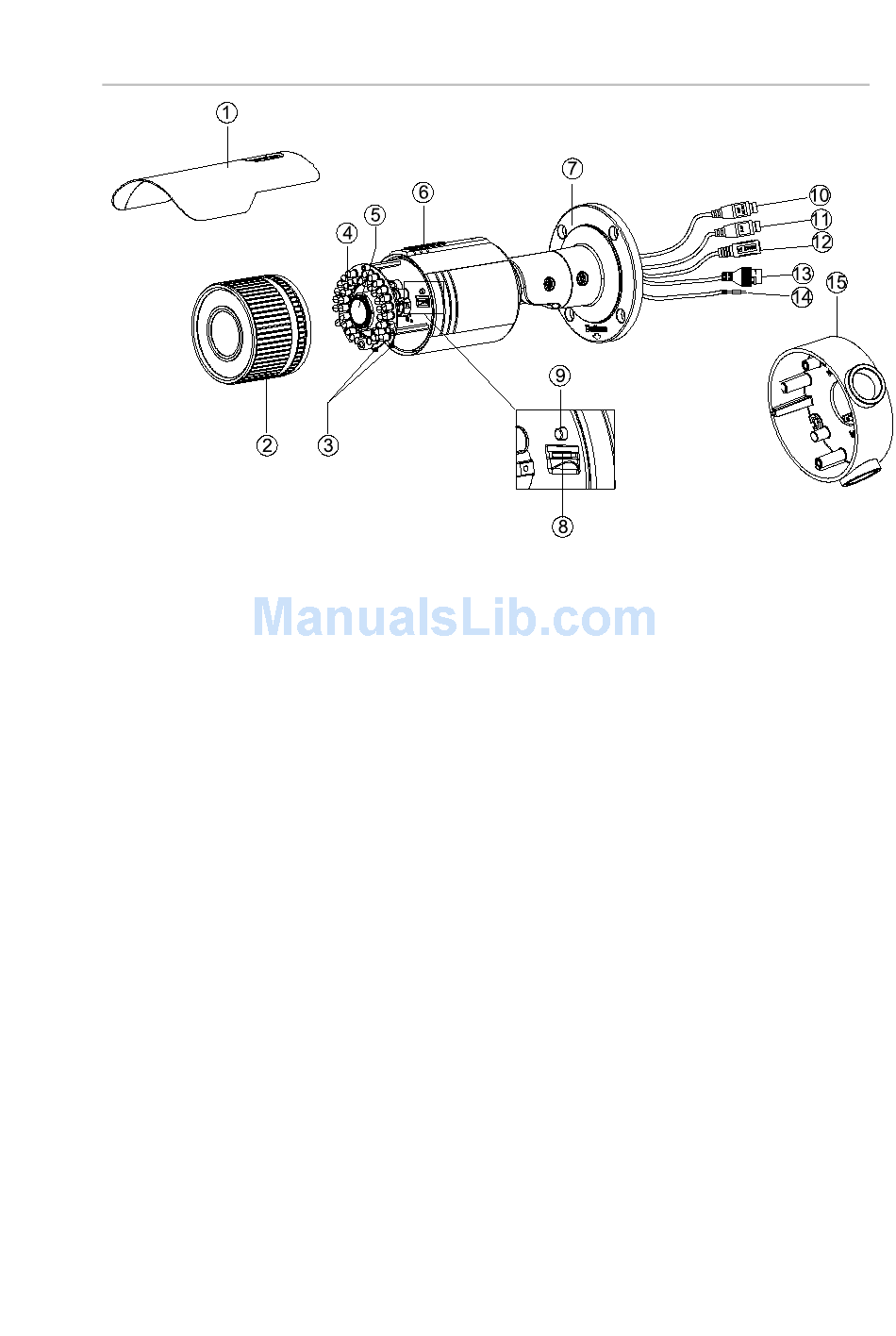

Figure 2: IP VF bullet camera
1.
Sunshield
2.
Front cover
3.
Lens adjustment
4.
IR LEDs
5.
Lens
6.
Waterproof film
7.
Base
8.
SD/SDHC/SDXC slot
Installation Guide
9.
Reset button
10. Audio I/O
11. Alarm I/O
12. 12 VDC power
13. Ethernet RJ45 PoE port
14. Aux power output
(12 VDC, 50 mA)
15. Back box
