To mount the IP VF lens dome camera and the IP
motorized lens dome camera on a surface:
1.

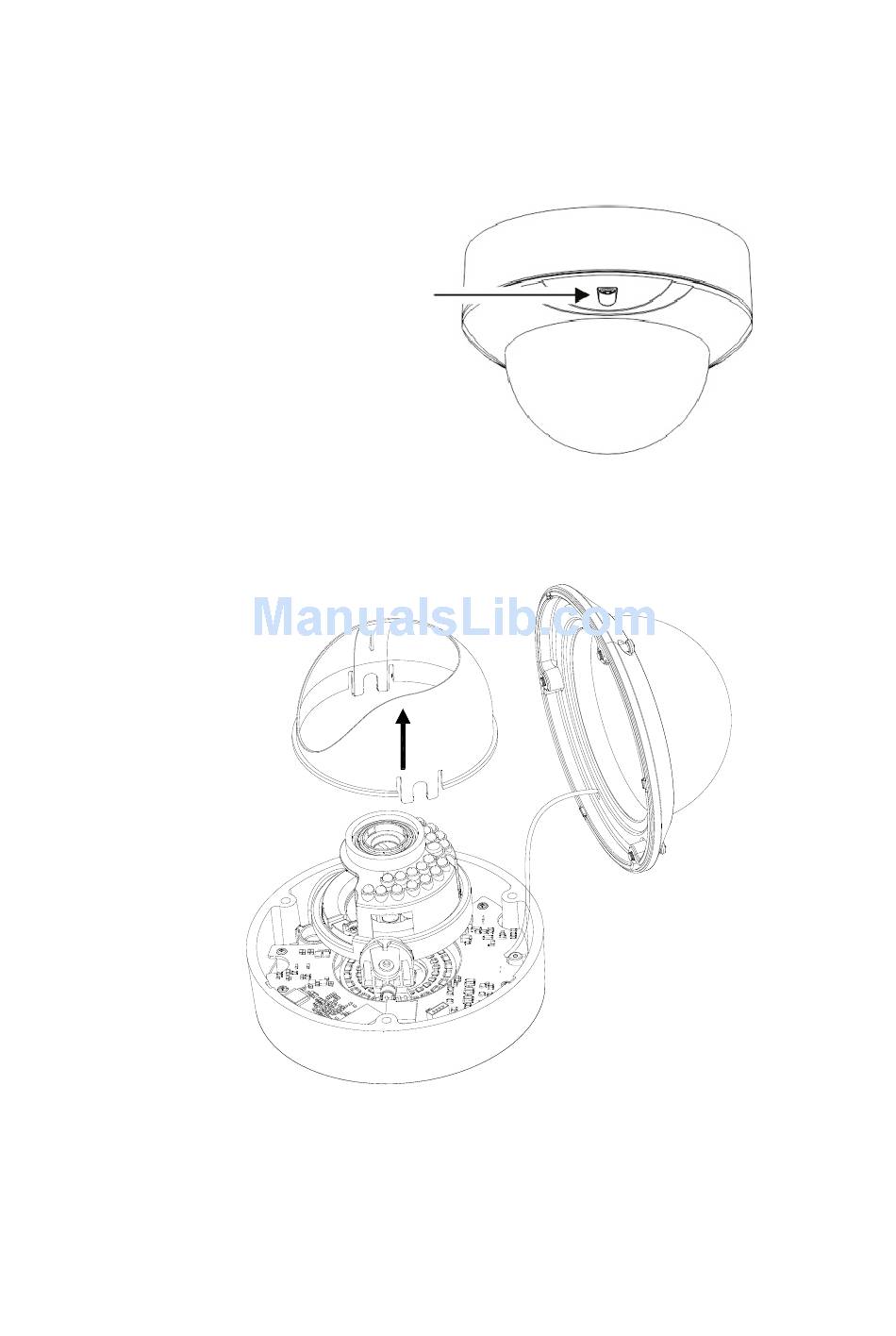

Loosen the three Torx screws at the edge of the dome
housing using the supplied Torx wrench.
Torx screw
2.
Remove the dome housing and then remove the black
plastic inner liner.
3.
Use the supplied template to mark out the mounting area
of the dome camera. Depending on how you want to
route the interconnect cables, route them out of the side
of the dome housing or through the mounting surface.
Installation Guide
37
