Mounting the IP wedge dome camera
To mount the IP wedge dome camera on a surface:
1.

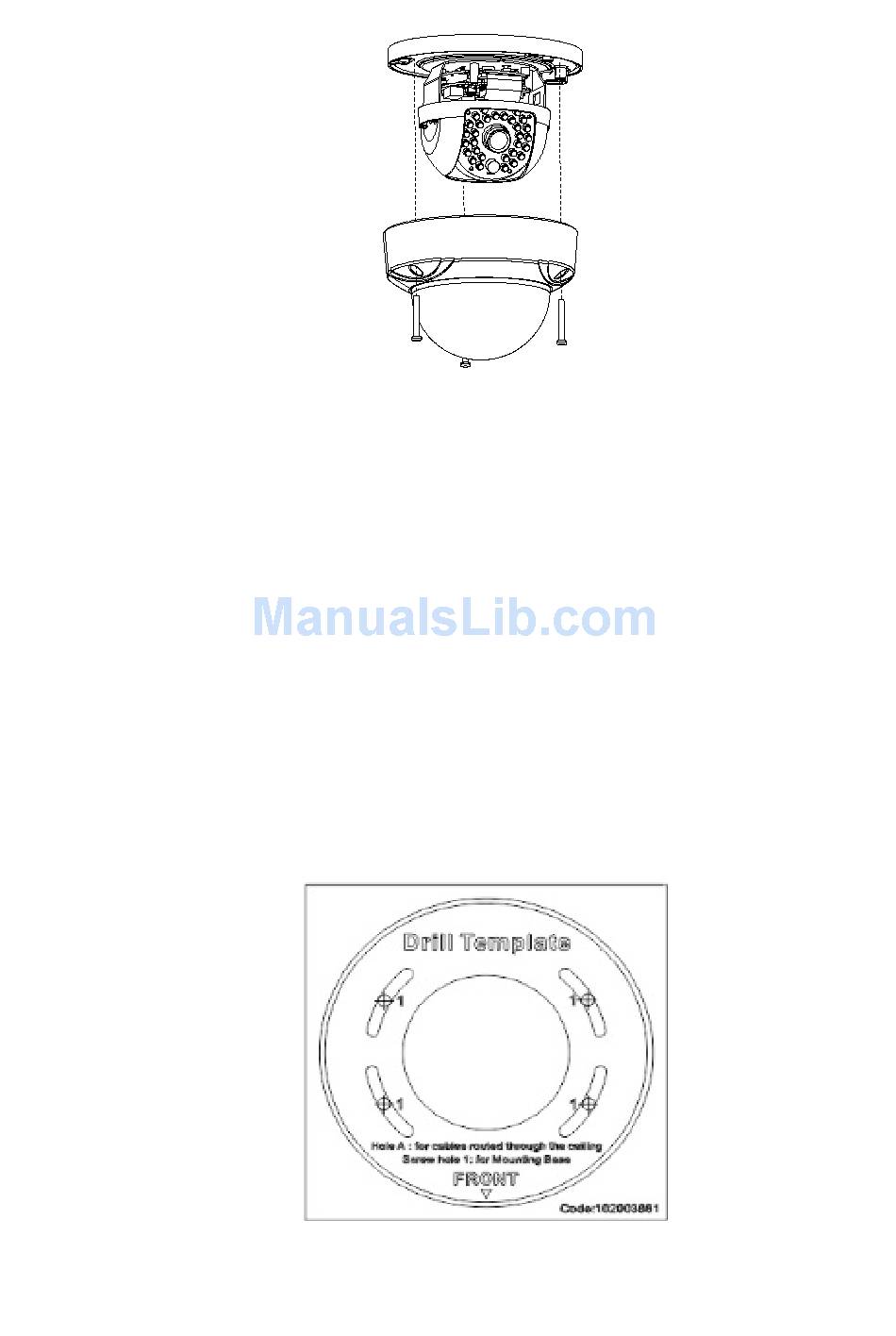

Use the supplied template (supplied) to mark out the
mounting area. Drill mounting holes in the surface using
the holes labeled number "1" on the drill template.
To route the cable harness through the mounting surface,
cut a cable access hole in the mounting surface,
referencing the letter "A" on the drill template. Skip this
step if you want to route the cables on the surface.
2.
Secure the adapter plate to the mounting surface using
the drill template (optional).
Installation Guide
