IP VF lens bullet camera

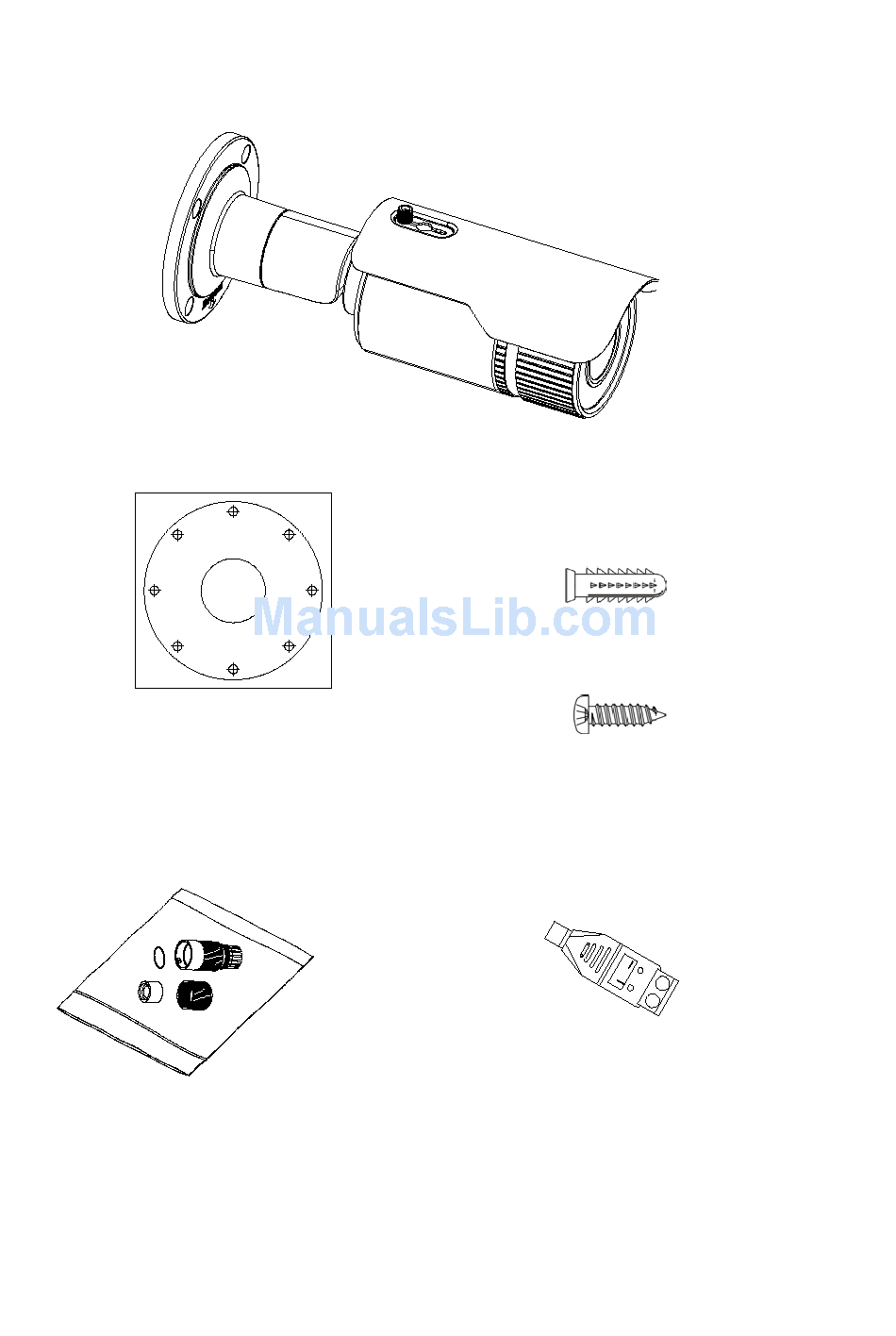

Camera:
Drill template:
Drill Template
2
1
Hole A: for cables routed through the wall
Screw hole 1: for integrative bracket
Screw hole 2: for conduit back box
Water joint: Provides water
resistance to network cable
connector.
6
2
1
A
2
1
2
Screws:
Drywall anchor
7.5 × 24.5 mm (4 pcs)
Screw
M4 × 25 mm (4 pcs)
12 VDC connector:
Two terminal connector
with positive and
negative indicators.
Installation Guide
