2.

Using the supplied Torx wrench, loosen the screws to

remove the dome housing.

3.

Attach the dome on the mounting surface using the

supplied hardware.

42

1

A

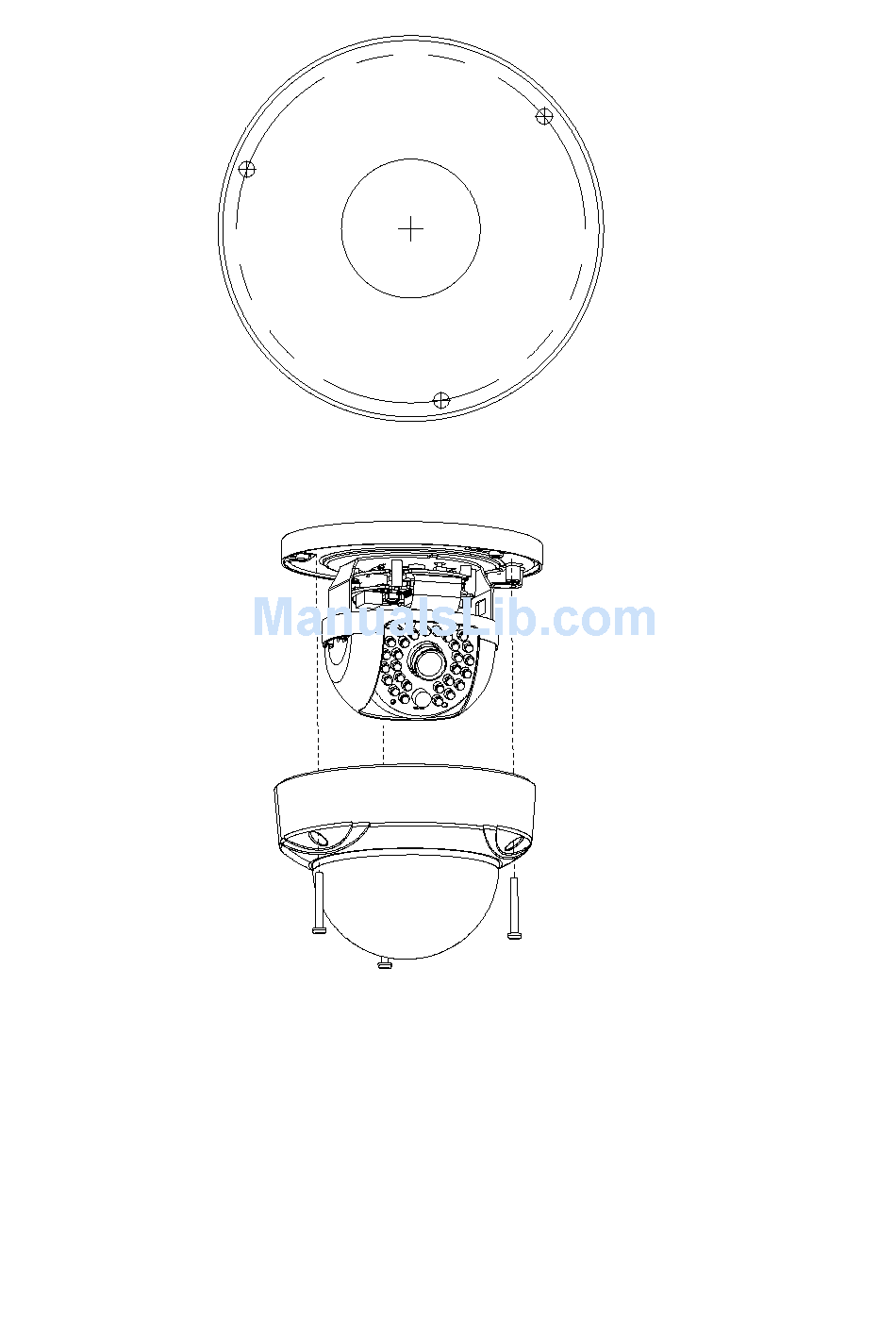

Drill Template

Hole A: for cables routed through the ceiling

screw hole 1: for Mounting Base

1

1

Installation Guide
