The power USB488 device function are described as follows：





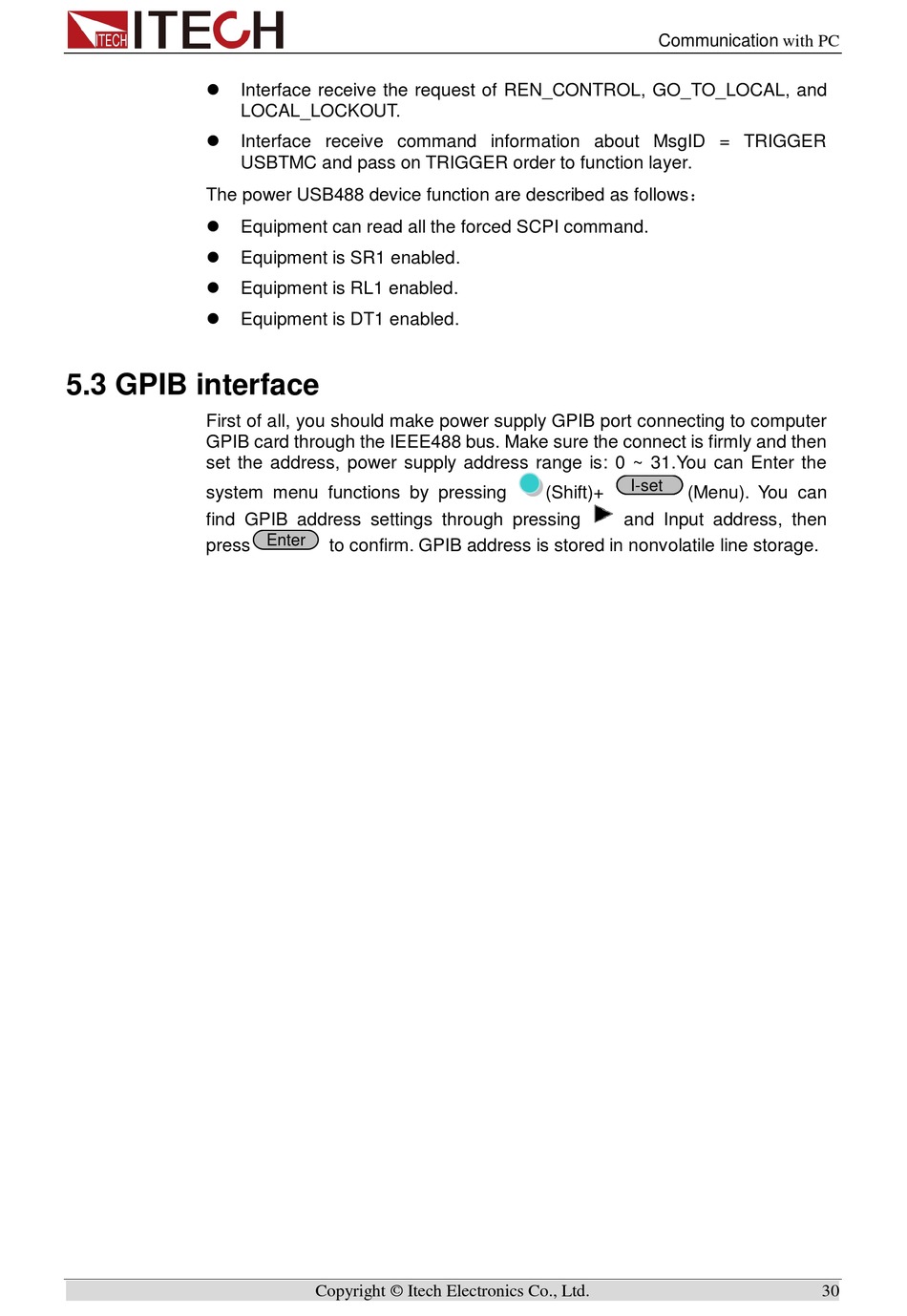

5.3 GPIB interface

First of all, you should make power supply GPIB port connecting to computer
GPIB card through the IEEE488 bus. Make sure the connect is firmly and then
set the address, power supply address range is: 0 ~ 31.You can Enter the
system menu functions by pressing
find GPIB address settings through pressing
press
Interface receive the request of REN_CONTROL, GO_TO_LOCAL, and
LOCAL_LOCKOUT.
Interface receive command information about MsgID = TRIGGER
USBTMC and pass on TRIGGER order to function layer.
Equipment can read all the forced SCPI command.
Equipment is SR1 enabled.
Equipment is RL1 enabled.
Equipment is DT1 enabled.
Enter
to confirm. GPIB address is stored in nonvolatile line storage.
Copyright © Itech Electronics Co., Ltd.
Communication with PC
I-set I-set
(Shift)+ (Menu). You can
and Input address, then
