Polycom SoundStructure C16 Design Manual page 37

UNGATED - Bypass
Mic or Line Analog A/D Parametric
Input Converter Equalization
Gain
UNGATED - Line Input Processing
Mic or Line Analog A/D Parametric
Converter
Input Gain Equalization
Parametric
Equalization
For additional flexibility in audio applications, there are four different
versions of the recording/ungated signal that can be selected through the
four-input router shown in the previous processing figures. This selection of
which type of recording/ungated signal to choose is performed on an input by
input basis within the SoundStructure Studio software as described in Chapter
5.
These four ungated versions are described in more detail below:
1. bypass version
2. line input version
3. noise cancellation version
4. sound reinforcement version

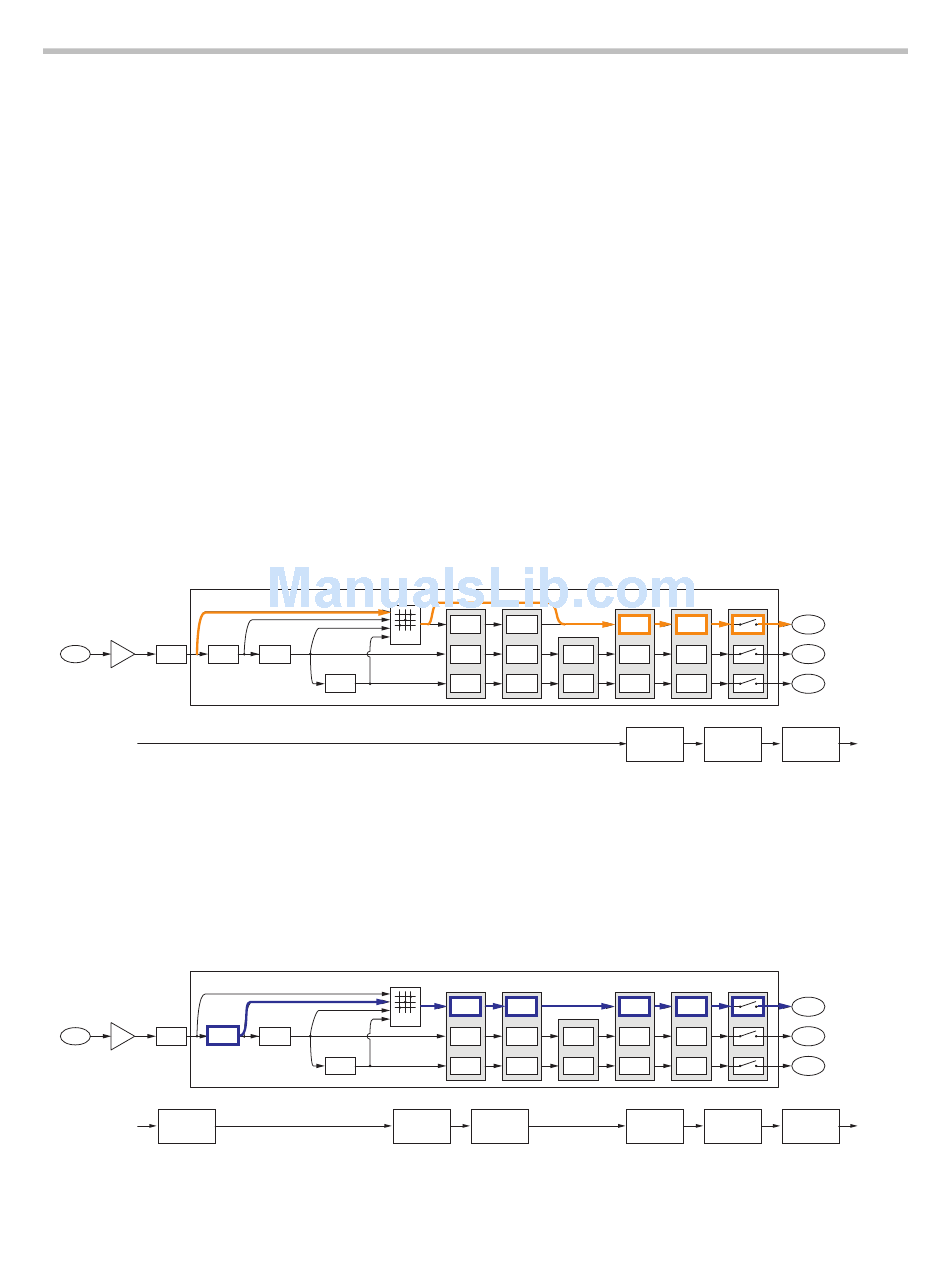

Recording/Ungated - Bypass
The recording/ungated-bypass version has no input processing other than a
fader gain control, input delay, and input mute. This version bypasses the
automatic gain control and dynamics processing as shown in the following
figure. This version can be used when it is important to have minimal audio
processing on an input signal.
Router
Noise
Cancellation
Feedback
Cancellation
Recording/Ungated - Line Input
The recording - line input version includes equalization, automatic gain
control, and the dynamics processing as well as fader gain control, input delay,
and input mute as shown in the next figure. This processing path is typically
used by line input signals such as program audio, and hence the name line
input path.
Router
Noise
Cancellation
Feedback
Cancellation
Automatic
Gain Control
AGC Dynamics Fader
Automatic Dynamics
Fader
Gain Control Processor
Automixer
Automatic Dynamics
Automixer Fader
Gain Control Processor
Automatic Dynamics
Automixer Fader
Gain Control Processor
AGC Dynamics Fader
Automatic Dynamics
Fader
Gain Control Processor
Automixer
Automatic Dynamics
Fader
Automixer
Processor
Gain Control
Automatic Dynamics
Automixer Fader
Gain Control Processor
Dynamics
Processor
SoundStructure Product Family
Delay Mute
Input to
Delay
Matrix
Input to
Delay
Matrix
Input to
Delay
Matrix
Fader Delay Mute
Delay Mute
Input to
Delay
Matrix
Input to
Delay
Matrix
Input to
Delay
Matrix
Fader Delay Mute
Recording/
Ungated
Noise Cancelled
Sound
Reinforcement
Recording/
Ungated
Noise Cancelled
Sound
Reinforcement
2 - 23
