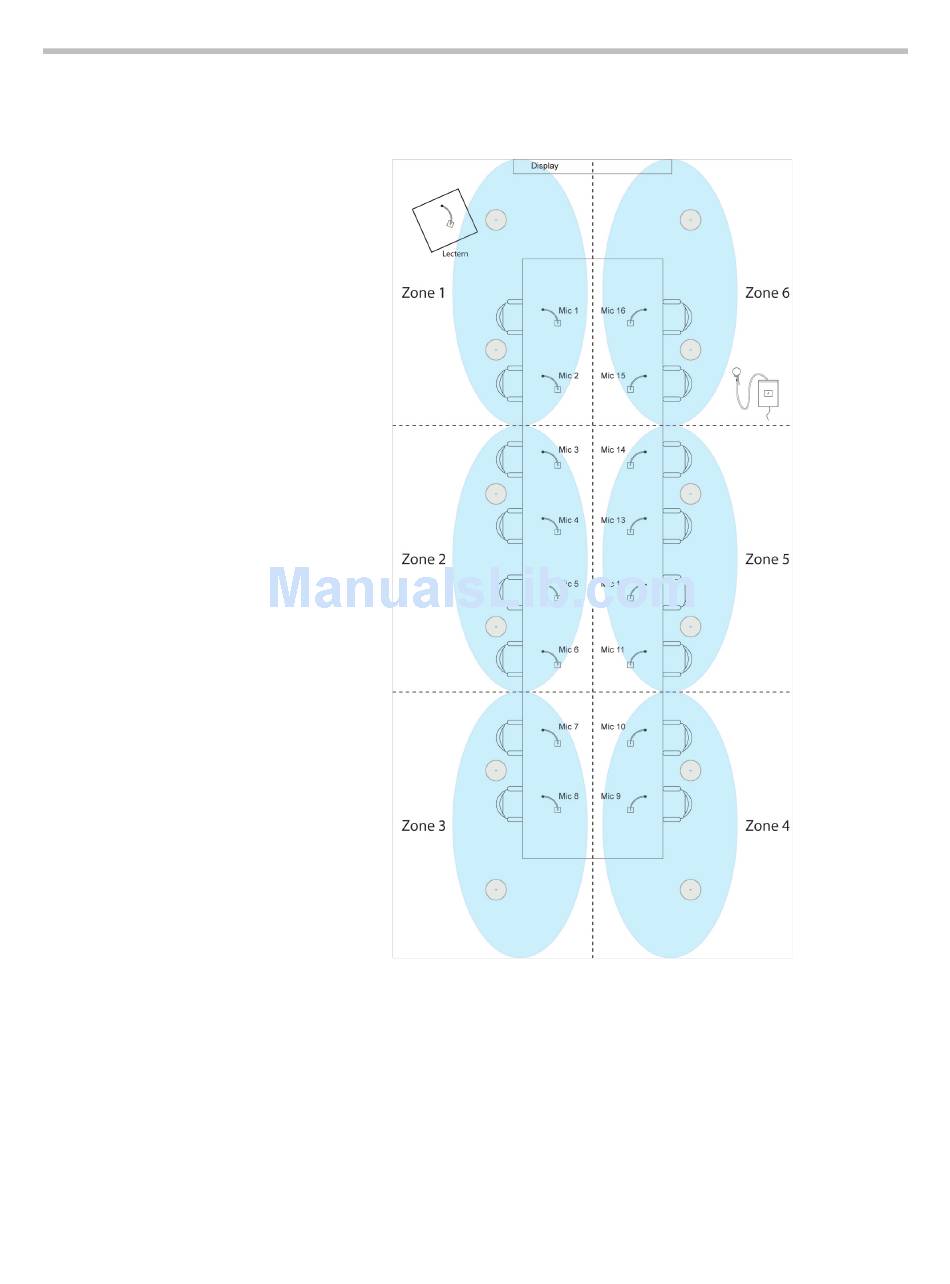

The next step is to create the microphone zone groups that will simplify setting
up the reinforcement levels. The designed zones are shown in the following
figure.
Zone 1
Zone 2
Zone 3
As part of the design process, the appropriate reinforcement levels would be
determined and a mapping similar to the one shown in the following figure
would be created as the baseline reinforcement in the room. This mapping
shows how the different input zones will be mapped to the different amplifier
ABC
ABC
ABC
ABC
ABC
ABC
