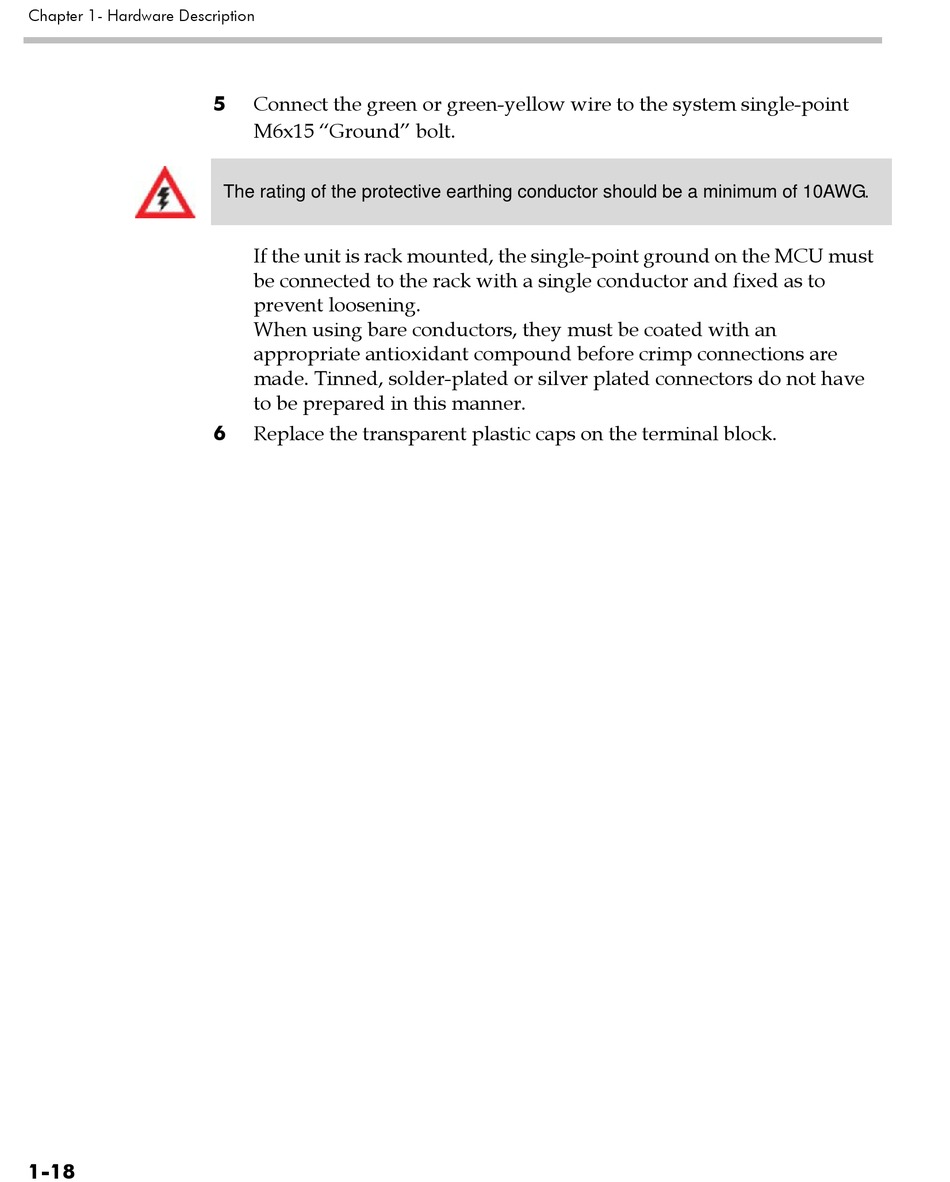

Chapter 1- Hardware Description

1-18

Connect the green or green-yellow wire to the system single-point

M6x15 "Ground" bolt.

The rating of the protective earthing conductor should be a minimum of 10AWG.

If the unit is rack mounted, the single-point ground on the MCU must

be connected to the rack with a single conductor and fixed as to

prevent loosening.

When using bare conductors, they must be coated with an

appropriate antioxidant compound before crimp connections are

made. Tinned, solder-plated or silver plated connectors do not have

to be prepared in this manner.

Replace the transparent plastic caps on the terminal block.
