RMX™ 4000
Installation Quick Start Guide for

RMX 4000

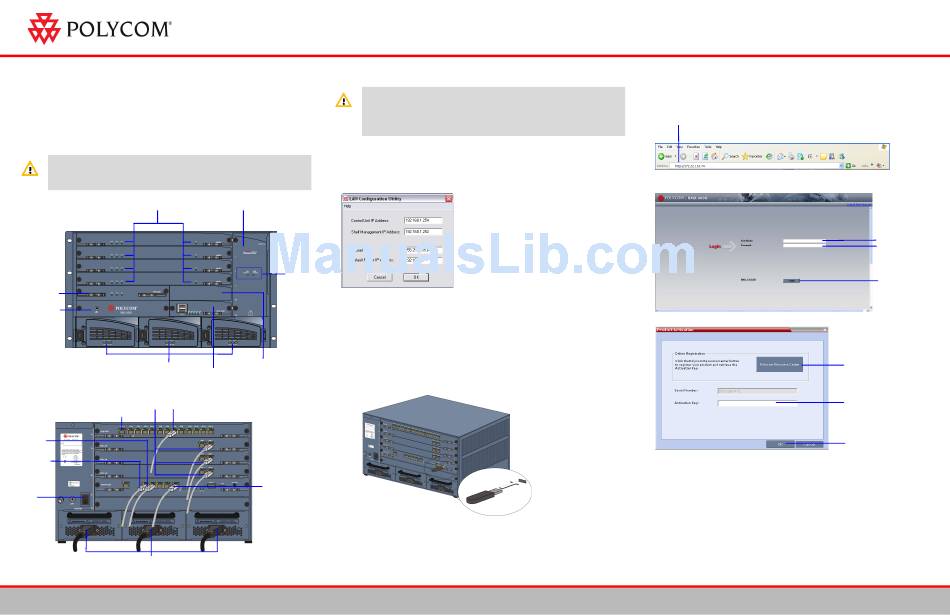

Basic Setup

Before installing the RMX 4000 and performing the Basic Setup, please read the
General Safety Precautions described in the Polycom RMX 4000 Hardware Guide.
For a detailed description of Unpacking and Rack mounting instructions, and
connecting a DC system, see the Polycom RMX 4000 Hardware Guide.
MPM+ Cards & LEDs
Fabric Switch
Module
(FSM 4000)
Logo Panel &
ESD Connector
Power Supply Drawers
and Status LEDs
LAN Connections to Port 2 on each RTM LAN E1/T1 Connection to RTM ISDN
LAN Connections to Port 1 on RTM ISDN
Signalling
Network
(Port 3)
Management
Network
(Port 2)
Off/On
Switch
Power Cables
1
•
•
•
1
Insert the USB key provided with your system into the PC workstation and double-
click LanConfigUtility.exe to start the utility.
Fan Drawer
Fan &
Power
Status
2
LEDs Modify the parameters in the utility's dialog box using the information supplied by
your network administrator.
3
Click OK.
4 Remove it from the PC.
First-time Power-up and Connection to MCU
Optional CPU
(Future)
Control Unit
1
Insert the USB key containing the modified IP addresses in the USB port on the
(CNTL 4000) &
RMX's back panel.
LEDs
Shelf
Management
(Port 6 on
RTM IP)
2 Power the RMX ON.
The parameters in the lan.cfg file are uploaded from the USB key to the RMX's
memory and applied during the power-up sequence.
System power-up sequence may take up to five minutes.
Two people are required to lift the MCU out of the box and when installing it in a
rack.
LAN 4, LAN 5 and the Serial ports are only for debugging and not for customer
use.
Do not remove the protective plastic caps from LAN 1, LAN 4 and LAN 5 ports.
Modifying the USB Key Settings
During the first-time power-up the red ERR LED on the RMX's front panel remains
ON until both the Management and IP Network Services have been defined.
3 Remove the USB key.
Enter the IP address of the RMX Control Unit and press Enter.
4
5
6
Enter POLYCOM.
Enter POLYCOM.
Click Login.
Click to connect to Polycom
web site and register the
RMX.
Click Product Registration
and follow the on screen
instructions to obtain the
Product Activation Key.
Enter or paste the Product
Activation Key obtained.
Click OK.
.
