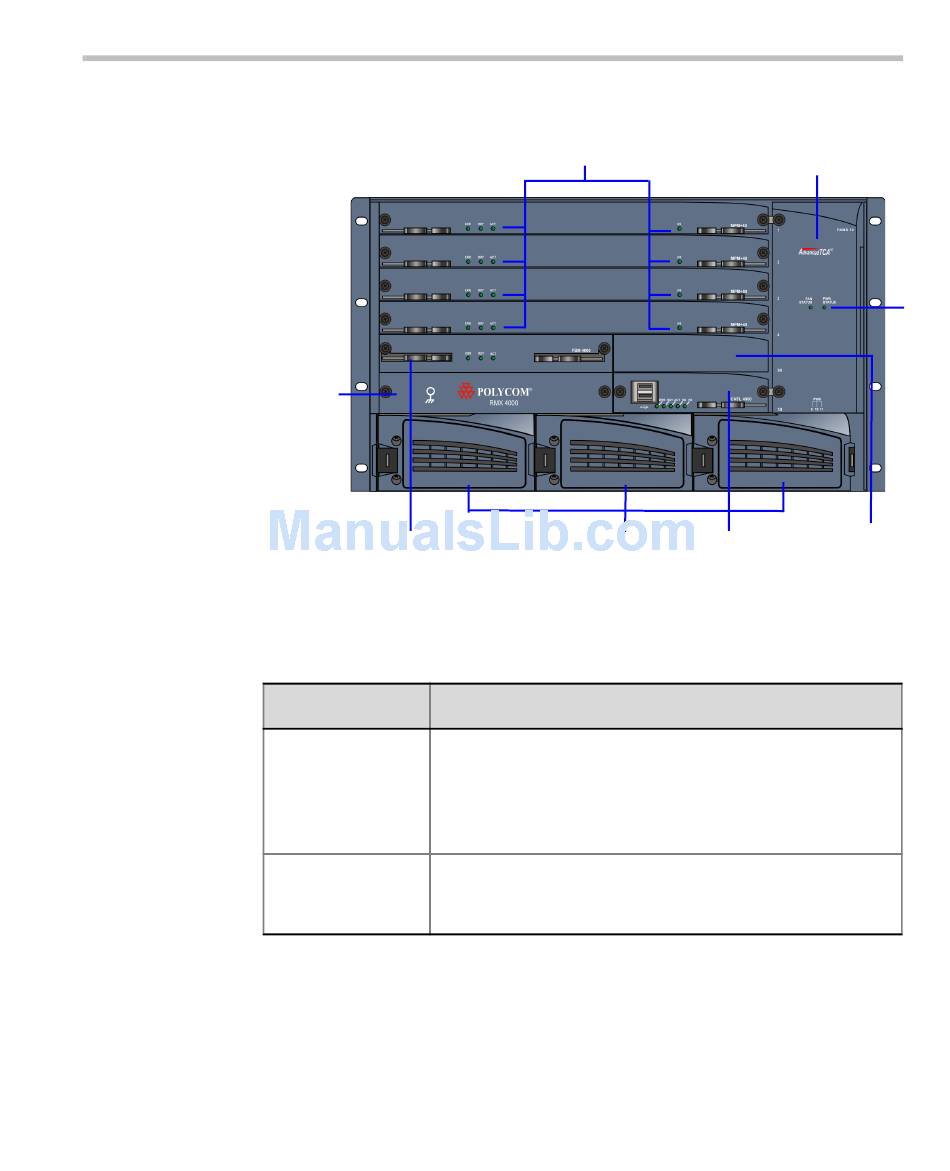

Figure 1-8 shows the front panel of an RMX 4000 DC system.
Figure 1-8
Table 1-9
Logo
Panel &
ESD
connector
Fabric Switch Module
(FSM 4000)
RMX 4000 DC Front View
Polycom RMX 4000 Component Description
Component Description
CNTL 4000 (CPU) The CNTL4000 module controls and manages the
Module RMX 4000. The CNTL 4000 module has an ComExpress
Pentium-M 1.4GHz processor, a hard disk drive, Compact
Flash and DDR RAM.
The Operating System is Linux.
Fabric Switch The Fabric Switch Module performs media processing
Module (FSM functions on the RMX 4000 unit. This card is managed by
4000) the RTM-IP 4000.
MPM+/MPMx Cards & LEDs
Blank Panels
Fan Drawer
Optional CPU
Control Unit (CNTL
(Future)
4000) & LEDs
1-23
Fan &
Power
Status
LEDs
