Placing the RMX 4000 in a 23" Rack

1
Mounting the RMX 4000 on a 23" rack requires that first the handles
and then the 19" brackets be removed from the MCU. This is shown
in Figure 1-4.

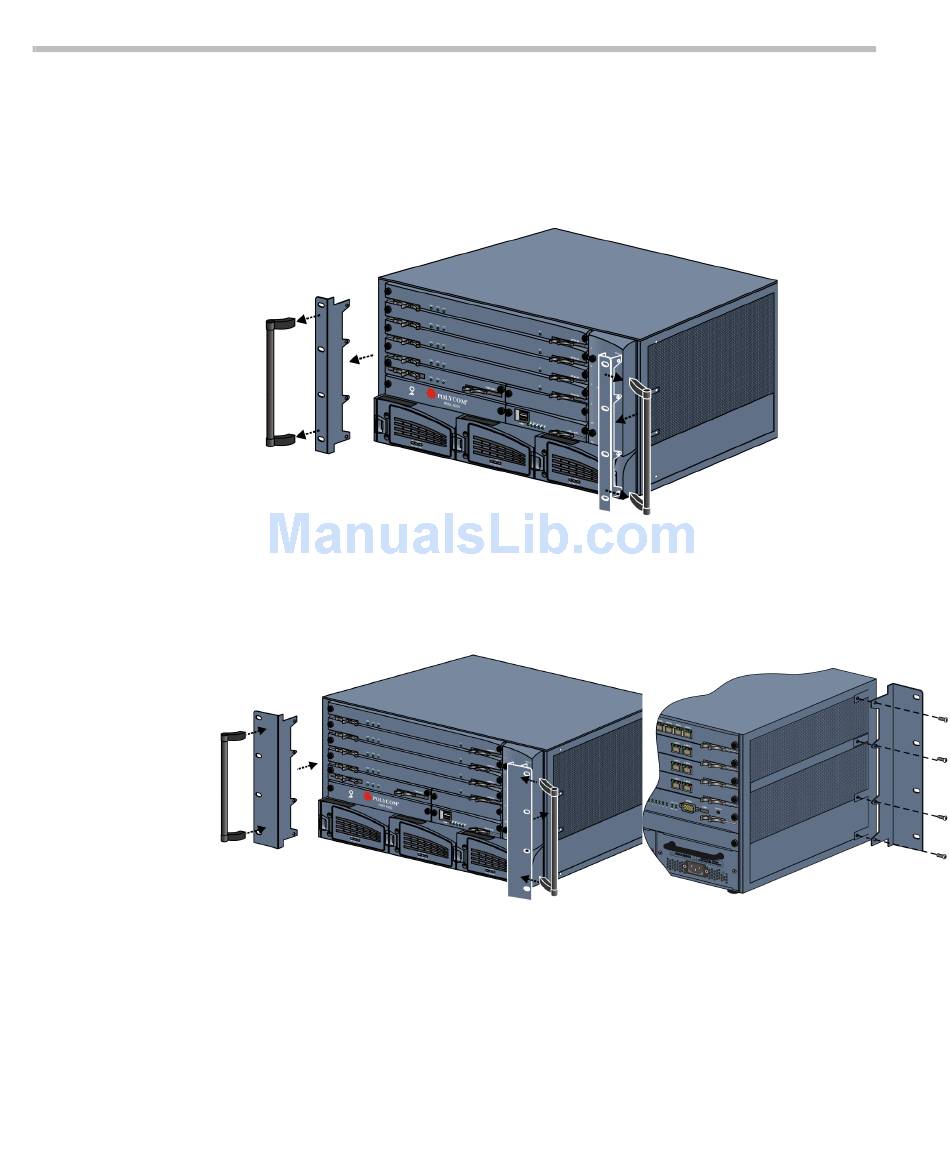

Figure 1-4 Removing and attaching 19" and 23" brackets
2
After removal, attach the 23" brackets as provided in the Rack
Installation Accessories kit, and re-install the handles to the 23"
brackets. This is shown in Figure 1-5.
Figure 1-5 Installing the handles and brackets & detailed rear view of 23" bracket
attachment
3 Mount the RMX on top of the rack brackets using the blades or place
it on a rack mount shelf with chassis runners.
4
Fasten the RMX to the rack with 8 screws into the holes provided on
the RMX's front as shown in Figure 1-3.
