Polycom RMX 2000 Hardware Guide

RMX 2000 Components

RMX 2000 Front Panel

Power supply Drawer
On the RMX 2000 components are located on both the front and rear of the
MCU as listed in Table 1-5, "Polycom RMX 2000 Component Description".
For more information see the descriptions of the "RMX 2000 Front Panel"
on page 1-9 and "RMX 2000 Rear Panel" on page 1-12.
Please verify the type of chassis used on your RMX 2000. Starting with version
4.0, a new environmentally friendly RMX 2000 chassis is in use. For more
information, contact your next level of support.

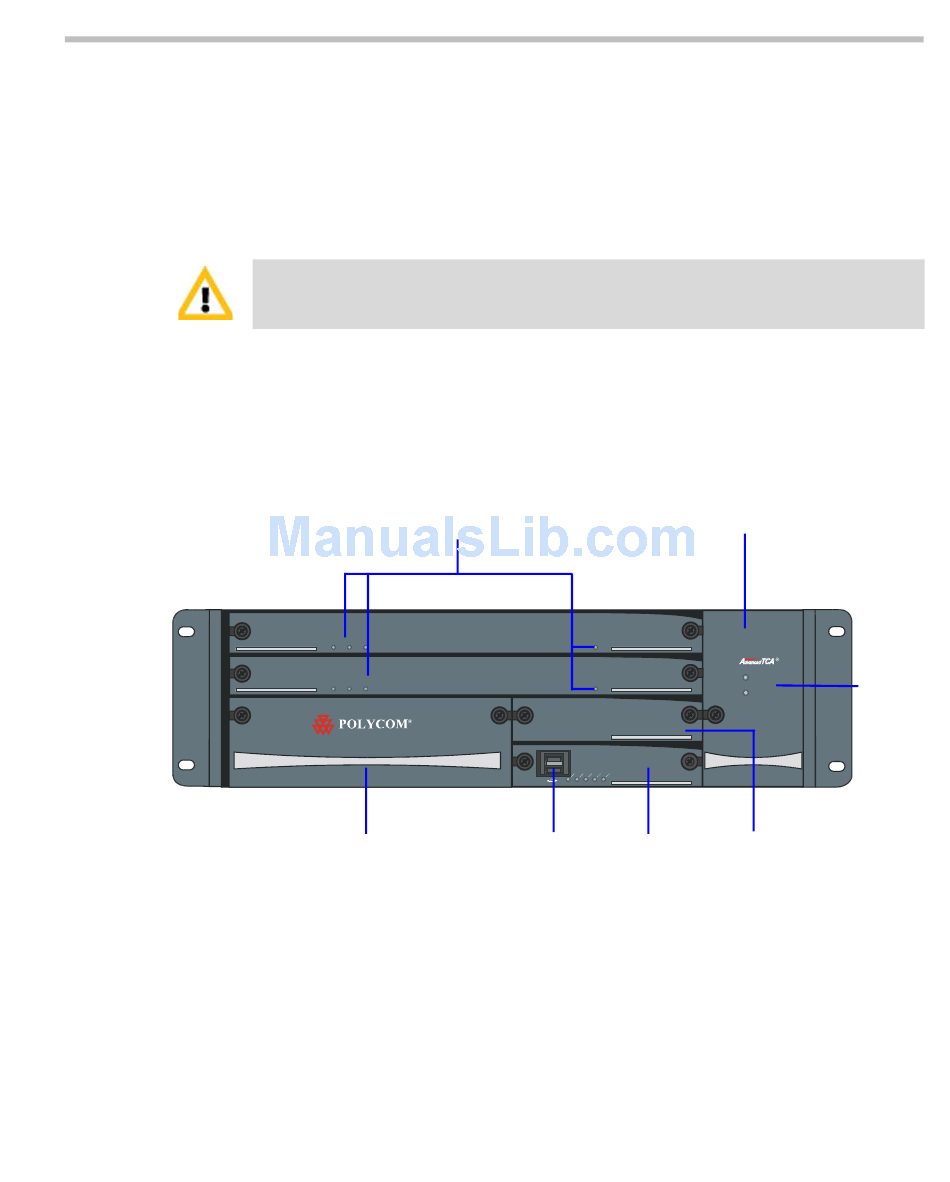

Figure 1-1 shows the front panel of the RMX 2000. The front panel
provides access to the RMX 2000 main CNTL modules, MPM/MPM+/
MPMx modules, Power Supply drawer, Status LEDs, and Fans.
MPM/MPM+/MPMx Cards & LEDs
ERR RDY ACT
ERR RDY ACT
RMX 2000
Figure 1-1 RMX 2000 Front Panel
HS
HS
ERR RDYACT HD HS
PWR
USB ports - not for Control Unit
customer use
Fan Drawer
MPM+80
FAN
STATUS
MPM+80
PWR
STATUS
CNTL
FANS
CNTL
Optional CPU &
& LEDs LEDs
Fan &
Power
Status
LEDs
1-9
