VQ Model A26K COUNTER INVADER Assembly Instructions Manual page 5

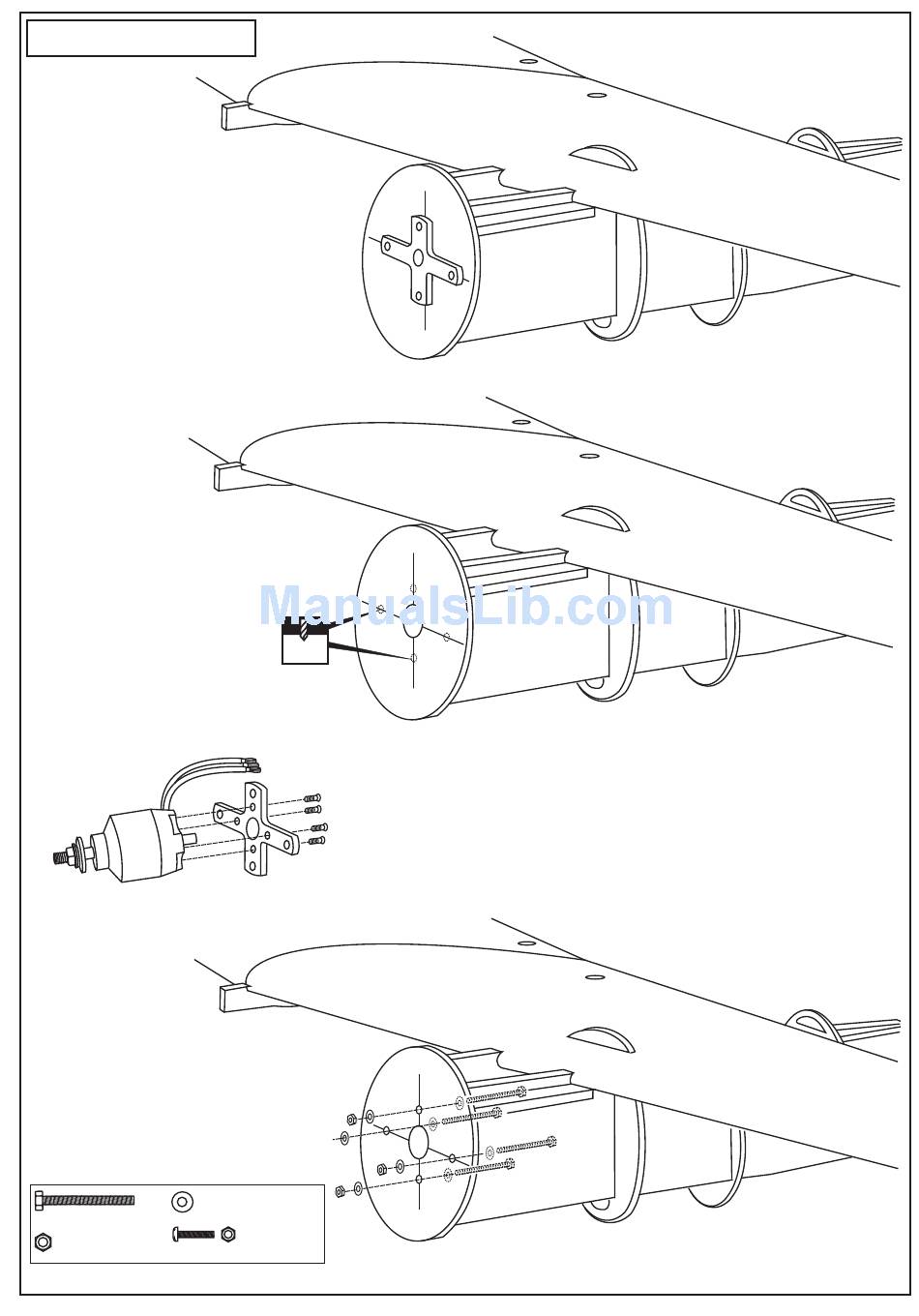

5.Electric motor
1
Using a aluminum motor mounting plate as
a template, mark the plywood motor
mounting plate where the four holes are
to be drilled .
2
Remove the aluminum motor mounting
plate and drill a 5/32"(4mm) hole through
the plywood at each of the four marks
marked .
4
Push the four 4x60mm bolts through the
fire-wall as shown.
4mm washer...16
4x60mm.......4
4mm nut....12
3mm screw/nut...4
4mm
5/32"
3
Attach the aluminum motor mounting plate on to the motor and
secure it in place with four screws ( included with motor set).
3
1
2
4
