VQ Model A26K COUNTER INVADER Assembly Instructions Manual page 14

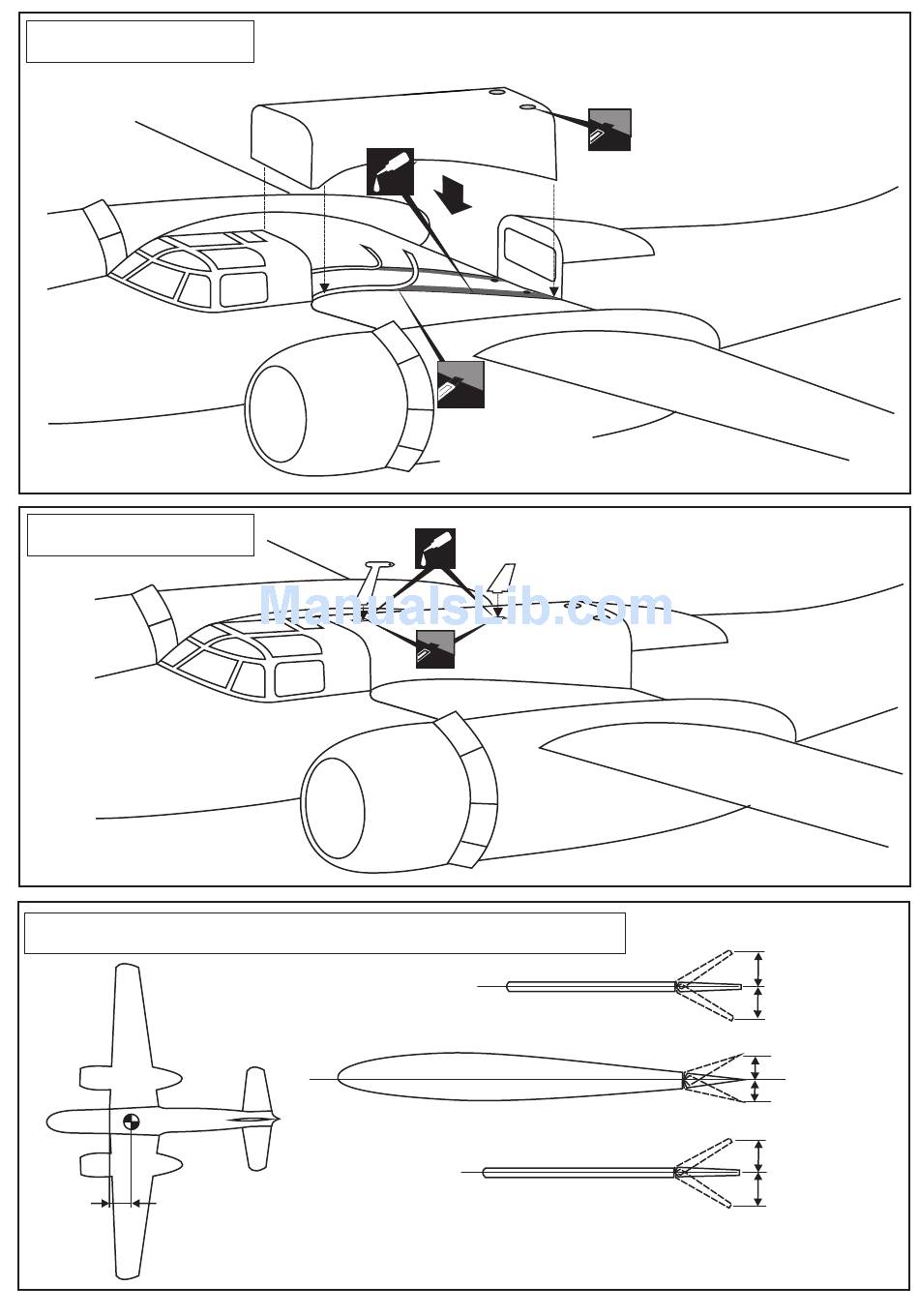

23- Wing shield
24- Decor / Dekor
25- Balance / Schwerpunkt - Ruderausschläge
4.3 in. (110mm)
When you are satisfied with the alignment, use a pencil trace around the bottom of the
wing shield where it meets the wing, Remove the wing shield from the wing, cut away
the covering inside the pencil lines. Not to cut into the wood.
CA
Cut away only the covering
CA
Schraffierte Stellen,
Bespannfolie vorsichtig
entfernen
Cut away only
the covering
RUDDER
SEITENRUDER
AILERON
QUERRUDER
ELEVATOR
HÖHENRUDER
Cut away only
the covering
¾ in (20mm)
¾ in (20mm)
½ in (13mm)
½ in (13mm)
½ in (13mm)
½ in (13mm)
