VQ Model A26K COUNTER INVADER Assembly Instructions Manual page 13

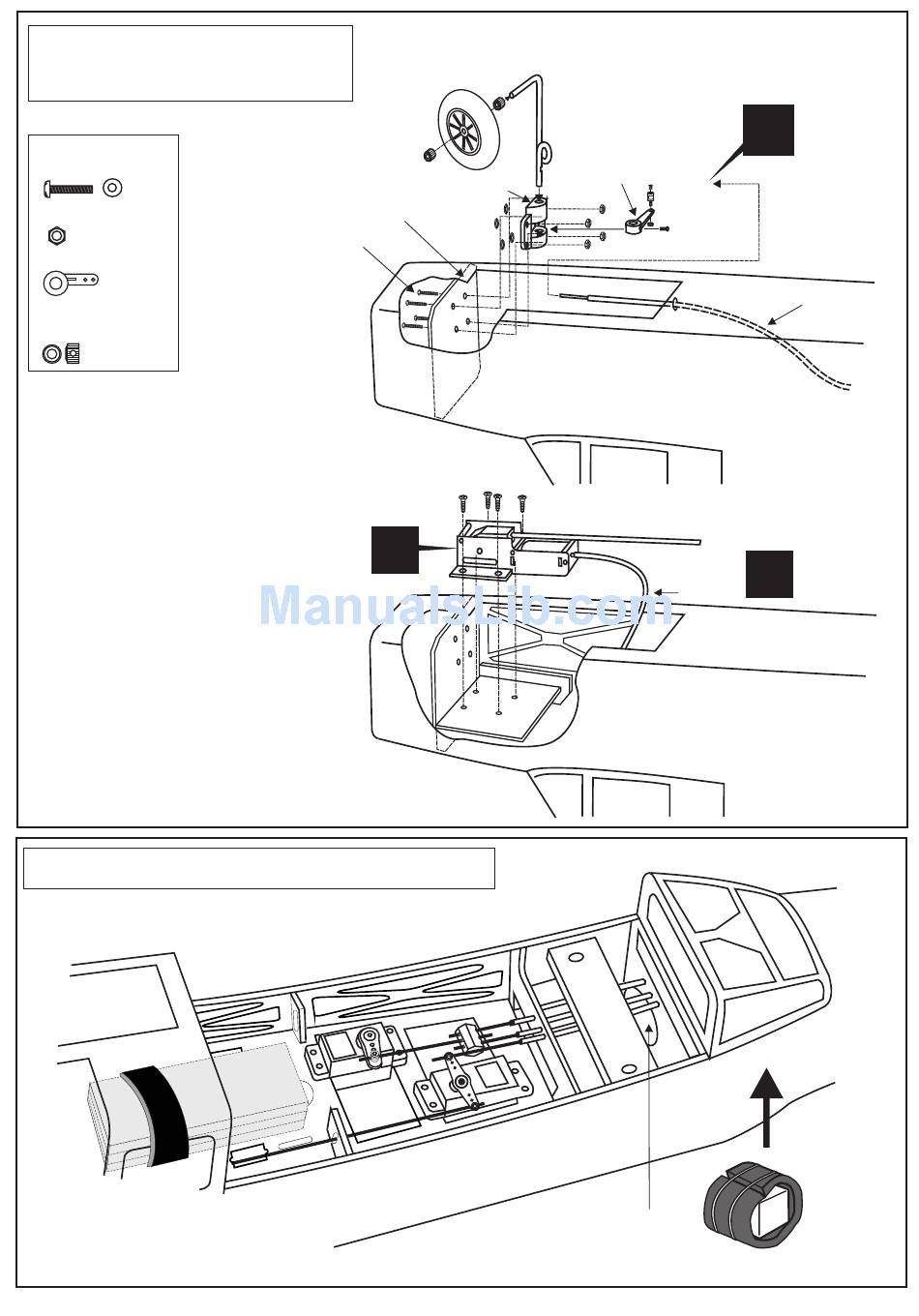

21- Nose gear (Fix gear)
Bugfahrwerk
1/8x19/32" screw
3x15mm schraube
...4
1/8"(3mm) nut
.................4
Nose gear arm
.................1
5/32" ID collar
4mm stellring
.............1
FUSELAGE BOTTOM VIEW
UNTERSICHT
Nose gear (air retract)
Bugfahrwek
FUSELAGE BOTTOM VIEW
UNTERSICHT
22- Installation R/C / Ruderanlenkung
5/32" ID collar
4mm stellring
Nose gear base (plastic)
Nose gear mount
3x15mm screw
X
4mm nose gear
Nose gear arm
1/8"(3mm) nut
Air tube
Air tank here
X
Nose gear pushrod
To rudder servo
X
Batterie
Empfänger
