Instruction manual / Montageanleitung
SPECIFICATIONS
Wingspan:.........................1630mm (63in.)
Length:................................1070mm (41in.)
Electric Motor:.....................See next pager
RTF Weight: 2.3Kg / 5.1lbs (Will vary with
Equipment Used).
Radio:....................6 Channel / 6 Servos
Function: Ailerons-Flaps-Elevator-Rudder
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen. Bei unsachgemässer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstätzung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.

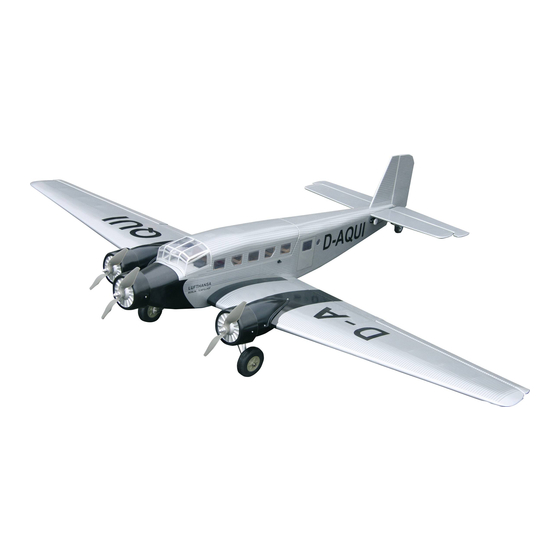

Radio control model / Flugmodell
ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY
TECHNISCHE DATEN
Spannweite:...................................1630mm
Lange:............................................1070mm
Elektroantrieb.............(siehe nächste Seite)
Brushless Motor:.............PULSAR P-15 X3
Fluggewicht:.......................................2.3Kg
Fernsteuerung................6 Kanal / 6 Servos
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VQ Model Junkers JU-52
Summary of Contents for VQ Model Junkers JU-52
- Page 1 Radio control model / Flugmodell ALL BALSA, PLYWOOD CONSTRUCTION AND ALMOST READY TO FLY Instruction manual / Montageanleitung TECHNISCHE DATEN SPECIFICATIONS Wingspan:......1630mm (63in.) Spannweite:........1630mm Length:........1070mm (41in.) Lange:..........1070mm Electric Motor:.....See next pager Elektroantrieb.....(siehe nächste Seite) RTF Weight: 2.3Kg / 5.1lbs (Will vary with Brushless Motor:.....PULSAR P-15 X3 Equipment Used).
-
Page 2: Conversion Table
Sonderzubehör (empfohlen) / Opional Accessories (recommended): # C5185 Servo MASTER S2112 ( x 2) # C6623 Servo MASTER S2112 / 4-Pack # 6745 LEMONRC LiPo Akku 4300 - 11,1V Minimum 6 channel radio LEMONRC LiPo battery with 6 mini servos 4300 - 11,1V # C6912 .Elevator x1... - Page 3 Carefully, slide the motor mount into the slot on the wing as shown. Ensuring that they are accurately aligned. Wing - top view Thin CA...
- Page 4 Vis 2x8mm ..10 1.5mm 1.5mm 1.5mm Plastic dummy engine Fiber glass cowl...
- Page 5 Prop hub 1.5mm Position the cowl so the distance from the prop hub to the plastic dummy engine is 3mm. Vis 2x8mm ..4 Cut away only the covering Cut away only the covering Cut away only the covering Cut away only the covering Wing - bottom view Linkage Stopper set...
- Page 6 3mm set Screw Thin CA Aileron and Flap pushrod D=5/64”(2mm) 2 mm Aileron and Flap servo Thin CA Thin CA Wooden dowel A= 8-10mm Plastic control horn WING .....2 Front-view Wooden dowel Thin CA Linkage Stopper set Wooden dowel ....2 175mm pushrod ..2 Cut away only...
- Page 7 When you are satisfied with the alignment, use a pencil to trace around the top and bottom of the stabilizer where it meets the fuselage (7A). Note: the rectangular hole on the center of the stabilizer must be coincidental with the center line of the fuselage. Remove the horizontal stabilizer from the fuselage.
- Page 8 Test-fit one end of the “U” torque rod into each elevator half before glue the elevator hinges to the horizontal stabilizer. Petroleum jelly Thin CA glue STABILIZER Hinge Apply a thin layer of machine oil or petroleum jelly to only the top and bottom of the trailing edge of the elevator, then push the elevator and its hinges into the hinge slots in the trailing edge of the horizontal stabilizer.
- Page 9 When you are satisfied with the alignment, use a pencil to trace around the right and left of the stabilizer where it meets the fuselage (9B). Remove the horizontal stabilizer from the fuselage. Using the sharp hobby knife, carefully cut away the covering inside the lines which were marked above (9C).
- Page 10 Petroleum jelly Thin CA glue STABILIZER Hinge Apply a thin layer of machine oil or petroleum jelly to only the top and bottom of the trailing edge of the rudder, then push the rudder and its hinges into the hinge slots in the trailing edge of the vertical stabilizer. When satisfied with the and alignment, hinge the rudder to the vertical stabilizer using CA glue.
- Page 11 Note: All holes for landing gear installation are pre-drilled at factory Cut away only the covering Note: All holes for landing gear installation are pre-drilled at factory 3mm set screw 3x12mm screw Nylon strap 3x12mm screw ....12 Nylon strap ..6 Stopper (metal) .....2 3mm set screw...
- Page 12 Secure the wing halves in place RIGHT WING HALVE using two 30x4mm nylon bolts. FUSELAGE - TOP VIEW LEFT WING HALVE 30x4mm nylon bolt ....2 Aluminum struts 4mm collar ..1 3mm collar ..1...
- Page 13 4mm collar 4mm collar 3mm collar Collar Stellring Stopper (metal) Note: Use 4mm and 3mm collar to secure the aluminum struts only. Fahrwerksdraht 2.5mm landing Collar 4mm collar gear Not to screw here Aluminum tube 4mm Main landing 4mm collar gear 3mm collar ..1...
- Page 14 Secure the top hatch in place using two 30x4mm bolts 30x4mm nylon bolt ....2 3mm set Screw Elevator and rudder pushrod D=5/64”(2mm) 2 mm Rudder servo Cut away only Elevator and the covering Rudder servo Rudder control horn ...1 Linkage Stopper set ....2 Elevator servo 175mm pushrod...
- Page 15 Cut around the cycles Lufthansa decal Ju-52 version Olympiade 1936 decal Decal for recover Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing.
