VQ Model A26K COUNTER INVADER Assembly Instructions Manual page 10

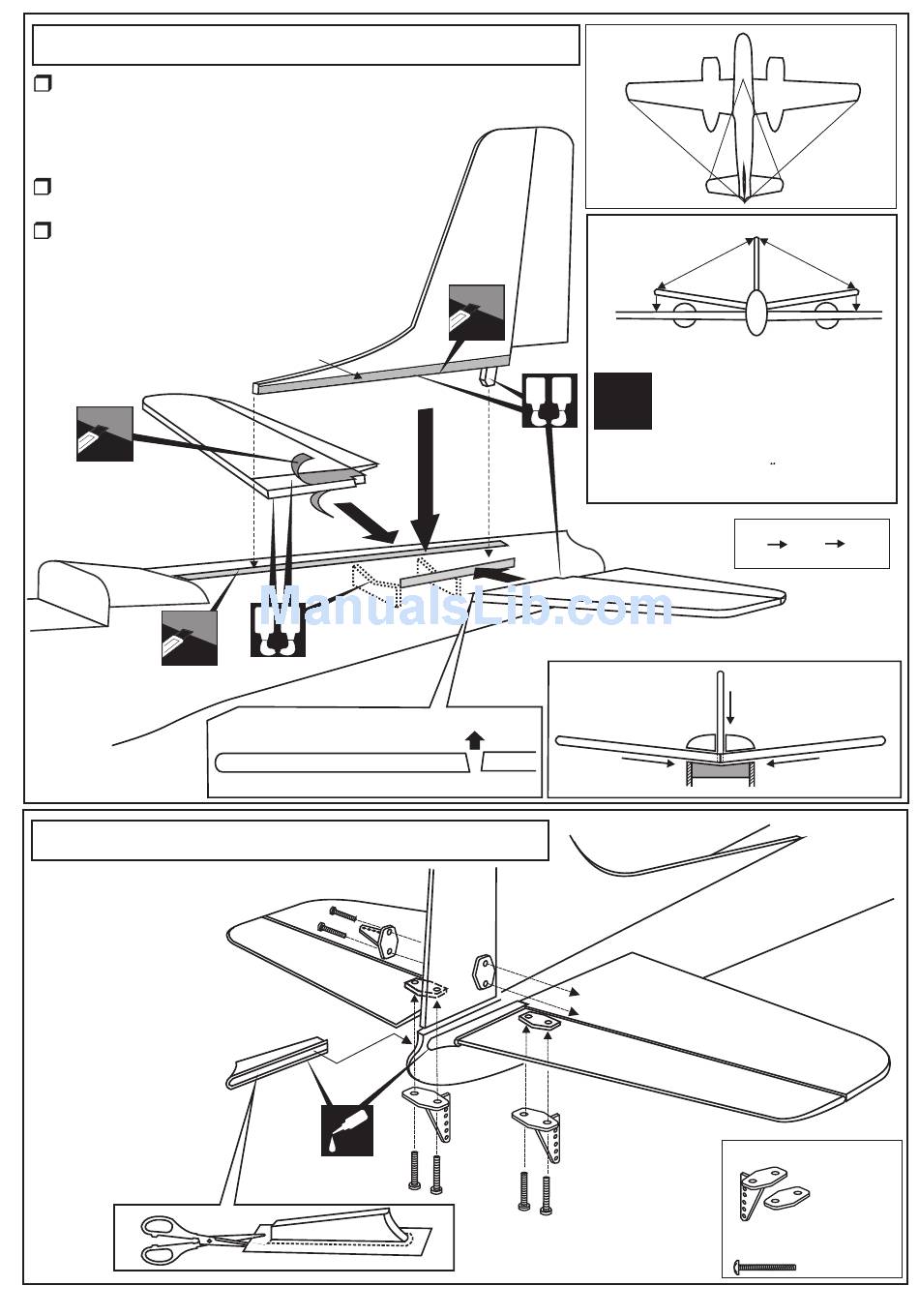

14- Stabilizers /
Trial fit each part before gluing . Be certain
that there are no gaps. If the parts will join,
but with a gaps, sand or trim the parts a
little at a time until the parts meet exactly
with no gaps.
When joining the stabilizer it is extremely
important to use plenty of epoxy (30 minutes)
Carefully slide the stabilizer onto the fuselage,
ensuring that they are accurately aligned,
Firmly press they are together, allowing the
excess epoxy run out. Using rubbing alcohol
and paper towel, clean off the excess
epoxy.
Cut away only the
covering both side
Cut away only the
covering both side
Schraffierte Stellen,
Bespannfolie vorsichtig
entfernen
Schraffierte Stellen,
Bespannfolie vorsichtig
entfernen
15- Control horn /
Höhenruder - Höhenleitwerk
L/R
1
A B
HORIZONTAL STABILIZER
Einbau RC-Ruderhorner
CA
C = C'
3
A B
!
Vergewissern Sie sich, sauber geklebt
zu haben Andernfalls konnen Probleme
mit der Flugeigenschaft auftreten !
2
TOP
Horizontal tail
BOTTOM
5/64x31/64" screw
2x12mm schraube
D D'
C
C'
A
B
A=A'
B=B'
Securely glue together. If
coming off during flights.
You lose control of your plane
1 2 3
Fin
Horizontal tail
Fuselage
Plastic control horn
5/64x31/64" screw
2x12mm schraube
....................6
D'
D
=
A'
B'
...............3
