VQ Model A26K COUNTER INVADER Assembly Instructions Manual page 3

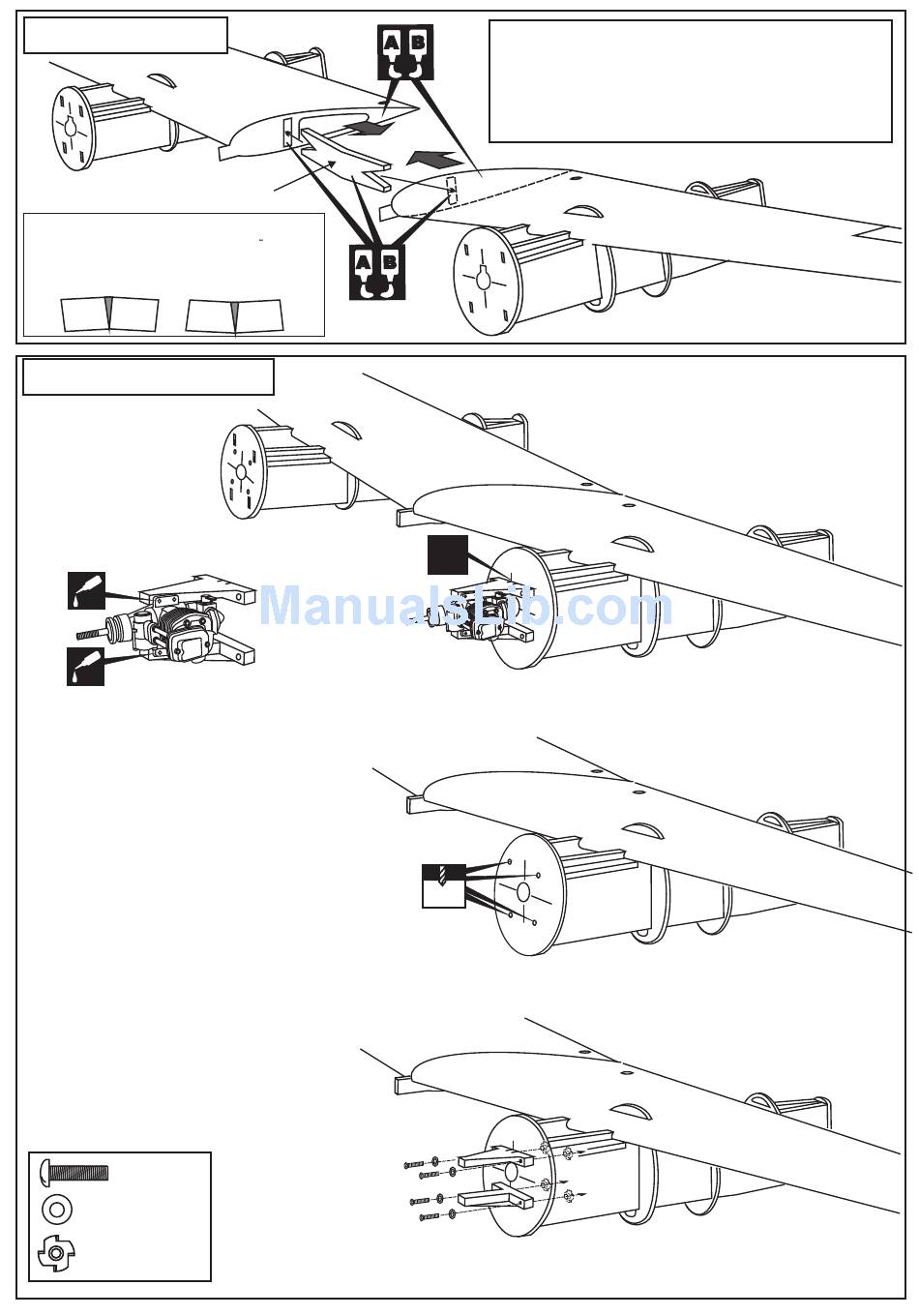

1- Wing / Fläche
Wing joinner
Tragflächenverbinder
Use epoxy glue to bury the opening
Nehmen Sie Epoxykleber, um die Tragflachen fest
miteinander zu Verbinden und streifen Sie den
herausquellenden Kleber nach dem Verbinden mit
einem fusselfreien Tuch SOFORT ab!
2.Engine / Motor
Set the engine on the engine mount and
1
secure it in place using little CA glue
CA
CA
Apply the engine mount on the fire wall
2
as shown (Align the mark on both mounts
with the mark on the fire wall).
3
Mark the mounting hole positions with
a felt tipped pen or pencil.
Remove the engine mount and drill four 4mm
4
holes through the
fire wall as shown.
Remove the engine out of the engine
5
mount, then secure the engine mount
to the fire wall with four 4x15mm screw.
4x15mm...(8)
Washer....(8)
Blind nut 4mm (8)
1
!
Securely glue together, If coming off during flights,
!
you lose control of your airplane which leads to
accidents !
Vergewissern Sie sich, sauber geklebt zu haben
!
Andernfalls konnen Probleme mit der
Flugeigenschaft auftreten !
!
2- 3
4mm
5/32"
4
5
