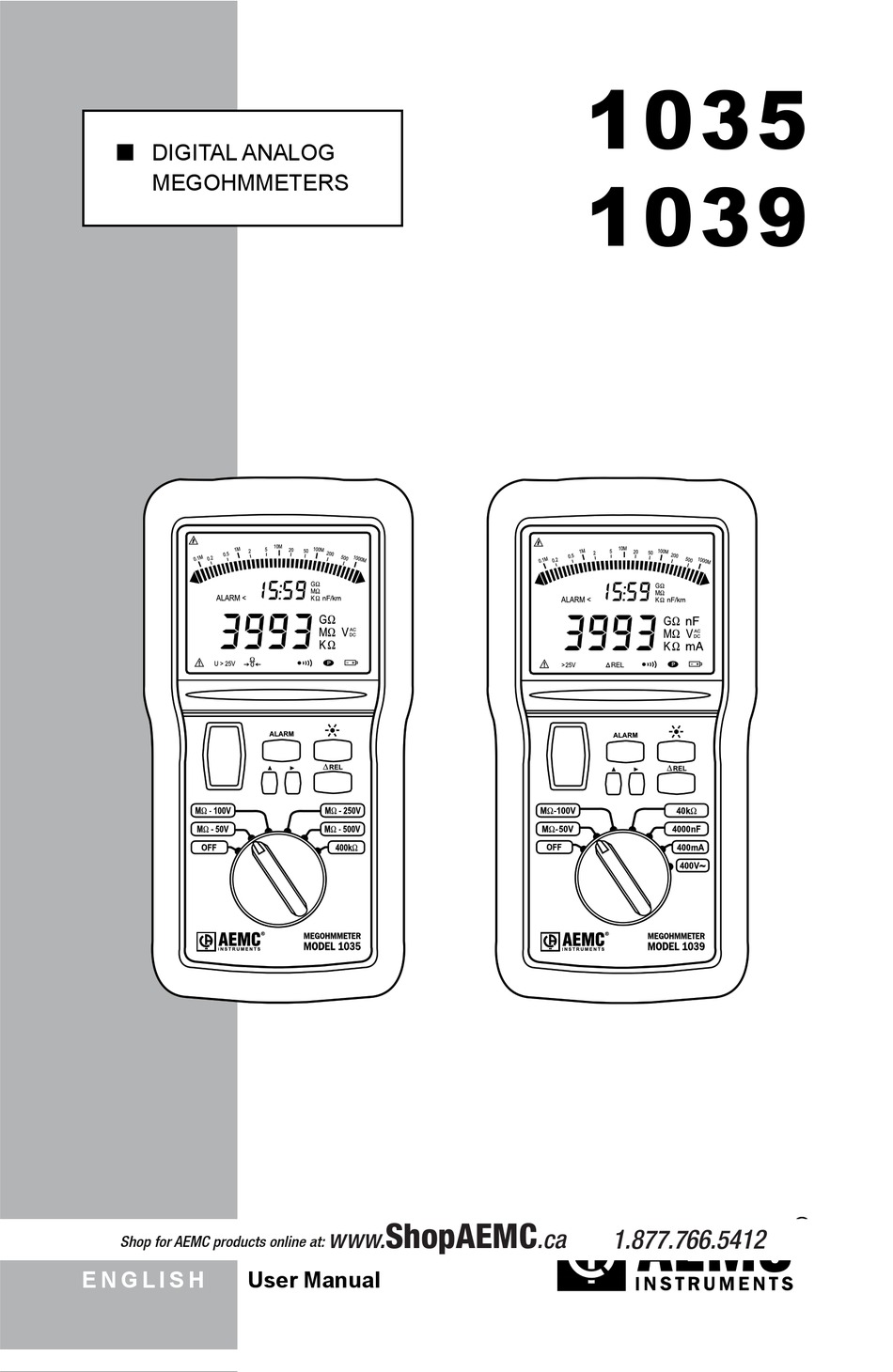

- Page 1 1035 DIGITAL ANALOG 1039 MEGOHMMETERS ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: E N G L I S H User Manual...
- Page 2 Catalog #: 2116.90 /2116.91 Model #: 1035 /1039 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux , Inc. ® d.b.a AEMC Instruments ® www.aemc.com ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at:...
-
Page 3: Table Of Contents
Resistance ..............13 2.6.4 Capacitance (1039) ............13 2.6.5 AC/DC Current (1039) ..........14 2.6.6 AC Voltage (1039) ............14 2.7 Special Functions ..............15 2.7.1 Battery Life Indication ..........15 2.7.2 Auto-Off ...............15 2.7.3 Battery Auto Test ............15 2.7.4 Fuse (1039) ..............16 ShopAEMC www. 1.877.766.5412 2.7.5 Buzzer .................16 Shop for AEMC products online at: 2.7.6 Alarm Setpoints ............17... - Page 4 4.7.2 Insulation Measurements on Cables ......28 4.7.3 Insulation Measurements on Motors ......29 5. MAINTENANCE ................30 5.1 Battery Replacement ..............30 5.2 Fuse Replacement (1039) ............30 5.3 Cleaning ..................30 5.4 Storage ...................30 Repair and Calibration ................31 Technical and Sales Assistance ............31 ShopAEMC www. 1.877.766.5412 Limited Warranty ...................32 Shop for AEMC products online at: Warranty Repairs ...................32...
-
Page 5: Introduction
• Tests are to be carried out only on non-energized circuits! Check for live circuits before making resistance measure- ments (safety check). • The Megohmmeter Models 1035 and 1039 are sources of high voltage, as is the sample connected to them. All persons performing or assisting in the tests must employ all safety precautions to prevent electrical shock to themselves and to others. -
Page 6: International Electrical Symbols
(<1000V) such as on primary overcurrent protection devices, ripple control units, or meters. Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the car- rier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. Do not use an instrument that appears to be damaged. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 7: Ordering Information
Includes soft carrying case, 2 color-coded leads, 1 black test probe, 2 alligator clips, 2 grip probes, batteries and user manual. Model 1035 Field Kit ............Cat. #2115.42 Includes meter, field case, 3 color-coded leads, black test probe, 3 alligator clips, 2 grip probes, remote test probe, batteries and user manual. -
Page 8: Product Features
• protection of the instrument against external voltage surges • operator safety by means of automatic discharge of the high voltage on the equipment tested • display of the difference compared to a measurement value in memory • measurement of the length of a telephone line according to its capacitance per km unit length (1039) • automatic shutdown of the instrument to save the batteries and indication of the battery charge • fuse testing by periodic checks during current measurement (1039) • a large backlit LCD screen with a wide range of indicators making it very easy for the user to read ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 9: Model 1035 Control Features
Model 1035 Control Features Figure 1 1. Safety terminals - Ø 4mm (marked “+” and “G”) and a 3-Point socket for connecting the remote control 2. Backlight liquid crystal display 3. Buttons: Yellow (to activate insulation measurement) ALARM, and ΔREL (see § 2.7) 4. 6-position switch: OFF, MΩ - 50V, MΩ - 100V, MΩ - 250V, MΩ - 500V, 400kΩ 5. Battery compartment and stand (not shown in drawing) ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 10: Model 1039 Control Features
Model 1039 Control Features Figure 2 1. Safety terminals - Ø 4mm (marked “mA”, “+” and “-”). Next to the “-” terminal, there are two additional contacts for connecting the remote control probe (3-Point connector). 2. Backlight liquid crystal display 3. Buttons: Yellow (to activate insulation measurement) ALARM, , and ΔREL (see § 2.7) 4. 7-position switch: OFF, MΩ - 50V, MΩ - 100V, 40kΩ, 4000nF, 400mA, 400V~ 5. Battery compartment and stand (not shown in the drawing) ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 11: Lcd Display Symbols
Low Limit Trigger Test Voltage On – Negative Value Refer to User Manual Fuse Open >25V Measured Voltage >25V Lead, Resistance Zeroing Active Buzzer Permanent Run – Auto-Off Disabled Low Battery nanoFarad Kilometers REL Relative Position BAT Batteries low – must be replaced Over Range - Over Load - - - Insulation < 10kΩ at 50V, < 20kΩ at 100V, < 50kΩ at 250V, < 100kΩ at 500V 2.4.2 Analog Bargraph Insulation > 1.1GΩ ShopAEMC Insulation < 70kΩ www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 12: Button Functions
- the tens digit, - the units digit, - the decimal point, - the alarm trigger (above or below the setting) - and it then returns to the measurement units. The capacitance per unit length in nF/km (with the button on the 1039). By pressing the ► button, you can make the following elements flash successively: the tens digit, - the units digit, - and it then returns to the tens digit. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 13: Scroll Cursor Button
1039: When the switch is on 4000nF, a long press on this button enables you to program the unit length value (see § 2.7.8). 2.5.6 REL Button A long press on this button enables you to memorize a value. The measurements that follow will be the positive or negative deviation compared with the value memorized (does not function for voltage on the MΩ positions). ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 14: Measurement Functions
If the measured insulation resistance is greater than 400MΩ (1039), 2 or 20GΩ (1035), the OL symbol is displayed on the dig- ital display instead of a value. When the measurement is greater than 1.1GΩ, the ► symbol lights up on the right-hand side of the bargraph. Similarly the digital measurement display indicates “- - -” if the insulation ShopAEMC resistance is less than: www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 15: Resistance
Model 1039: 10kΩ at 50V; 20kΩ at 100V Model 1035: 10kΩ at 50V; 20kΩ at 100V; 50kΩ at 250V; 100kΩ at 500V When the measurement is less than 70kΩ, only the ◄ symbol lights up on the left-hand side of the bargraph. To measure high insulation values, you are advised to use the “G” guard terminal to remove the influence of superficial leak currents and “hand capacitance”. 2.6.3 Resistance Resistance measurement corresponds to the 40kΩ position of the switch... -
Page 16: Ac/Dc Current (1039)
If the current measurement is greater than 400mA , the OL symbol is displayed on the display. The MN211 Current Probe may be used to extend the measurement range to 200A 2.6.6 AC Voltage (1039) AC voltage measurement corresponds to the V~ position of the switch. The measurement is shown on the display accompanied by the V symbol. In this function, the DC component is not measured. If the voltage measurement is greater than 400V , the OL symbol is displayed on the digital measurement display. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 17: Special Functions
Battery Auto Test The battery supply voltage is measured automatically every second. The battery voltage range for correct operation is 7V to 10V. There are four possible cases: • The voltage is correct: Nothing is displayed. • The voltage is < 7.1V: the symbol flashes. Remaining battery life is limited. • The voltage is < 6.9V: the symbol remains lit. Measurement accuracy is no longer assured. Replace the batteries. • The voltage is close to 6.7V: the digital display indicates BAT and ShopAEMC then, after 5 seconds, the shutdown buzzer sounds, and the Auto www. 1.877.766.5412 Shop for AEMC products online at: OFF function is activated. The instrument shuts down. Digital Analog Megohmmeter Models 1035/1039... -
Page 18: Fuse (1039)
THE DIFFERENT SOUNDS When the symbol is displayed, the buzzer is active. It gives out differ- ent sounds, depending on the operation or warning. • Short buzz (65 ms at 2kHz): - push on a button - auto OFF • Continuous buzz (at 2kHz): - measurement is lower than the minimum setpoint - measurement is higher than the maximum setpoint • Short, higher buzz (65ms at 4kHz): - when a disabled (inactive) button is pressed (except the yellow test button) • Repeated high buzzes (at 4kHz): - the detected voltage (safety check) at the sample is greater than 25V and the yellow button is pushed ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 19: Alarm Setpoints
If the programmed setpoint is too high, it is corrected when it is stored in the memory: the maximum value is entered. For exam- ple, a 2GΩ insulation threshold will be stored in the memory as 399.9MΩ on the 1039, while for resistance measurement 700kΩ will become 399.9kΩ on the 1035. If the setpoint has been improperly input, it is corrected when it is stored in the memory: For example, 002MΩ will become 2.00MΩ. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... - Page 20 Examples in insulation measurement: • If an upper setpoint of 100MΩ is active, the display indicates “ALARM > 100.0MΩ”. • If the measurement exceeds this value, a continuous beep will be triggered and the whole digital threshold display will flash. • If a lower setpoint of 100MΩ is active, the display indicates “ALARM < 100.0MΩ”. • If the measurement falls below this value, a continuous beep will be triggered and the whole digital threshold display will flash. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039...
-
Page 21: Relative Measurements ( Rel)
WARNING: During programming, if you change the switch position, you lose what you have just done. You can quit the programming mode and record the value by another long press on the button. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 22: Specifications
0.0 to 399.9V 400 to 600V AC/DC AC/DC Resolution 0.1V Accuracy ±3% R ± 1ct Input Impedance 6MΩ (1039) - 300kΩ (1035) 3.1.2 Insulation Measurement Range: Model 1039: 50V 10kΩ to 400MΩ 100V 20kΩ to 400MΩ Model 1035: 50V 10kΩ to 2GΩ... -
Page 23: Resistance
7V ≤ V open ≤ 9V Open Circuit Voltage 3.1.4 Capacitance (1039) Measurement Range: 0 to 4000nF Range 0.00 to 399.9nF 400 to 3999nF Resolution 0.1nF Accuracy ±3% ± 2cts ±3% ± 1ct Measurement Current 100µA ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 24: Distance (1039)
MΩ 100V (R = 100kΩ) Insulation (1035) 160mA 7,200 5-second measurements MΩ 250V (R = 250kΩ) Insulation (1035) 200mA 3,800 5-second measurements ShopAEMC www. 1.877.766.5412 MΩ 500V (R = 500kΩ) Shop for AEMC products online at: * Add approximately 45mA for the backlighting. Digital Analog Megohmmeter Models 1035/1039... -
Page 25: Mechanical Specifications
1% ± 1ct/V 2% ± 2cts/V Frequency (voltmeter DC and >10V) 15 to 400Hz Capacity in parallel to ShopAEMC 0 to 5µF at nominal current 5% ± 1ct 10% ± 2cts www. 1.877.766.5412 the resistance Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 26: Safety Specifications
Limitation The megohmmeters are protected on all ranges against a voltage of 600V , applied permanently between any two terminals. AC/DC The current input of the 1039 accepts 0.63A and is protected by the fuse above this value. Safety Specifications Electrical Safety (according to IEC 1010-1 +A2 (Nov. ‘95), IEC 61557 (Feb. ‘97), VDE 413) Double Insulation 600Vrms, Cat. III, Pollution Degree 2 Electromagnetic Compatibility: Emissivity: NF EN 55 081-1 (June ‘92) Immunity: NF EN 55 082-1 (Jan. ‘98) IP44 according to NF EN 60529 (Oct. ‘92) IK04 according to NF EN 50102 (June ‘95) ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 27: Operation
• Before the yellow test button is pressed, the instrument operates as a voltmeter (safety check) to ensure that there is no dangerous voltage at the sample. • Press the yellow test button. Keep it pressed down until the measure- ment is displayed, or as long as needed. If released, the insulation test will stop. The yellow button on the remote control probe works the same way as the yellow test button on the megohmmeter. • To measure high insulation values (> 1GΩ), you are advised to use the “G” guard terminal to remove the influence of superficial leak cur- ShopAEMC www. 1.877.766.5412 rents and a hands free carrying case. In this case, it is preferable to Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 28: Resistance Measurement
Capacitance Measurement (1039) • Turn the megohmmeter ON by setting the switch to 4000nF. • Connect the + and - leads to the measurement points. • Note the capacitance value displayed and the length of the line after programming its capacitance per unit length. AC/DC Current Measurement (1039) • Turn the megohmmeter ON by setting the switch to 400mA. • Connect the leads from the mA and - terminals to the measurement ShopAEMC www. 1.877.766.5412 points. Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 29: Ac Voltage Measurement (1039)
• Record the current value displayed. Connecting the MN211 current probe accessory to the mA Amp terminals will extend the measurement range to 200A AC Voltage Measurement (1039) • Turn the megohmmeter ON by setting the switch to V~. • Connect the + and - leads to the measurement points. • Note the voltage value displayed. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 30: Application Examples
Application Examples 4.7.1 Insulation Measurements on Installations – – Figure 3 4.7.2 Insulation Measurements on Cables ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Figure 4 Digital Analog Megohmmeter Models 1035/1039... -
Page 31: Insulation Measurements On Motors
4.7.3 Insulation Measurements on Motors – Motor Figure 5 Motor Windings – – ShopAEMC Figure 6 www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 32: Maintenance
Disconnect the instrument from any power source. Use a soft cloth slightly moistened with soapy water. Rinse with a damp cloth and quickly dry with a dry cloth or forced dry air. Do not use alcohol, solvents or any hydrocarbon material. Storage ShopAEMC www. 1.877.766.5412 If the instrument is to be unused for an extended period (more than 2 Shop for AEMC products online at: months), remove the batteries and store them separately. Digital Analog Megohmmeter Models 1035/1039... -
Page 33: Repair And Calibration
Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, mail, fax or e-mail our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship instruments to our Foxborough, MA address. ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at: Digital Analog Megohmmeter Models 1035/1039... -
Page 34: Limited Warranty
Instruments, not by the distributor from ® whom it was purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC ® Instruments. For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com. - Page 35 ShopAEMC www. 1.877.766.5412 Shop for AEMC products online at:...
