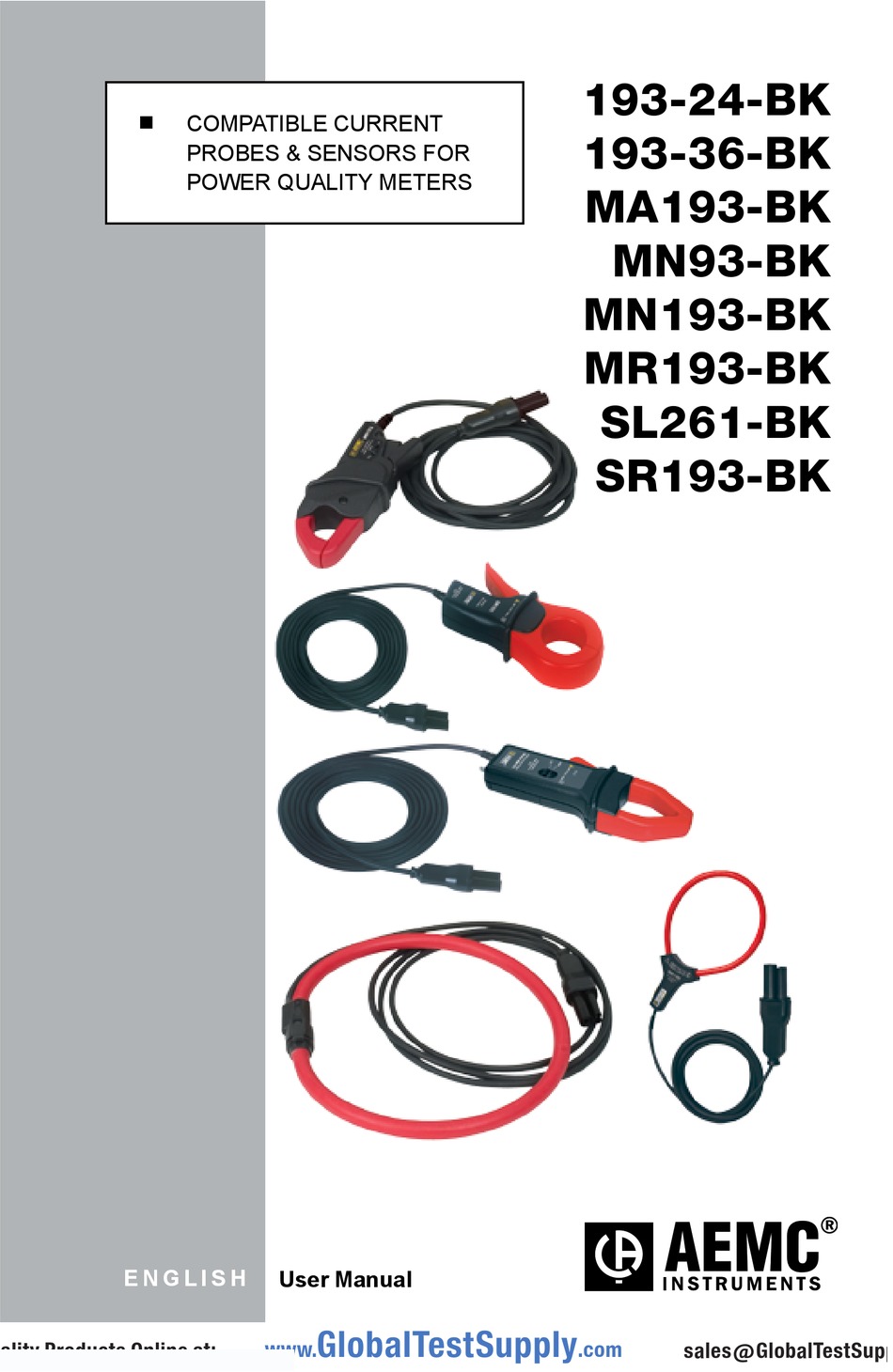

- Page 1 193-24-BK COMPATIBLE CURRENT 193-36-BK PROBES & SENSORS FOR POWER QUALITY METERS MA193-BK MN93-BK MN193-BK MR193-BK SL261-BK SR193-BK E N G L I S H User Manual GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
- Page 2 Thank you for purchasing an AEMC current probe. For best results from your instrument and for your safety, read the enclosed operating instructions carefully and comply with the precautions for use. These products must be only used by qualified and trained users.
-
Page 3: Precautions Before Use
PRecAutioNS BeFoRe uSe The protection assured by the current probe can be compromised if it is used in a way that is not recommended by the manufacturer. ■ Comply with the rated maximum voltage and current, and the measurement category. Do not use the current probe on networks where the voltage or category exceeds those specified. -
Page 4: Table Of Contents
1. iNtRoDuctioN ..............3 1.1 Receiving Your Shipment..............3 1.2 Ordering Information ................3 2. PRoDuct FeAtuReS ............4 2.1 Control Features ...................4 2.1.1 AmpFlex Model 193-24-BK & 193-36-BK .......4 ® 2.1.2 MiniFlex Model MA193 ............5 ® 2.1.3 AC Current Probe Model MN93 & MN193 ........6 2.1.4 AC Current Probe Model MR193 ..........7... -
Page 5: Introduction
Save the damaged packing container to substantiate your claim. 1.2 ordering information NOTE: The current probes in this manual are compatible only with AEMC Models ® 8220, 8230, 3945-B, 8335 and PEL100 Series. -
Page 6: Product Features
2. PRoDuct FeAtuReS 2.1 control Features 2.1.1 AmpFlex Model 193-24-BK & 193-36-BK ® Flexible sensor Sensor opening connector Shielded lead Custom 4-pin input connector Custom Current Probes & Sensors GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 7: Miniflex ® Model Ma193
2.1.2 MiniFlex Model MA193 ® Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector Custom Current Probes & Sensors GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 8: Ac Current Probe Model Mn93 & Mn193
2.1.3 Ac current Probe Model MN93 & MN193 Jaws Protective guard Two-position range switch (MN93 only) Jaw opening lever Shielded lead Custom 4-pin input connector Custom Current Probes & Sensors GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 9: Ac Current Probe Model Mr193
2.1.4 Ac current Probe Model MR193 Jaws Protective guard Jaw opening lever Two-position range switch Shielded lead Zero adjustment Custom 4-pin input connector Custom Current Probes & Sensors GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 10: Ac Current Probe Model Sl261
2.1.5 Ac current Probe Model SL261 Jaws Zero adjust knob Range selection switch Battery compartment screw Battery compartment cover BNC Adapter (sold separately - Cat. #2140.40) Custom Current Probes & Sensors GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 11: Ac Current Probe Model Sr193
2.1.6 Ac current Probe Model SR193 Jaws Protective guard Jaw opening lever Shielded lead Custom 4-pin input connector Custom Current Probes & Sensors GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp... -
Page 12: Operation
3. oPeRAtioN The current probes and flexible sensors are used to measure the current flowing in a conductor or bus bar without opening the circuit. They also insulate the user from dangerous voltages in the circuit. The choice of current probe or sensor to be used depends on the amperage to be measured and the diameter of the cables or size of the bus bar. - Page 13 For Probes: ■ Press the jaw opening lever on the probe to open the jaws. ■ Clamp the probe around the conductor to be tested. For best results, center the conductor in the jaws of the clamp. For AmpFlex and MiniFlex Sensors: ®...
-
Page 14: Specifications
4. SPeciFicAtioNS 4.1 electrical The current probes listed are compatible with AEMC Models 8220, 8230, 3945-B, ® 8335 and PEL 100 Series. NOTE: The measurement ranges specified are for the probes and sensors. In some cases, they may differ from the ranges that can be measured by the instrument with which they are used with. -
Page 15: Environmental
Degree of pollution: 2 Altitude: < 2000 m 4.3 Mechanical Model Cable Length Dimensions Weight (nominal) AmpFlex 193-24-BK 6.6 x 6.2 x .98" ® 10 ft (3m) 7.7 oz (270g) 24" (610mm) (170 x 158 x 25mm) AmpFlex 193-36-BK 11 x 10.4 x .98"... - Page 16 Maximum applicable voltage: AmpFlex : 1000V CAT III; 600V CAT IV ® MiniFlex : 1000V CAT III; 600V CAT IV ® MN93 / MN193: 600V CAT III; 300V CAT IV MR193: 600V CAT III; 300V CAT IV SL261: 600V CAT III SR193: 1000V CAT III;...
-
Page 17: Maintenance
5. MAiNteNANce Use only factory specified replacement parts. AEMC will not be held responsible ® for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. CAUTION: Risk of electric shock. Disconnect the instrument from any source of electricity. -
Page 18: Repair And Calibration
If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ®... -
Page 19: Limited Warranty
Instruments, not by the distributor from whom it was ® purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC Instruments. ® Full warranty coverage and product registration is available on our website at www.aemc.com/warranty.html. - Page 20 03/13 99-MAN 100391 v1 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com GlobalTestSupply www. .com uality Products Online at: sales@GlobalTestSupp...
