- Page 1 193-24-BK Current Probes & Sensors 193-36-BK (For Power Quality Meters & Power Energy Loggers) 196A-24-BK MA193-10-BK MA193-14-BK MN93-BK MN193-BK MR193-BK SL261 SR193-BK E N G L I S H User Manual...
- Page 2 Copyright © Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed...
- Page 3 Thank you for purchasing an AEMC current probe. For best results from your instrument and for your safety, read the enclosed operating instructions carefully and comply with the precautions for use. These products must be only used by qualified and trained users.
- Page 4 PRECAUTIONS BEFORE USE The protection assured by the current probe can be compromised if it is used in a way that is not recommended by the manufacturer. ■ Comply with the rated maximum voltage and current, and the measurement category. Do not use the current probe on networks where the voltage or category exceeds those specified.
-
Page 5: Table Of Contents
1. INTRODUCTION ..............4 1.1 Receiving Your Shipment..............4 1.2 Ordering Information ................4 2. PRODUCT FEATURES ............5 2.1 Control Features ...................5 2.1.1 AmpFlex Models 193-24-BK, 193-36-BK & 196-24-BK ..5 ® 2.1.2 MiniFlex Model MA193-BK .............6 ® 2.1.3 AC/DC Current Probe Model J93-BK ........7 2.1.4 AC Current Probe Models MN93-BK &... -
Page 6: Introduction
Save the damaged packing container to substantiate your claim. 1.2 Ordering Information NOTE: The current probes in this manual are compatible only with AEMC Power ® Analyzers (see § 4 for meter compatibility). -
Page 7: Product Features

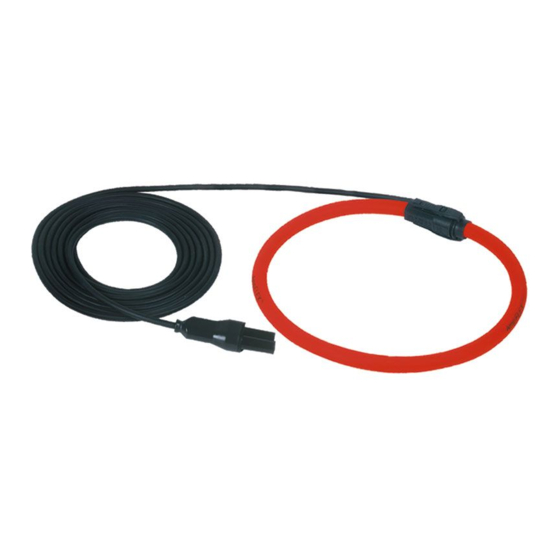

2. PRODUCT FEATURES 2.1 Control Features 2.1.1 AmpFlex Models 193-24-BK, 193-36-BK & 196A-24-BK ® Flexible sensor Sensor opening connector Shielded lead Custom 4-pin input connector (available standard or IP 67 compliant, depending on instrument) Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 8: Miniflex Model Ma193-Bk
2.1.2 MiniFlex Model MA193-BK ® Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 9: Ac/Dc Current Probe Model J93-Bk
2.1.3 AC/DC Current Probe Model J93-BK ZERO 300 V CA T IV 600 V CA T III Jaws 4-point CA connector Safety guard Zero adjustment knob Power ON /Low battery indicator Three-position switch: ON, OFF, battery test Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 10: Ac Current Probe Models Mn93-Bk & Mn193-Bk
2.1.4 AC Current Probe Models MN93-BK & MN193-BK Jaws Protective guard Two-position range switch (MN193-BK only) Jaw opening lever Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 11: Ac Current Probe Model Mr193-Bk
2.1.5 AC Current Probe Model MR193-BK Jaws Protective guard Jaw opening lever Two-position range switch Shielded lead Zero adjustment Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 12: Ac Current Probe Model Sl261
2.1.6 AC Current Probe Model SL261 Jaws Zero adjust knob Range selection switch Battery compartment screw Battery compartment cover BNC Adapter (sold separately - Cat. #2140.40) Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 13: Ac Current Probe Model Sr193-Bk
2.1.7 AC Current Probe Model SR193-BK Jaws Protective guard Jaw opening lever Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 14: Operation
3. OPERATION The current probes and flexible sensors are used to measure the current flowing in a conductor or bus bar without opening the circuit. They also insulate the user from dangerous voltages in the circuit. The choice of current probe or sensor to be used depends on the amperage to be measured and the diameter of the cables or size of the bus bar. - Page 15 For Probes: ■ Press the jaw opening lever on the probe to open the jaws. ■ Clamp the probe around the conductor to be tested. For best results, center the conductor in the jaws of the clamp. For AmpFlex and MiniFlex Sensors: ®...
-
Page 16: Specifications
For complete specifications: Refer to the product user manual that is supplied with each compatible instrument. Model Measurement Range Compatibility AmpFlex 193-24-BK 200mA to 10kA ® All PowerPads and PEL 100 Series 24" (610mm) (12,000A) AmpFlex... -
Page 17: Environmental
Degree of pollution: 2 Altitude: < 2000 m 4.3 Mechanical Clamping Lead Length Model Dimensions Weight Diameter (nominal) AmpFlex 193-24-BK 6.6 x 6.2 x 0.98" ® 7.7 oz 10 ft (3m) (170 x 158 x 24" (610mm) 7.64" (190mm) (270g) 25mm) AmpFlex 193-36-BK 11 x 10.4 x 0.98"... -
Page 18: Safety
4.4 Safety Protection index IP 40 for the probes and IP 30 jaws open, according to IEC 60 529 ■ IP 65 for the AmpFlex according to IEC 60 529 ® ■ IK 04 according to IEC 50102 Drop test: According to IEC 61010-1 Electrical safety according to IEC 61010-2-032. -
Page 19: Maintenance
5. MAINTENANCE Use only factory specified replacement parts. AEMC will not be held responsible ® for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. CAUTION: Risk of electric shock. Disconnect the instrument from any source of electricity. -
Page 20: Model J93-Bk
5.2.3 Model J93-BK ■ Insert a tool, not more than 3mm in diameter, in the hole in the battery compartment cover. ■ Push to unlock the battery compartment cover, then slide it off. ■ Remove it completely by hand. ■ Remove the battery and the shim from the compartment. ■... -
Page 21: Repair And Calibration
If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ®... -
Page 22: Limited Warranty
Instruments, not by the distributor from whom it ® was purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC Instruments. ® Full warranty coverage and product registration is available on our website at www.aemc.com/warranty.html. - Page 23 Notes:...
- Page 24 10/21 99-MAN 100391 v10 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
