Page 5: Precautions For Use
PRECAUTIONS FOR USE The protection assured by the current probe can be compromised if it is used in a way that is not recommended by the manufacturer. Comply with the rated maximum voltage and current, and the measurement category. Do not use the current probe on networks where the voltage or Comply with the conditions of use (e.g. - Page 6 TABLE OF CONTENTS 1.1 Receiving Your Shipment..............7 1.2 Ordering Information................7 2.1 Control Features ...................8 2.1.1 AmpFlex Models 193-24-BK, 193-36-BK & 196A-24-BK ..8 ® 2.1.2 MiniFlex Model MA193-BK .............9 ® 2.1.3 MiniFlex ® Model MA194-BK ...........10 2.1.4 AC/DC Current Probe Model E94...........11 2.1.5 AC Current Probe Models MN93-BK &...
- Page 7 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

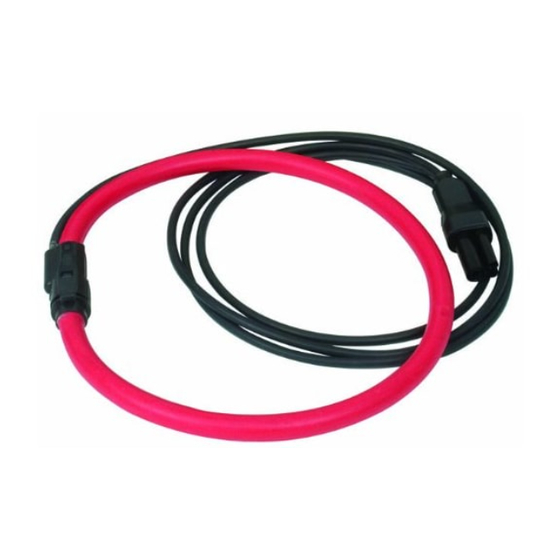

- Page 8 ® Flexible sensor Sensor opening connector Shielded lead Custom 4-pin input connector (available standard or IP 67 compliant, depending on instrument) Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 9 ® Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 10 ® Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 11 6 0 0 V CAT I I I Z E RO 10 A 100 A Mobile jaw Fixed jaw Guard Mobile arm Fixed arm Reset button ON and OL indicators Two-position slide switch 10. Special 4-point plug 11. Shielded cord Current Probes &...
- Page 12 Jaws Protective guard Two-position range switch (MN193-BK only) Jaw opening lever Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 13 Jaws Protective guard Jaw opening lever Two-position range switch Shielded lead Zero adjustment Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 14 Jaws Zero adjust knob Range selection switch Battery compartment screw Battery compartment cover BNC Adapter (sold separately - Cat. #2140.40) Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 15 Jaws Protective guard Jaw opening lever Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 16 Fixed arm Detachable arm Special 4-point plug Trigger Shielded cord Current Probes & Sensors for Power Quality Meters and Power Energy Loggers GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 18 Press the jaw opening lever on the probe to open the jaws. Clamp the probe around the conductor to be tested. For best results, center the conductor in the jaws of the clamp. ® ® AmpFlex ® : Press simultaneously on both sides of the opening connector. MiniFlex ®...
- Page 19 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 20 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 21 Degree of pollution: 2 Altitude: < 2000 m Mechanical 193-24-BK 10 ft 7.64 in (6.6 x 6.2 x 0.98) in 7.7 oz ® 24 in (610 mm) (3 m) (190 mm) (170 x 158 x 25) mm (270 g) 193-36-BK 10 ft 11.46 in...
- Page 22 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 23: Maintenance
MAINTENANCE instruments will not be ® held responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. CAUTION: Use a soft cloth, dampened with soapy water. Rinse with a damp cloth and dry rapidly with a dry cloth. - Page 24 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
