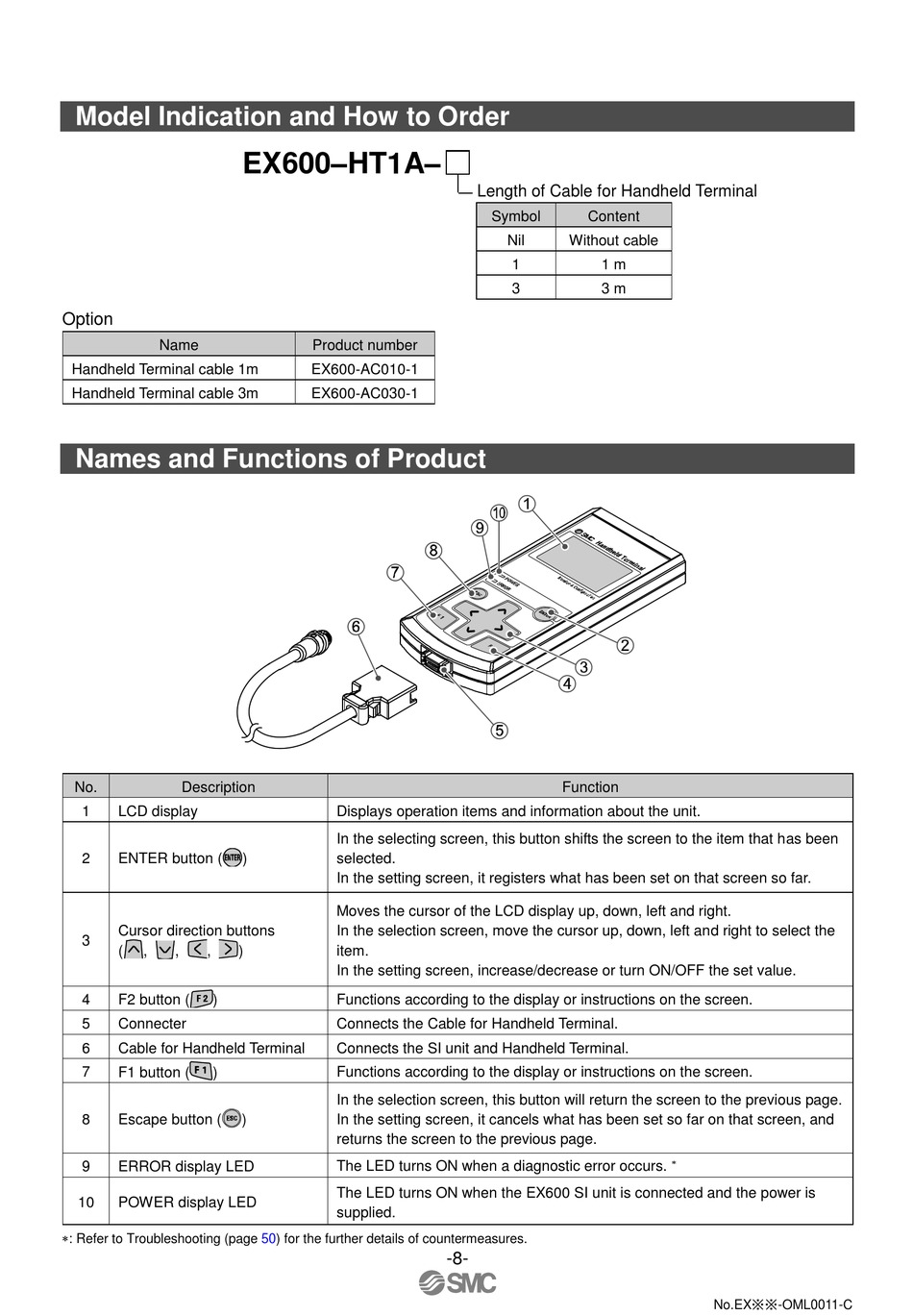

Model Indication and How to Order

Option
Name
Handheld Terminal cable 1m
Handheld Terminal cable 3m

Names and Functions of Product

No. Description
1 LCD display
2 ENTER button (
Cursor direction buttons
3
( , , ,
4 F2 button ( )
5 Connecter
6 Cable for Handheld Terminal
7 F1 button ( )
8 Escape button (
9 ERROR display LED
10 POWER display LED
: Refer to Troubleshooting (page 50) for the further details of countermeasures.
EX600–HT1A–
Product number
EX600-AC010-1
EX600-AC030-1
Displays operation items and information about the unit.
In the selecting screen, this button shifts the screen to the item that has been
) selected.
In the setting screen, it registers what has been set on that screen so far.
Moves the cursor of the LCD display up, down, left and right.
In the selection screen, move the cursor up, down, left and right to select the
) item.
In the setting screen, increase/decrease or turn ON/OFF the set value.
Functions according to the display or instructions on the screen.
Connects the Cable for Handheld Terminal.
Connects the SI unit and Handheld Terminal.
Functions according to the display or instructions on the screen.
In the selection screen, this button will return the screen to the previous page.
) In the setting screen, it cancels what has been set so far on that screen, and
returns the screen to the previous page.
The LED turns ON when a diagnostic error occurs.
The LED turns ON when the EX600 SI unit is connected and the power is
supplied.
Length of Cable for Handheld Terminal
Symbol Content
Nil Without cable
1 1 m
3 3 m
