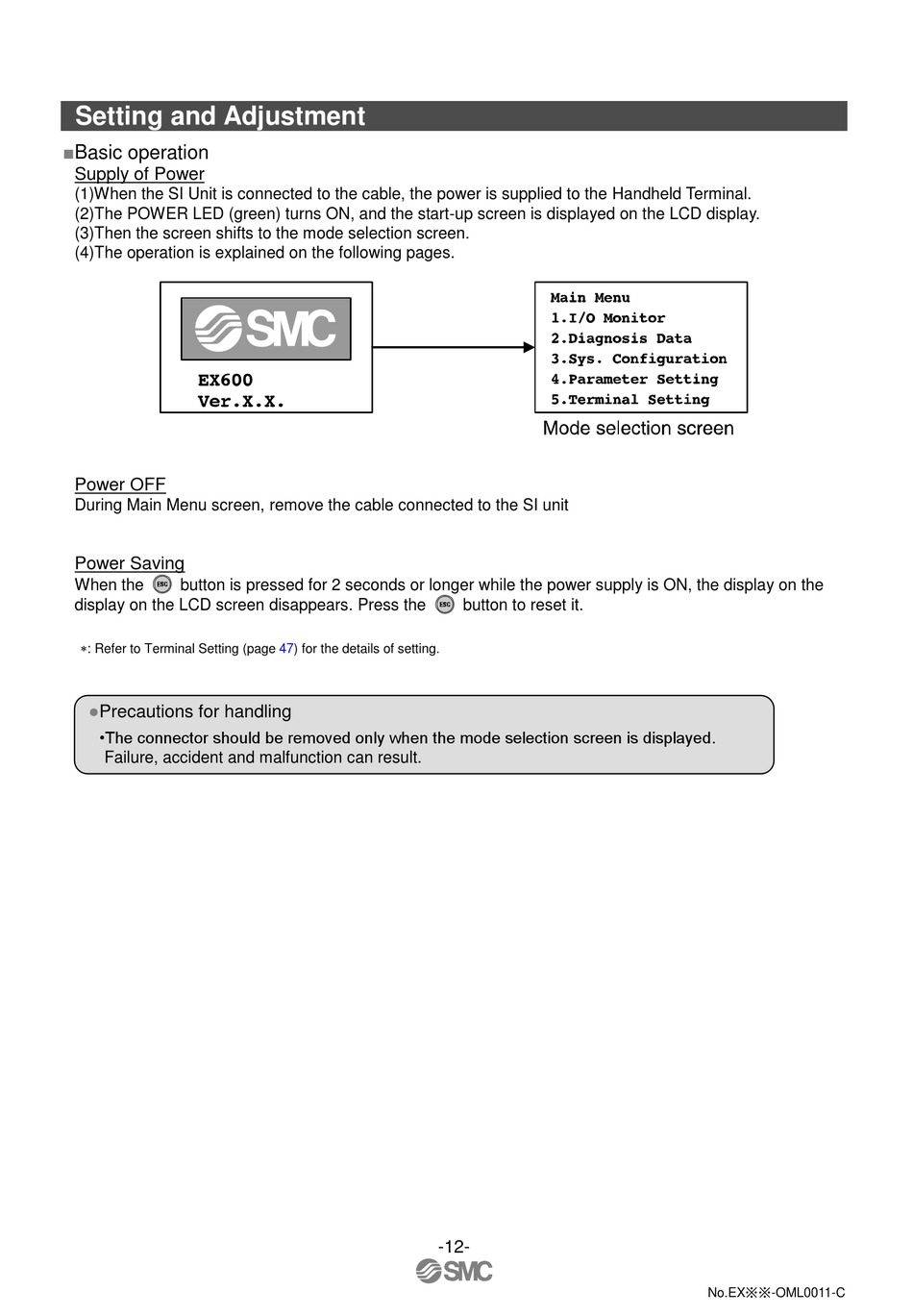

Setting and Adjustment

■Basic operation

Supply of Power
(1)When the SI Unit is connected to the cable, the power is supplied to the Handheld Terminal.
(2)The POWER LED (green) turns ON, and the start-up screen is displayed on the LCD display.
(3)Then the screen shifts to the mode selection screen.
(4)The operation is explained on the following pages.
Power OFF
During Main Menu screen, remove the cable connected to the SI unit
Power Saving
When the button is pressed for 2 seconds or longer while the power supply is ON, the display on the
display on the LCD screen disappears. Press the button to reset it.
: Refer to Terminal Setting (page 47) for the details of setting.
●Precautions for handling
•The connector should be removed only when the mode selection screen is displayed.
Failure, accident and malfunction can result.
-12-
No.EX※※-OML0011-C
