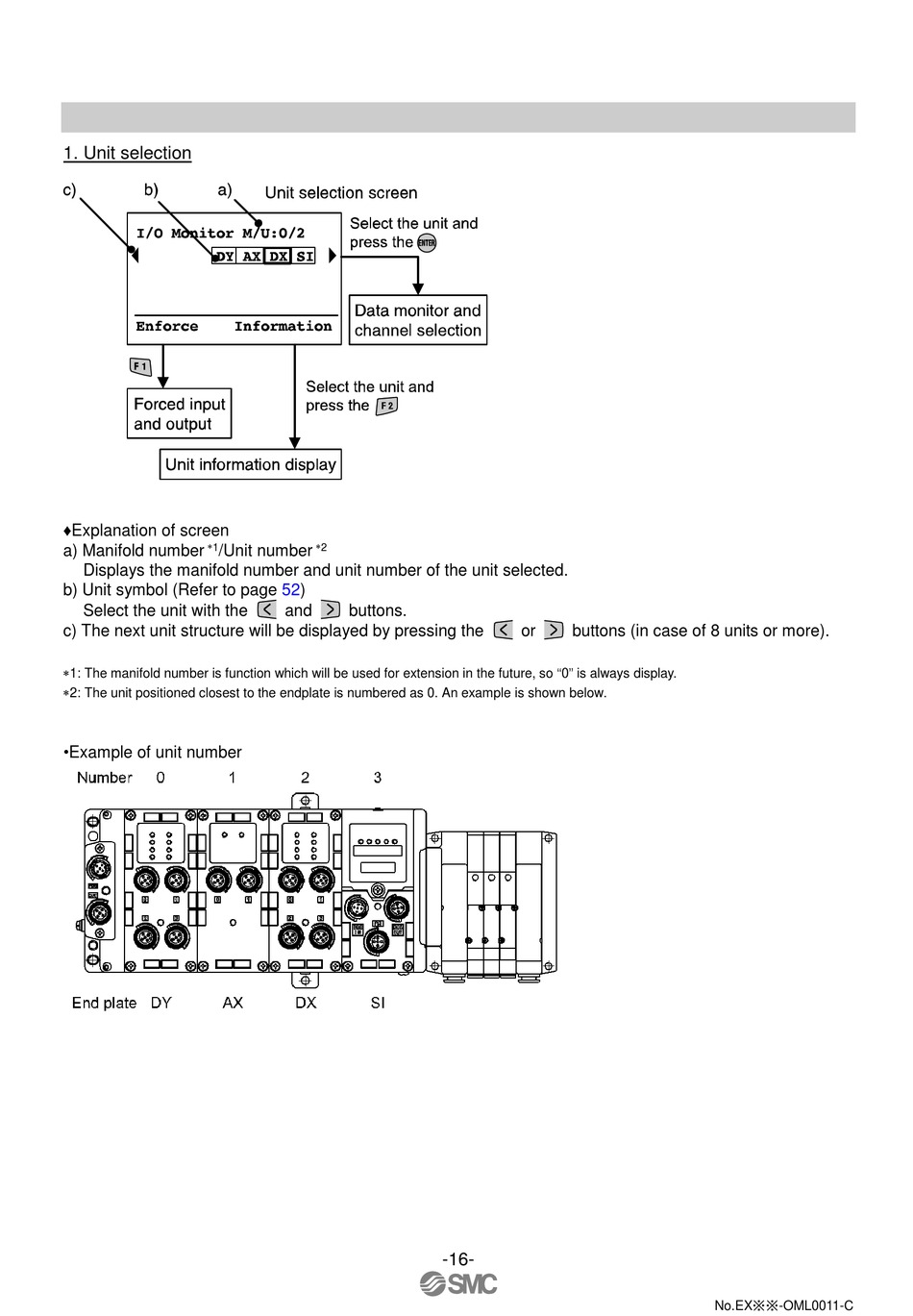

1. Unit selection
♦Explanation of screen
1
a) Manifold number
/Unit number
Displays the manifold number and unit number of the unit selected.
b) Unit symbol (Refer to page 52)
Select the unit with the
c) The next unit structure will be displayed by pressing the
1: The manifold number is function which will be used for extension in the future, so "0" is always display.
2: The unit positioned closest to the endplate is numbered as 0. An example is shown below.
•Example of unit number
2
and
buttons.
-16-
or
buttons (in case of 8 units or more).
No.EX※※-OML0011-C
