■2. Diagnosis Data
Mode levels

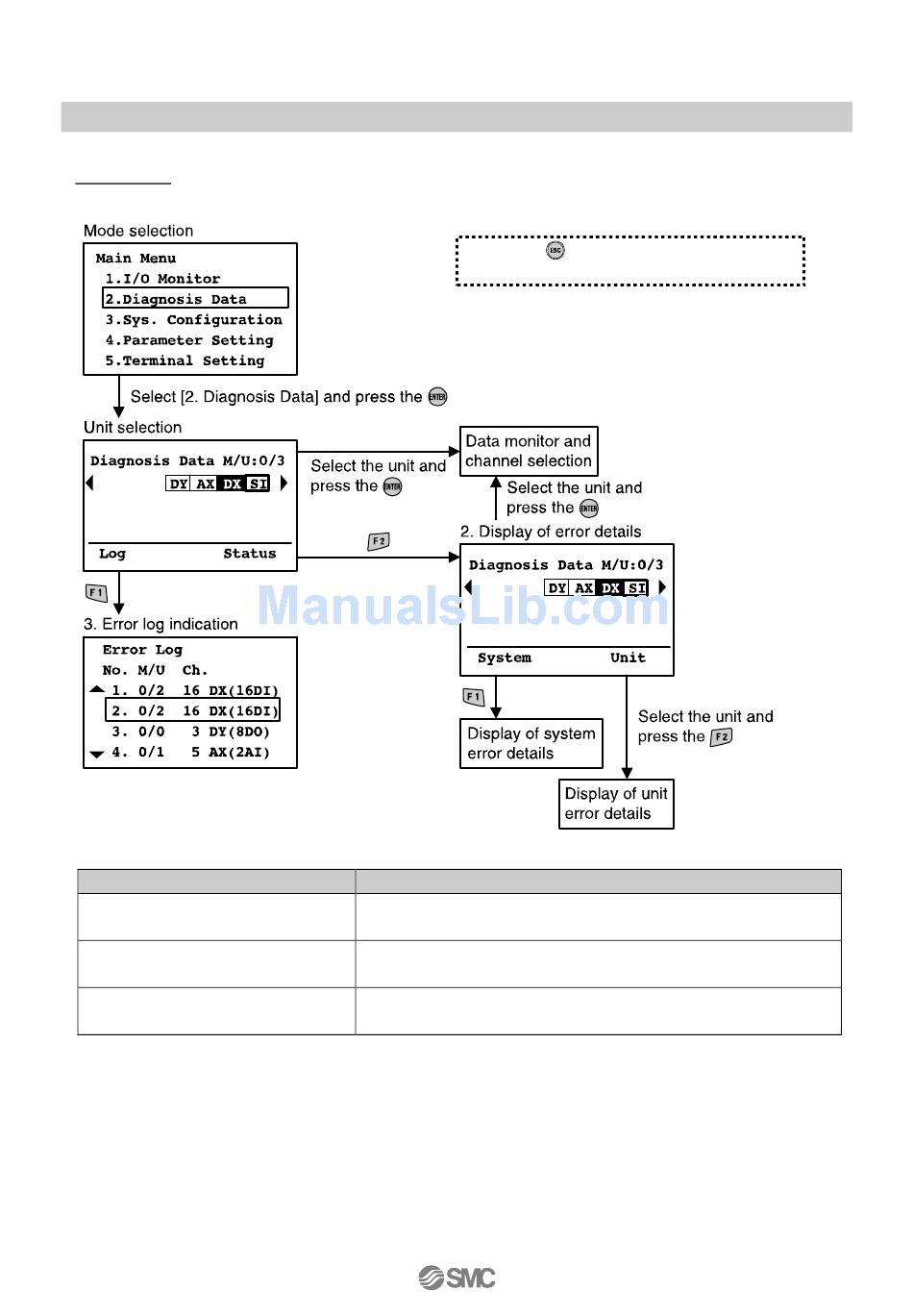

The diagnostic data check mode is composed as shown in the figure below.
Mode
1. Channel status display
2. Display of error details
3. Error log indication
Press the
to the previous screen.
1．Data monitor and channel selection
Input and output status of channels and error information are displayed.
(Refer to page 17, 18)
Diagnostic error information is displayed per system and unit in detail.
(Refer to page 25)
The latest error log of the EX600 system is displayed in the order errors
were generated (30 errors max.). (Refer to page 26)
-24-
button in each screen to return
