■1. I/O monitor
Mode levels

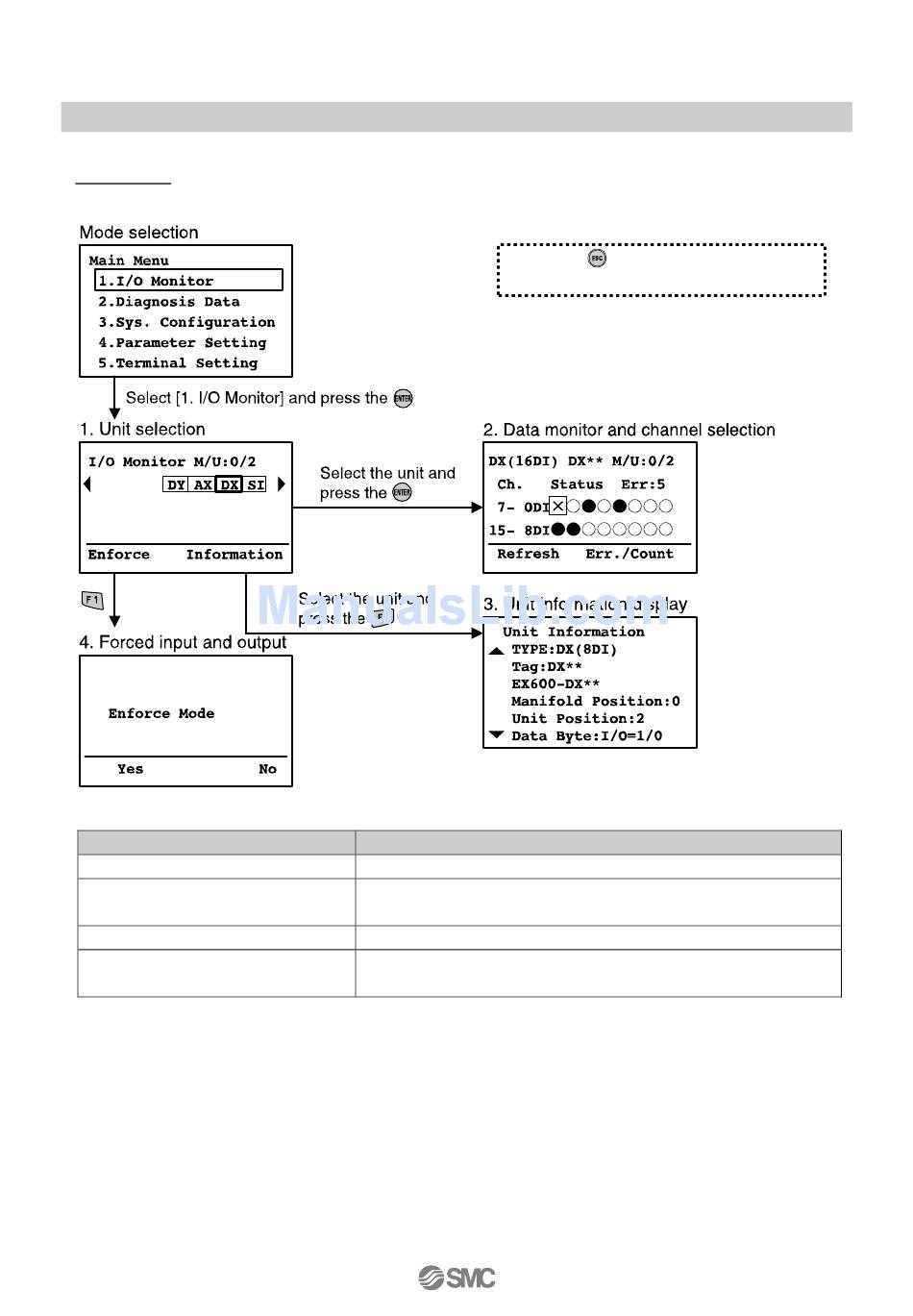

The I/O monitor mode is composed as shown in the diagram below.
Mode
1. Unit Selection
2. Data monitor and channel selection
3. Unit information display
4. Forced input and output
Press the
return to the previous screen.
Select the unit to perform the operation from 2 to 4. (Refer to page 16)
Input and output status of the unit, error information, and ON/OFF count
values are displayed. (Refer to page 17)
The information of the unit selected is displayed. (Refer to page 19)
The input and output signal of the unit is forcibly operated with the
Handheld Terminal. (Refer to page 20)
-15-
button in each screen to
Outline
No.EX※※-OML0011-C
