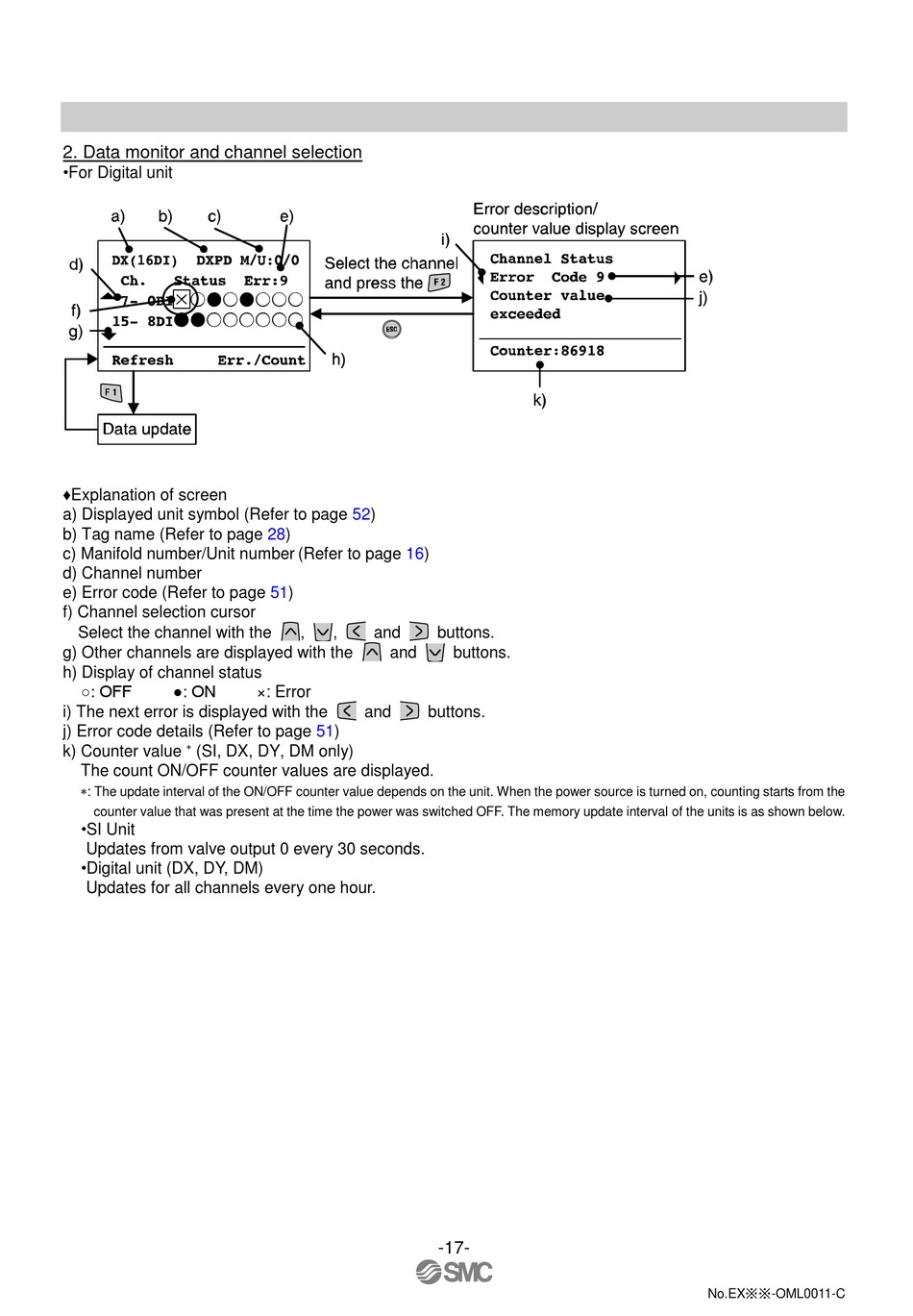

2. Data monitor and channel selection
•For Digital unit
♦Explanation of screen
a) Displayed unit symbol (Refer to page 52)
b) Tag name (Refer to page 28)
c) Manifold number/Unit number (Refer to page 16)
d) Channel number
e) Error code (Refer to page 51)
f) Channel selection cursor
Select the channel with the
g) Other channels are displayed with the
h) Display of channel status
○: OFF ●: ON
i) The next error is displayed with the
j) Error code details (Refer to page 51)

k) Counter value (SI, DX, DY, DM only)
The count ON/OFF counter values are displayed.
: The update interval of the ON/OFF counter value depends on the unit. When the power source is turned on, counting starts from the
counter value that was present at the time the power was switched OFF. The memory update interval of the units is as shown below.
•SI Unit
Updates from valve output 0 every 30 seconds.
•Digital unit (DX, DY, DM)
Updates for all channels every one hour.
, , and
and
×: Error
and
buttons.
buttons.
buttons.
